MS3106A22-7P

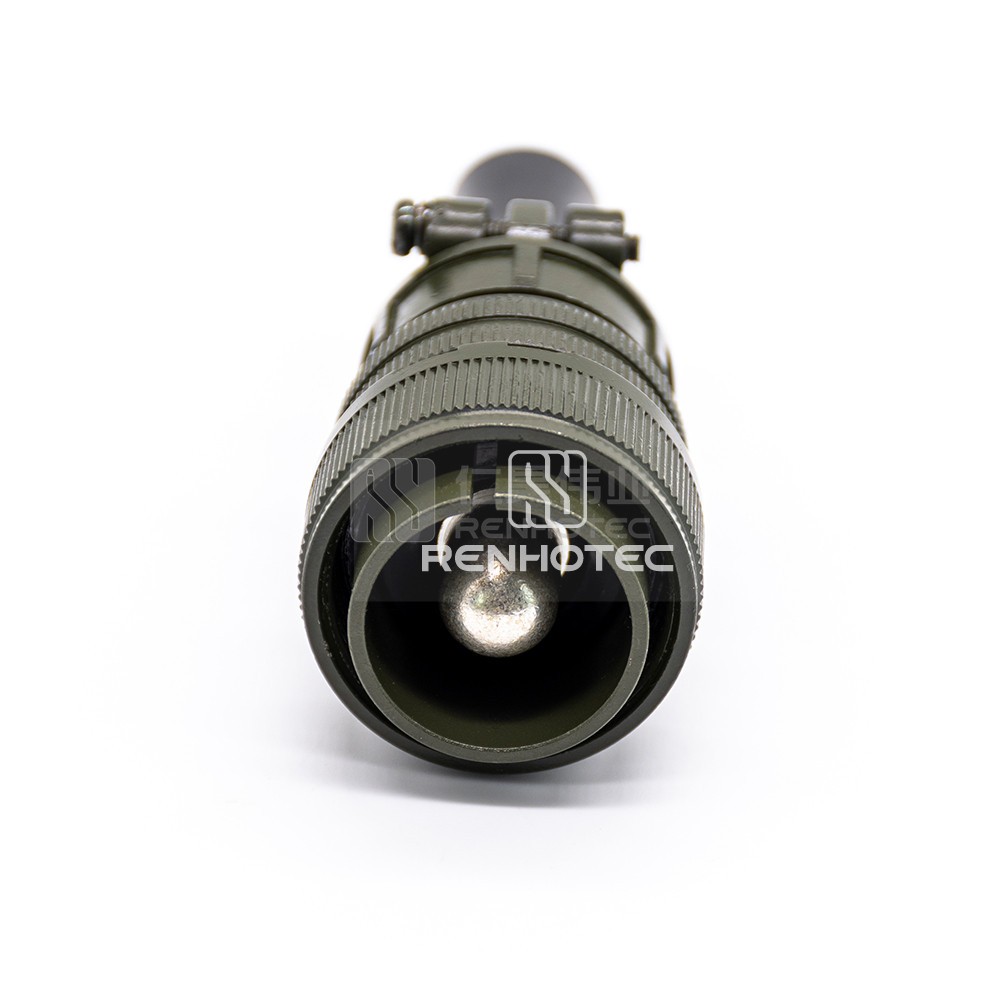

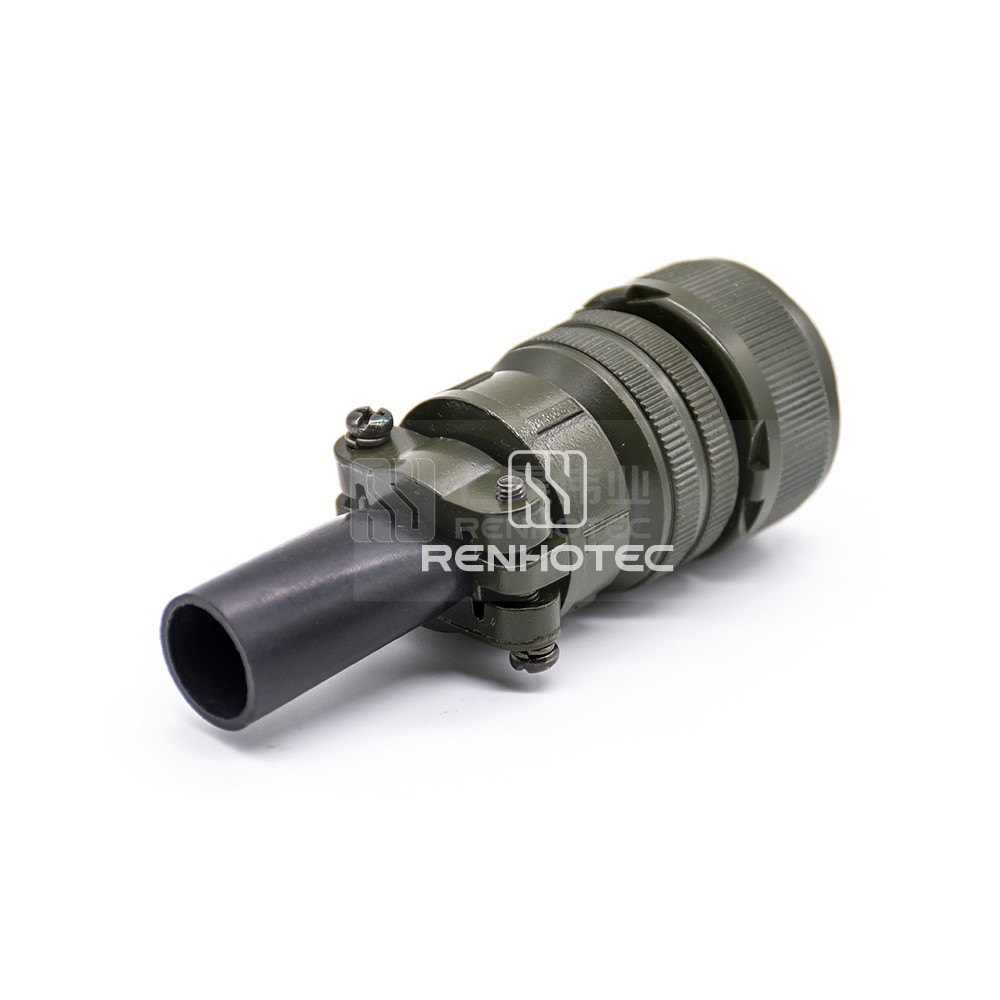

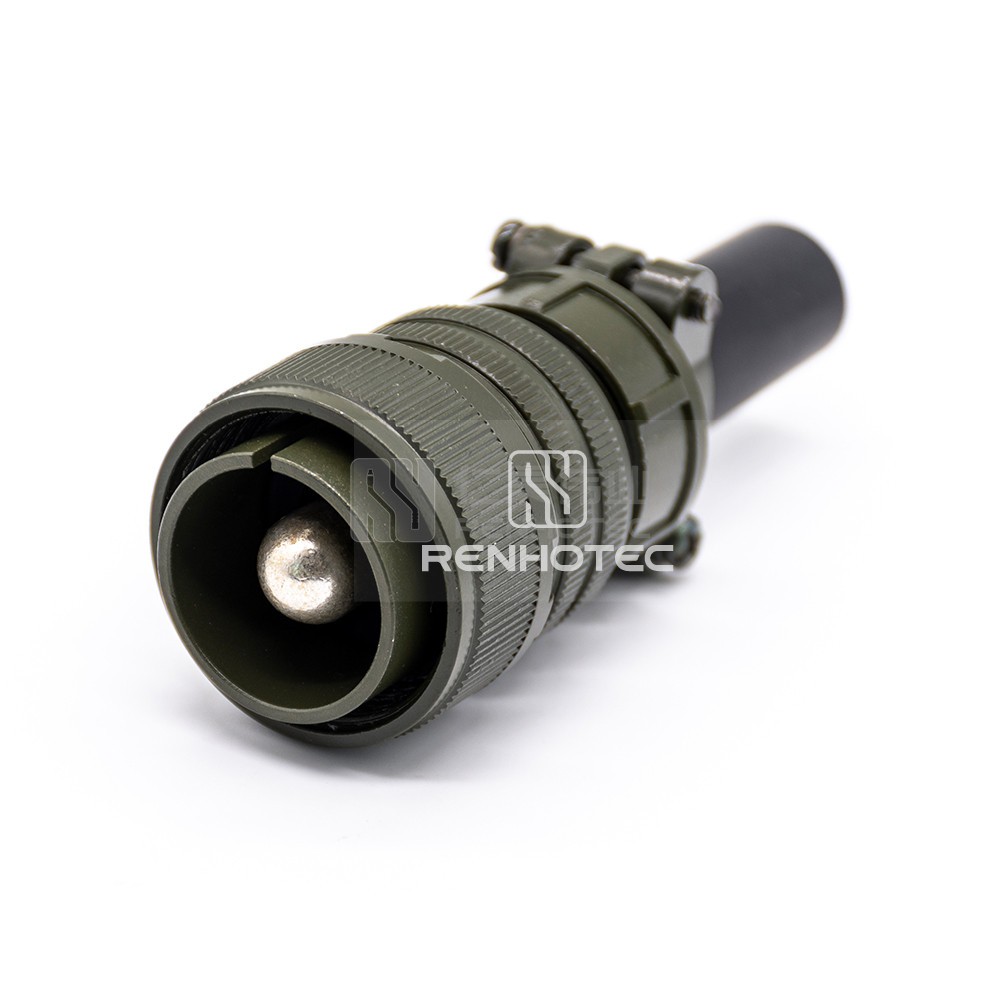

Threaded MS3106A22-7P 1Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Securely connect wires with this Threaded MS3106A22-7P 1Pin Male Straight Plug Solder Cup. Its straight design and solder cup feature ensure a strong and reliable connection.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions1
    Contact Arrangements22-7
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size22

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range2-0AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current120A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
