Products > MIL Spec Connector > Threaded MS3106A24-28P 24Pin Male Straight Plug Solder Cup

MS3106A24-28P

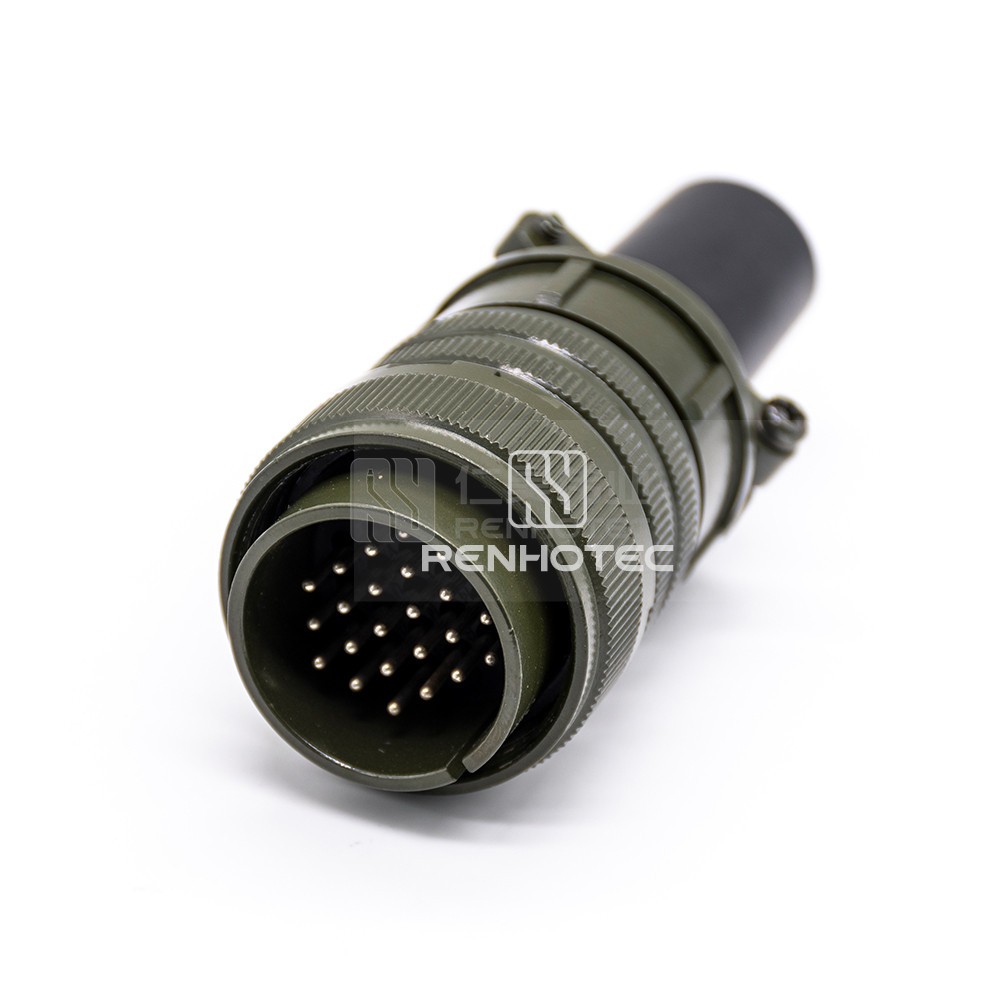

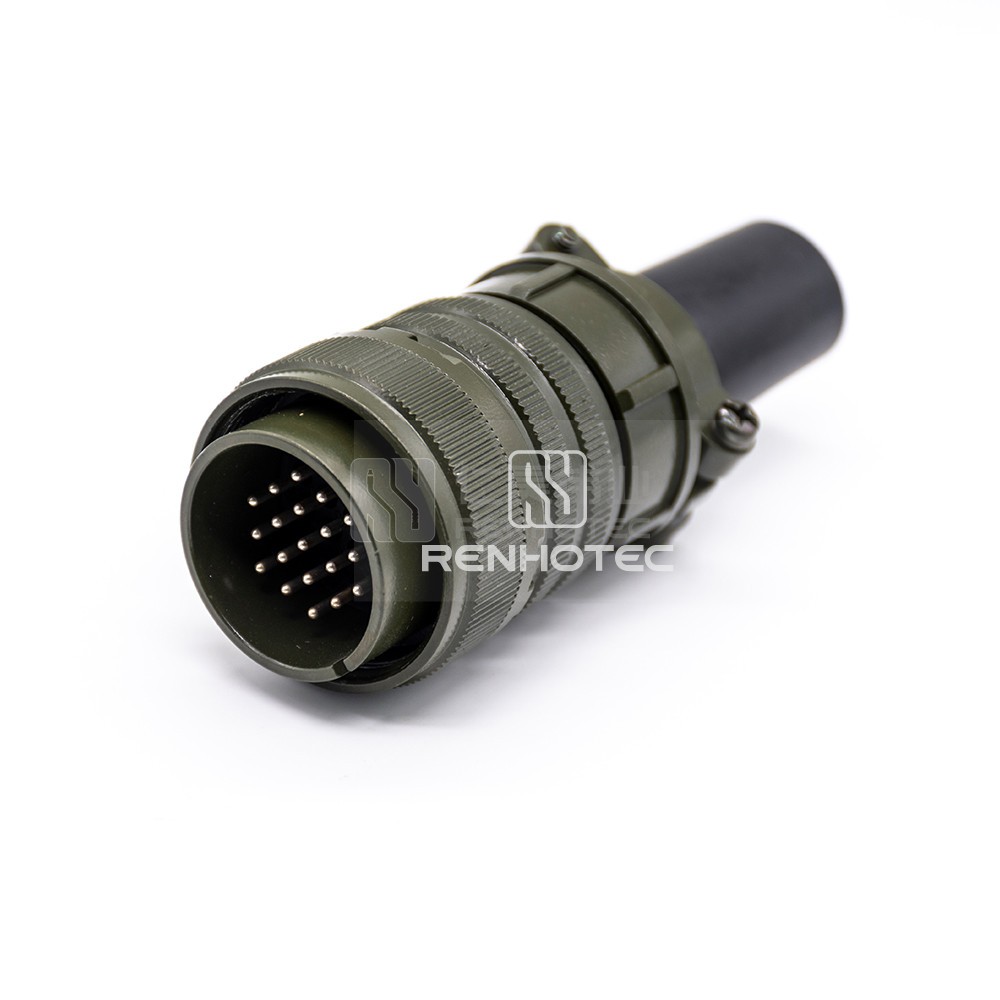

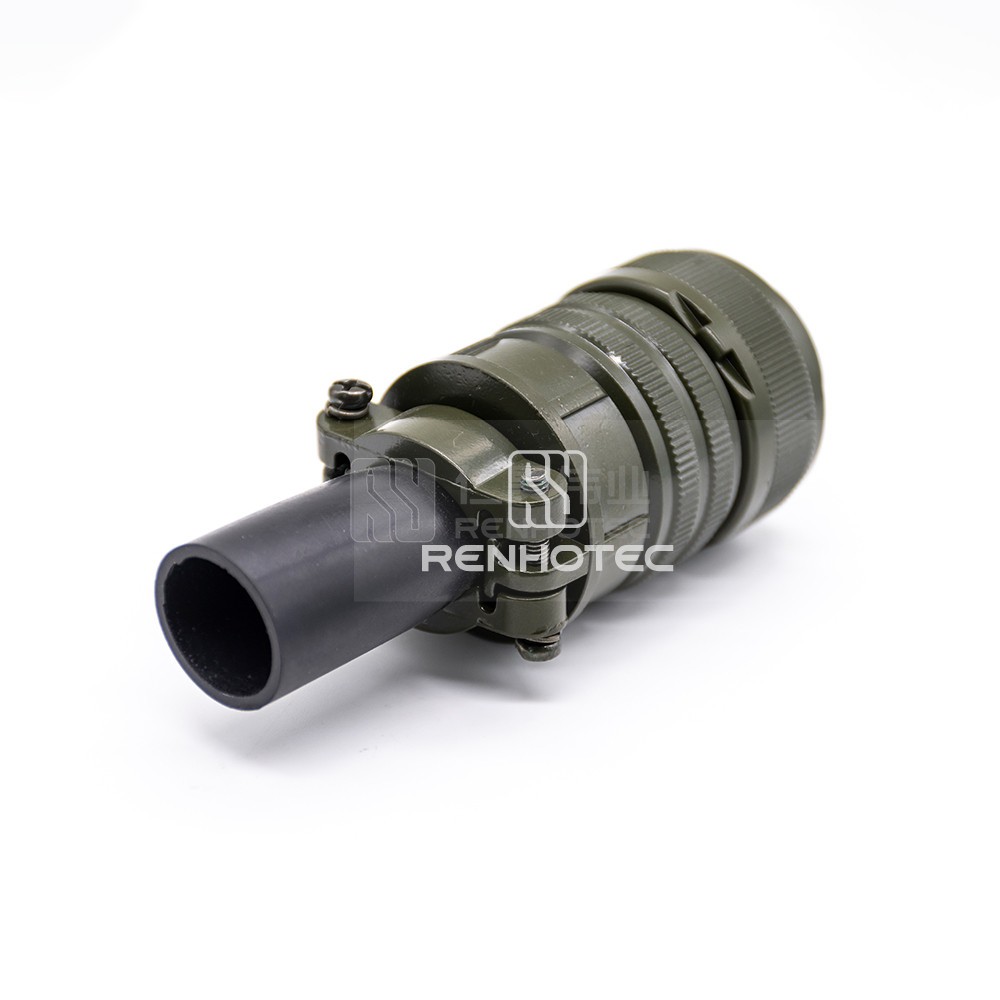

Threaded MS3106A24-28P 24Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality threaded MS3106A24-28P 24-pin male straight plug with solder cup connections. Ideal for secure and reliable electrical connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions24
    Contact Arrangements24-28
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size24

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishGold

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-55°C ~ + 125°C

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V
