Products > MIL Spec Connector > Threaded MS3106A28-16P 20Pin Male Straight Plug Solder Cup

MS3106A28-16P

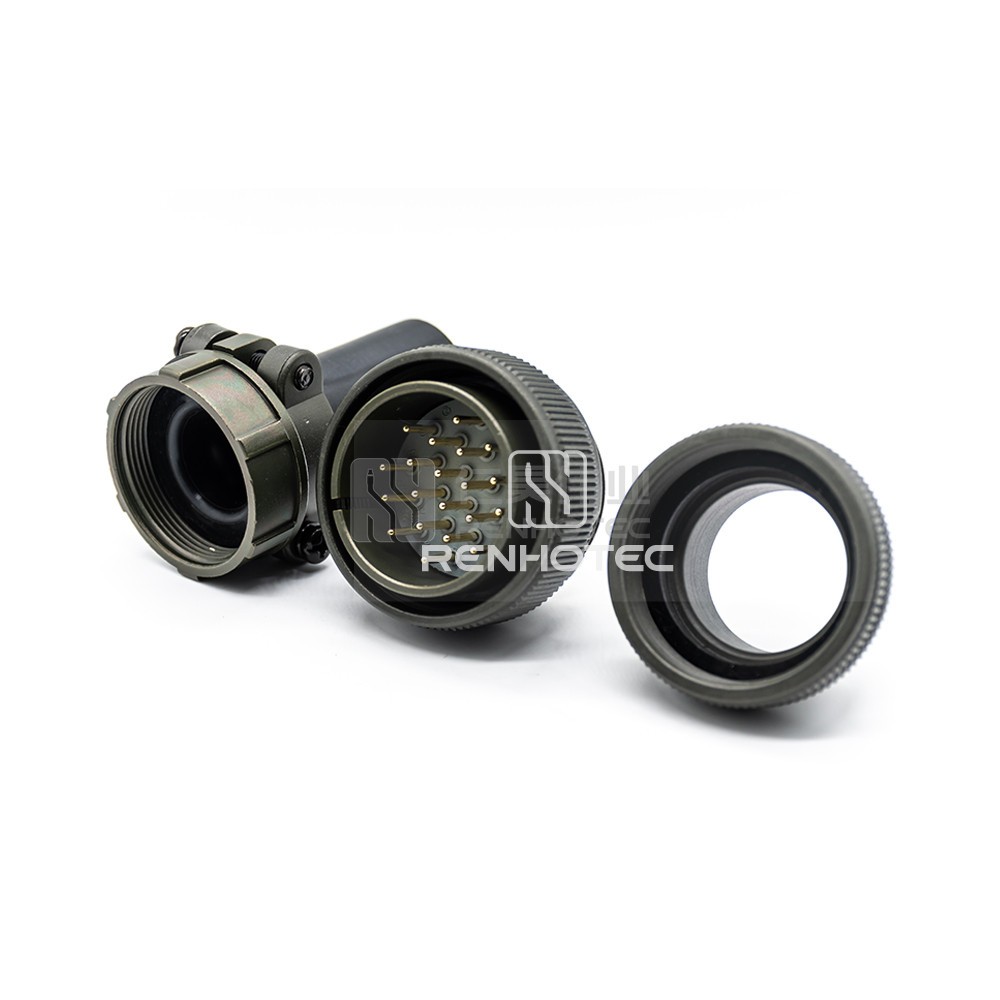

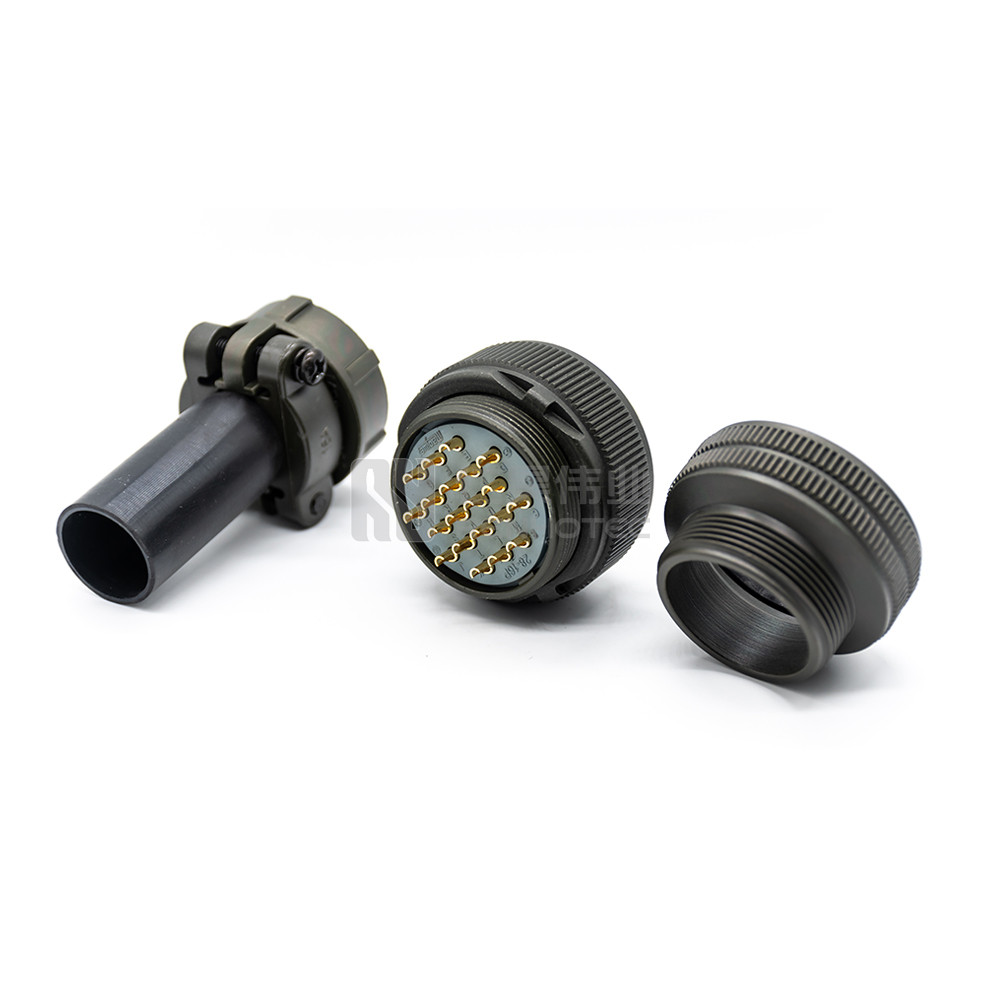

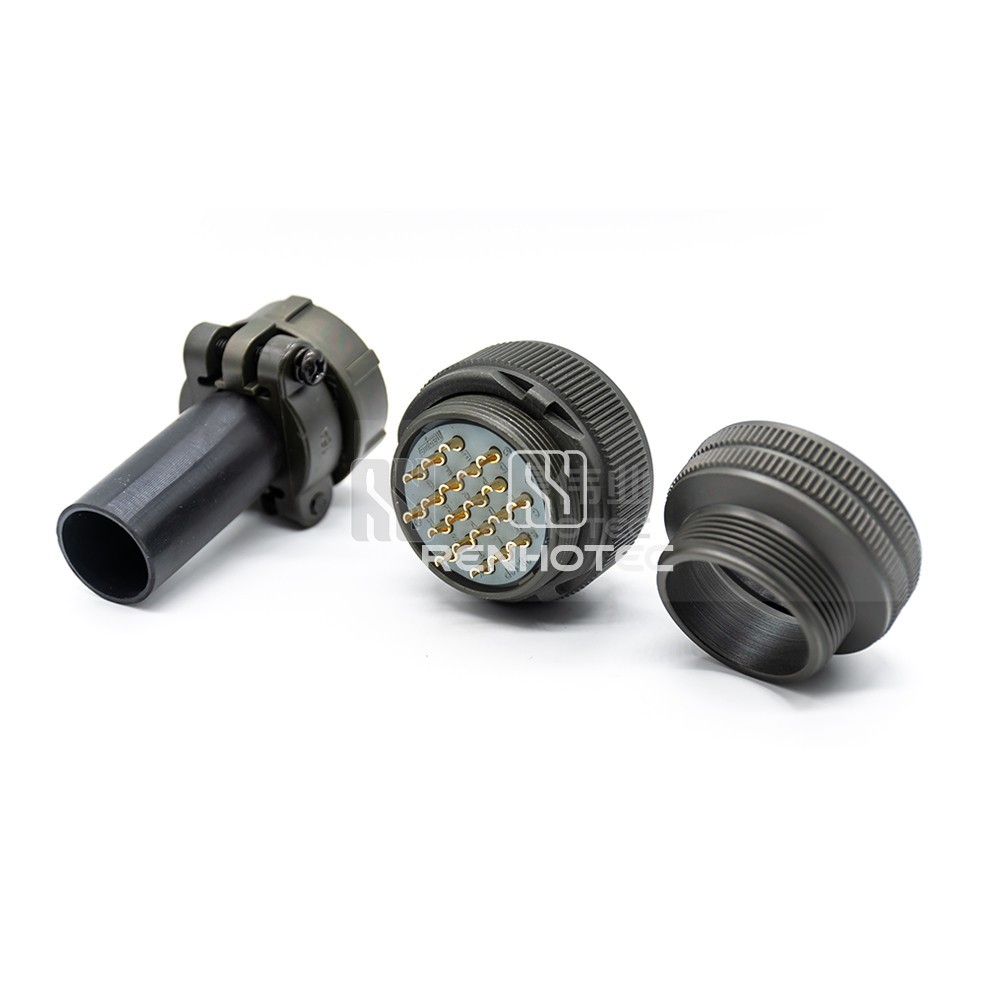

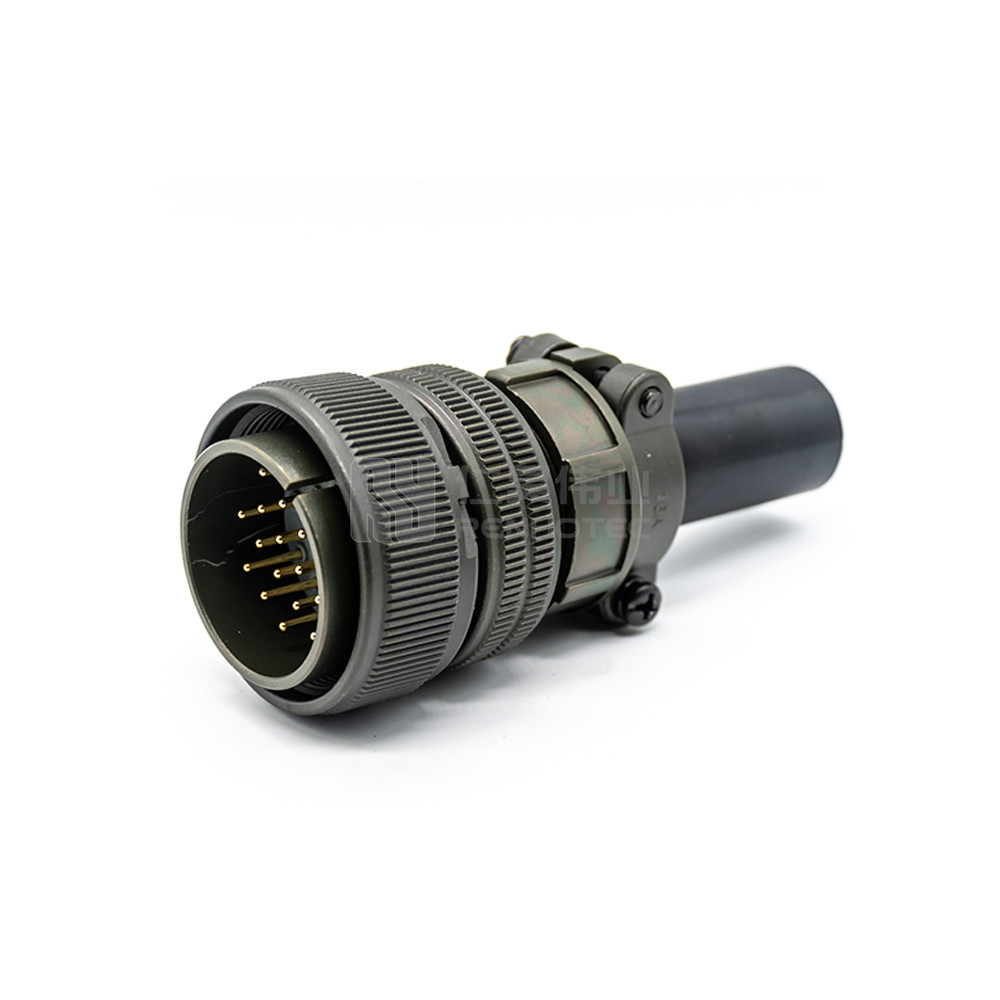

Threaded MS3106A28-16P 20Pin Male Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This threaded MS3106A28-16P 20-pin male straight plug solder cup is designed to provide a secure and reliable connection for your electrical components. Ideal for industrial applications, this plug ensures a sturdy and durable connection.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions20
    Contact Arrangements28-16
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size28

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
