Products > MIL Spec Connector > Threaded MS3106A28-21S 37Pin Female Straight Plug Solder Cup

MS3106A28-21S

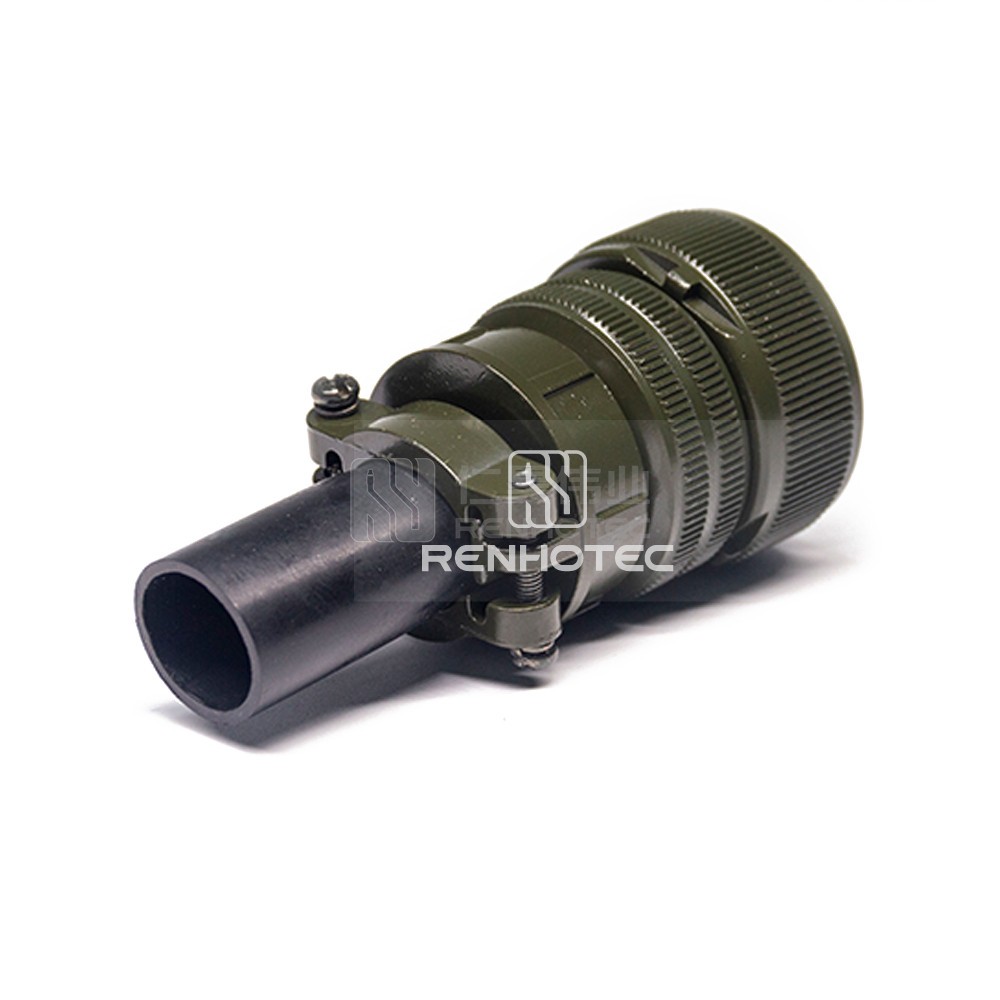

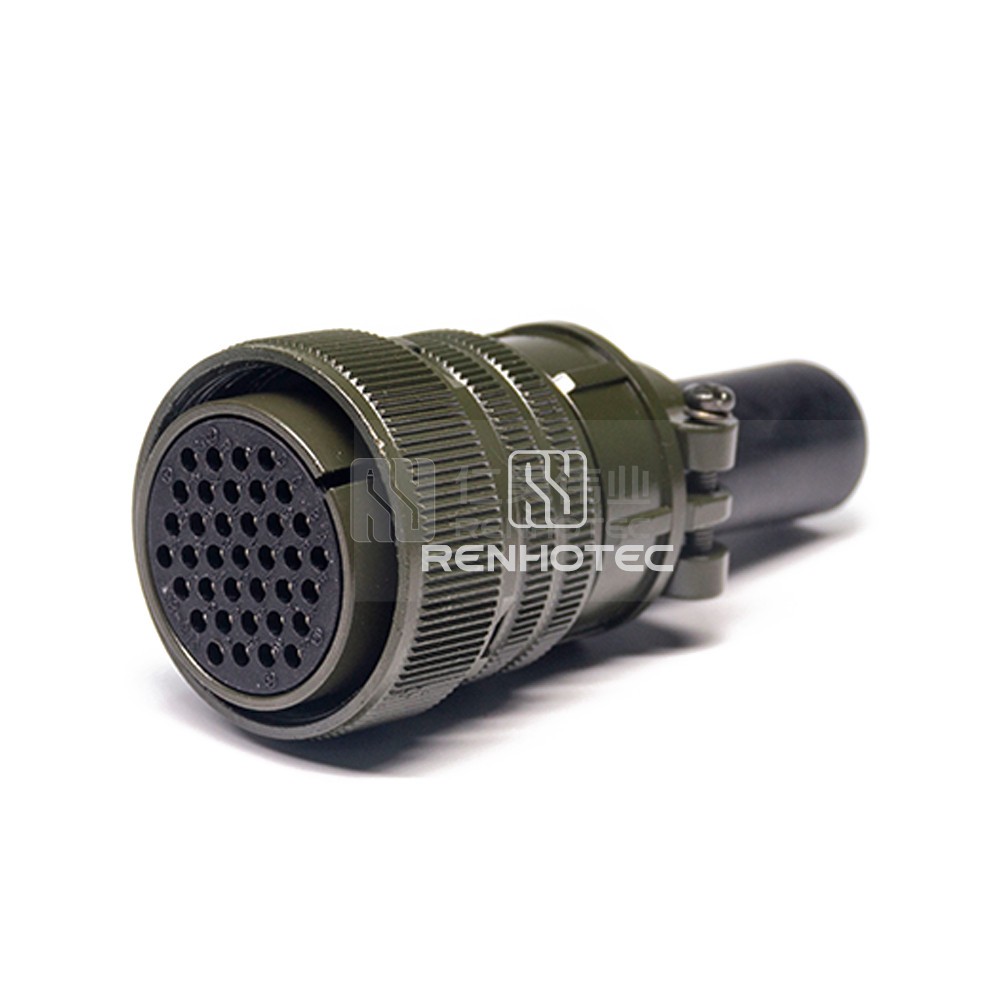

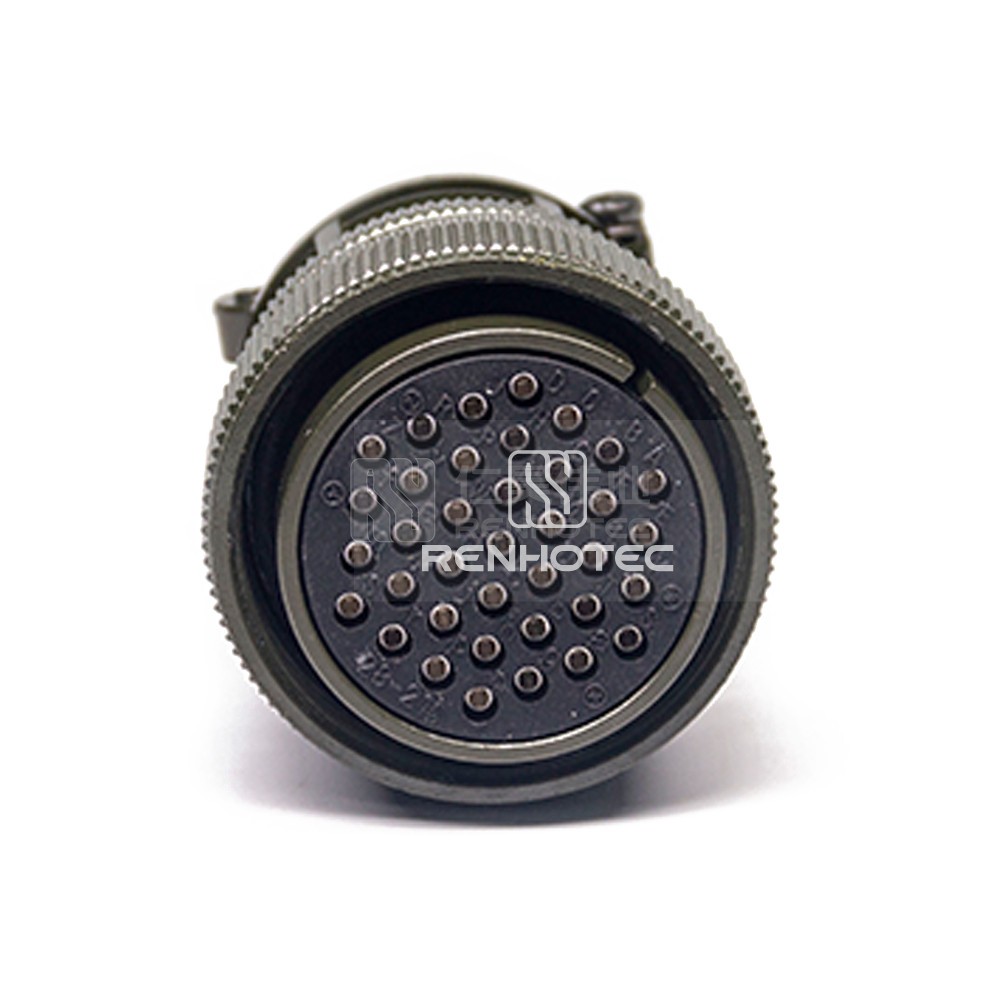

Threaded MS3106A28-21S 37Pin Female Straight Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    High-quality threaded MS3106A28-21S 37Pin female straight plug with solder cup connections, ideal for efficient and reliable electrical connections in various applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions37
    Contact Arrangements28-21
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size28

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    RENHOTEC Mil-C-5015 Catalog [EN] Download
    Каталог RENHOTEC Mil-C-5015 [RU] Download
    MS5015 Test Report Download
