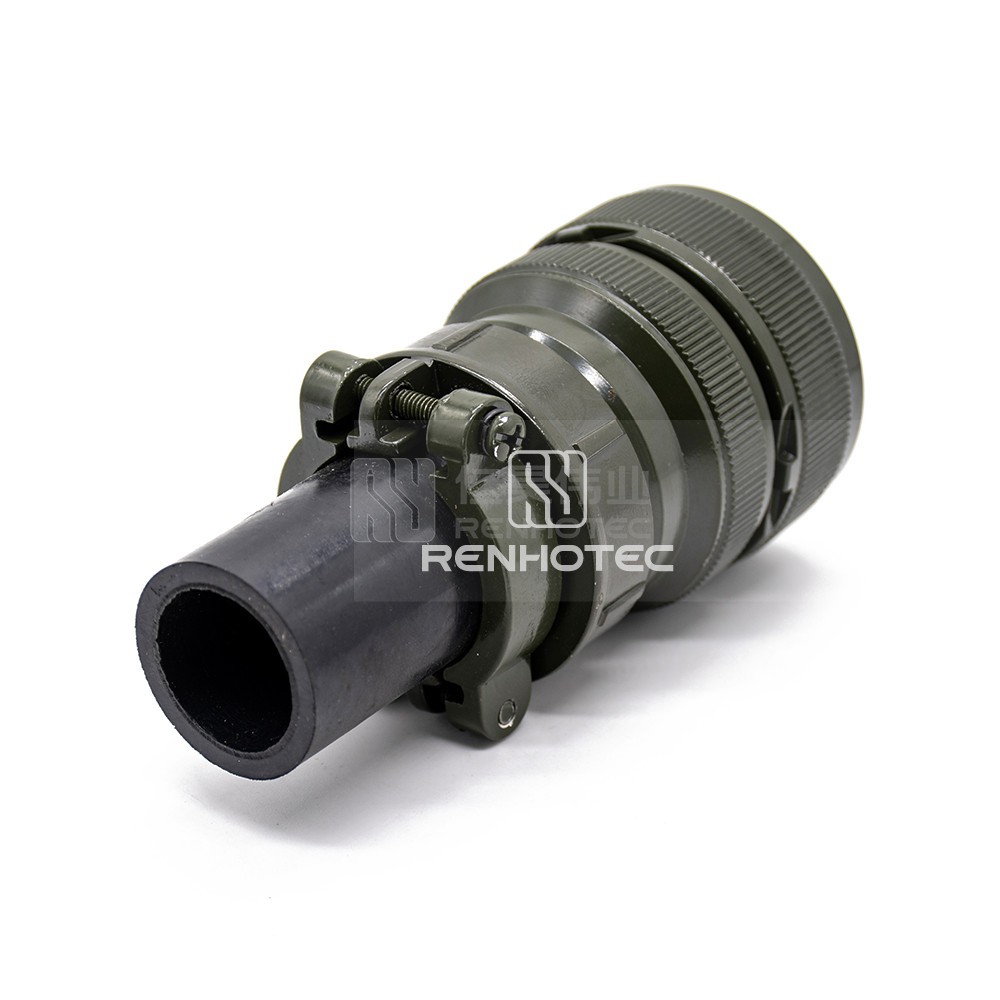

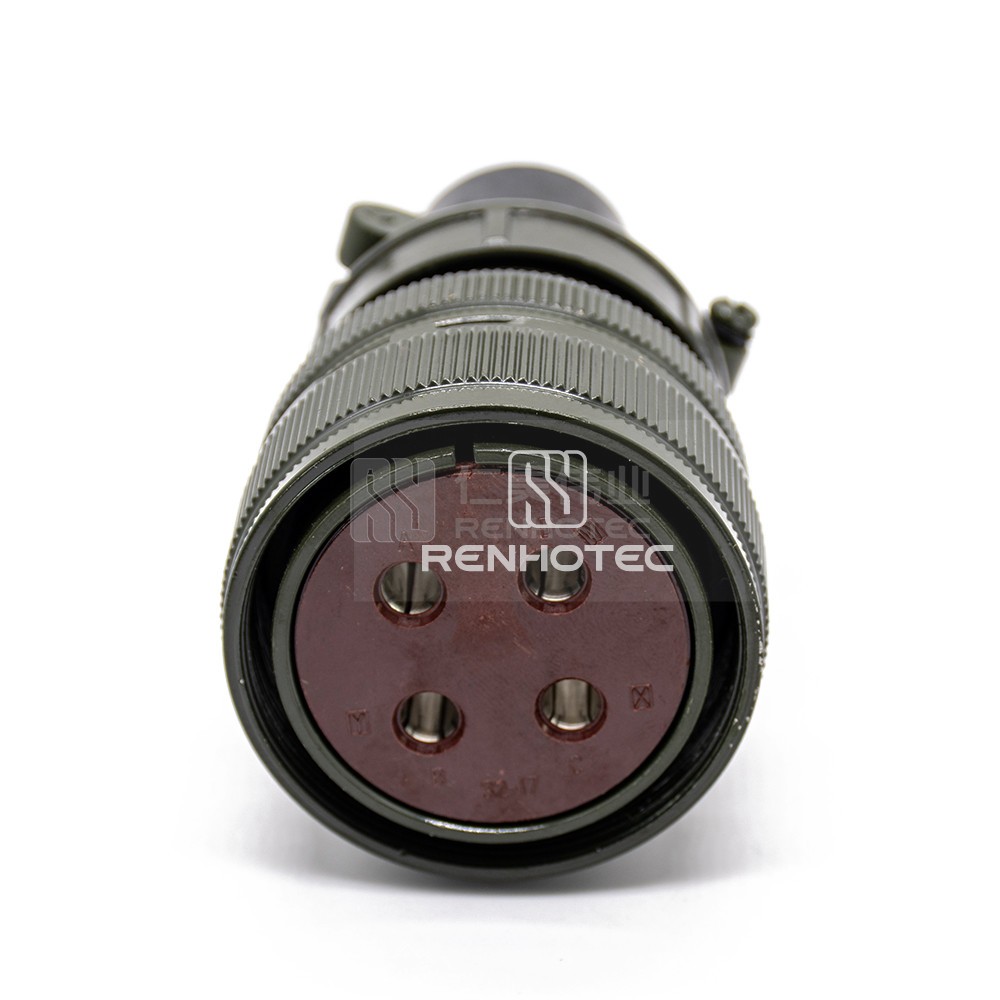

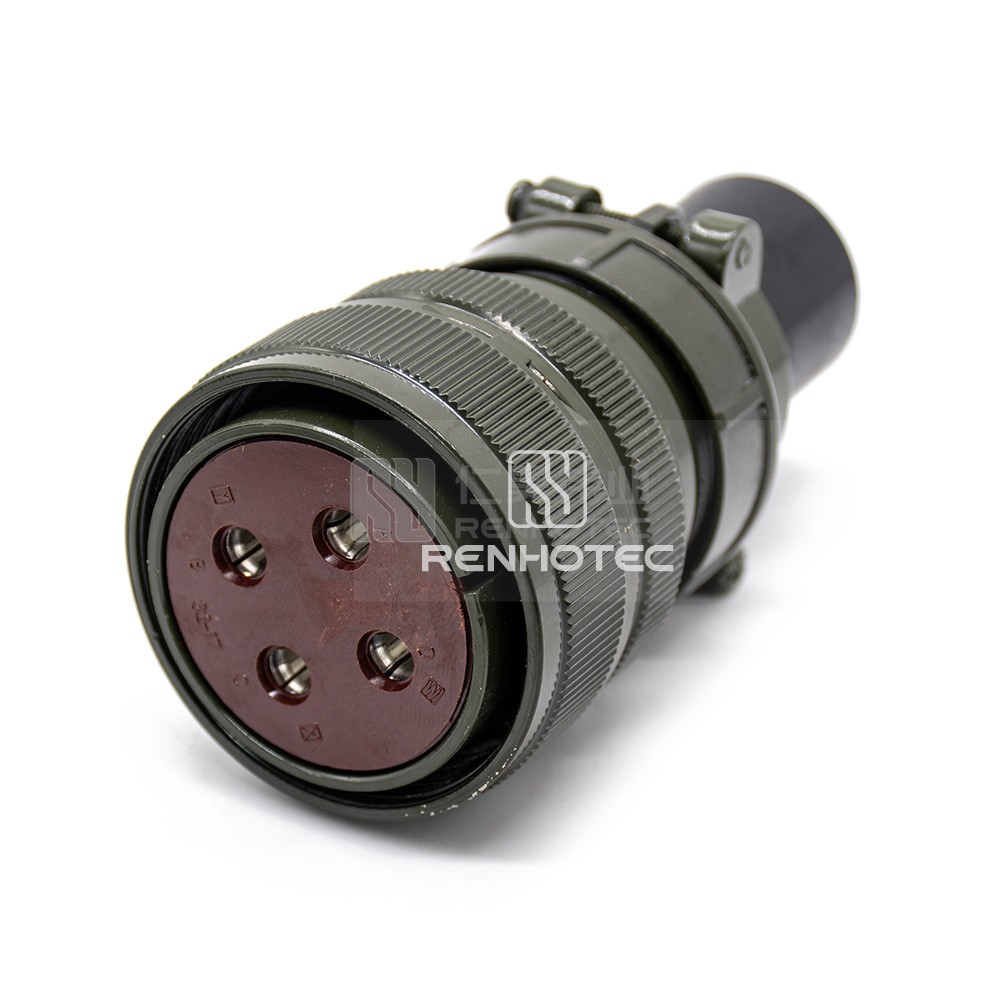

High-quality 4-pin female straight plug solder cup designed to provide secure and reliable connections. Compatible with MS3106A32-17S connectors.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 4 |
Contact Arrangements | 32-17 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 32 |
Mechanical
Fastening Type | Threaded |
Mounting Type | Cable Type |
Wire Gauge or Range | 6-4AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Silver |
Electrical
Shielding | Unshielded |
Rated Current | 80A |
Rated Voltage | 500V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
MS5015 Test Report | Download |
