MS3108A20-16S

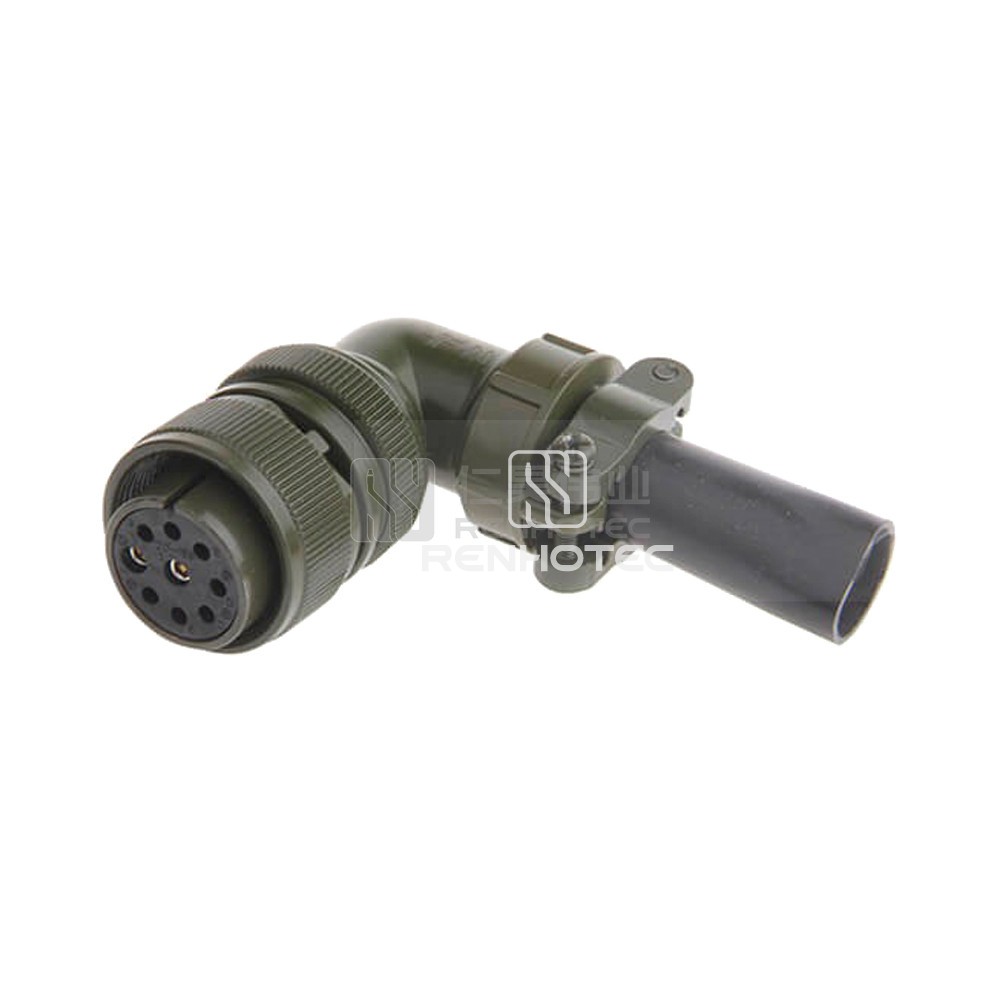

Threaded MS3108A20-16S 9Pin Female Right Angle Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This threaded 9-pin female right angle plug solder cup is designed for secure and reliable connections in electronic applications. The MS3108A20-16S model provides a durable solution for your soldering needs.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions9
    Contact Arrangements20-16
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size20

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range14-12AWG/20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current30A/15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
