MS3108A22-23S

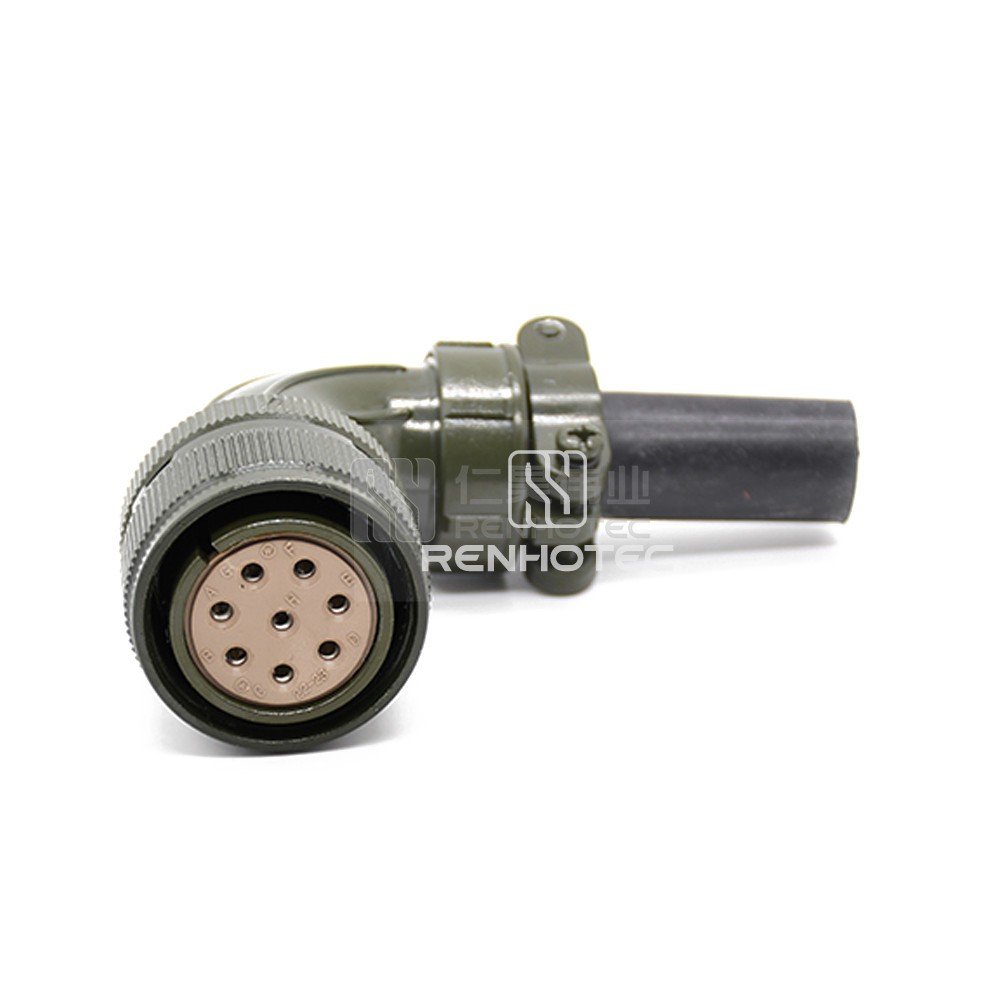

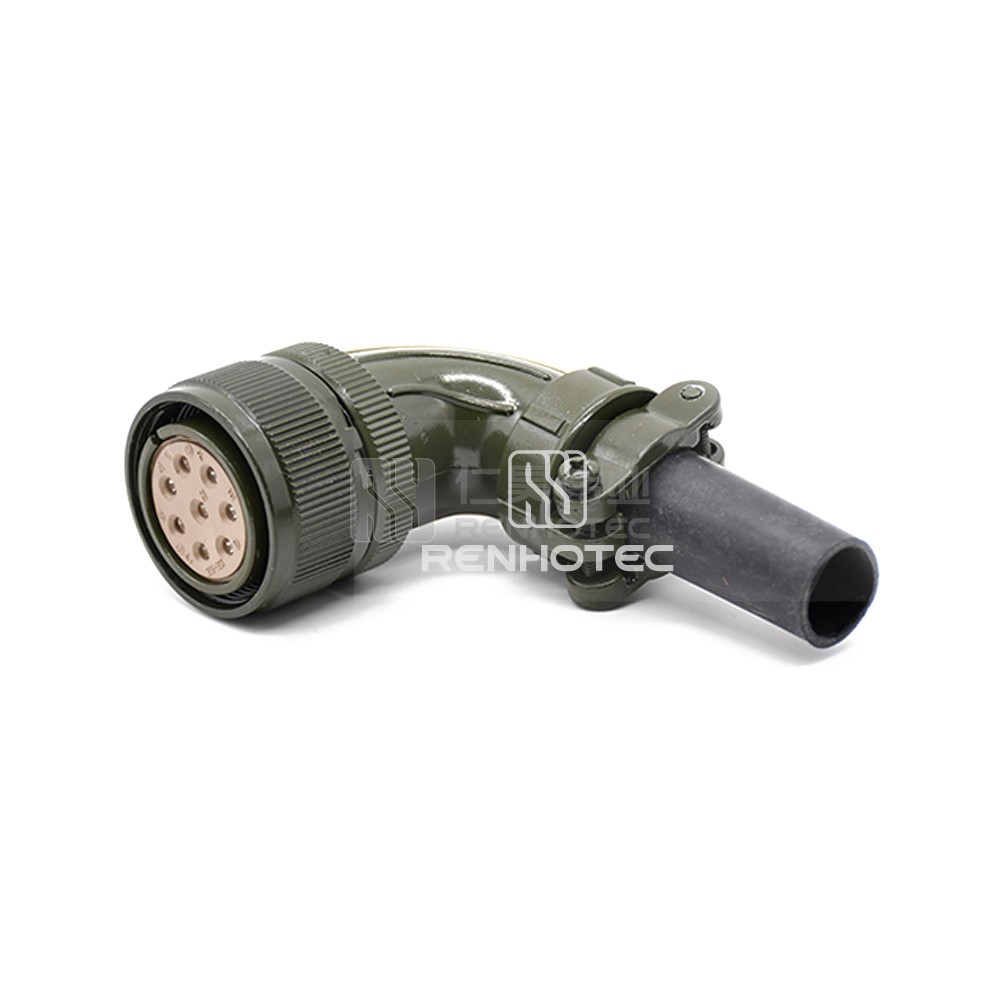

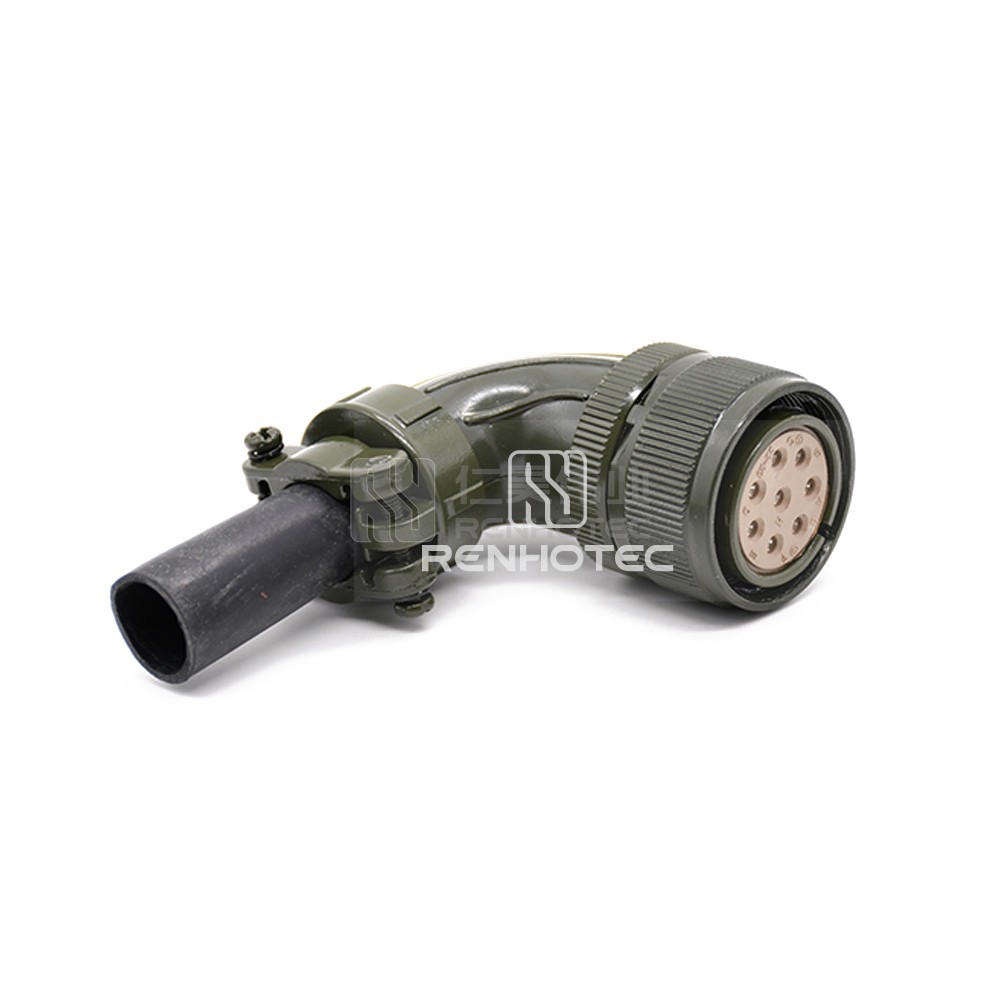

Threaded MS3108A22-23S 8Pin Female Right Angle Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Get the Threaded MS3108A22-23S 8Pin Female Right Angle Plug Solder Cup for a secure and reliable connection. Designed with solder cups for easy installation, this 8-pin plug is ideal for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions8
    Contact Arrangements22-23
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size22

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range14-12AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current30A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
