MS3108A24-11S

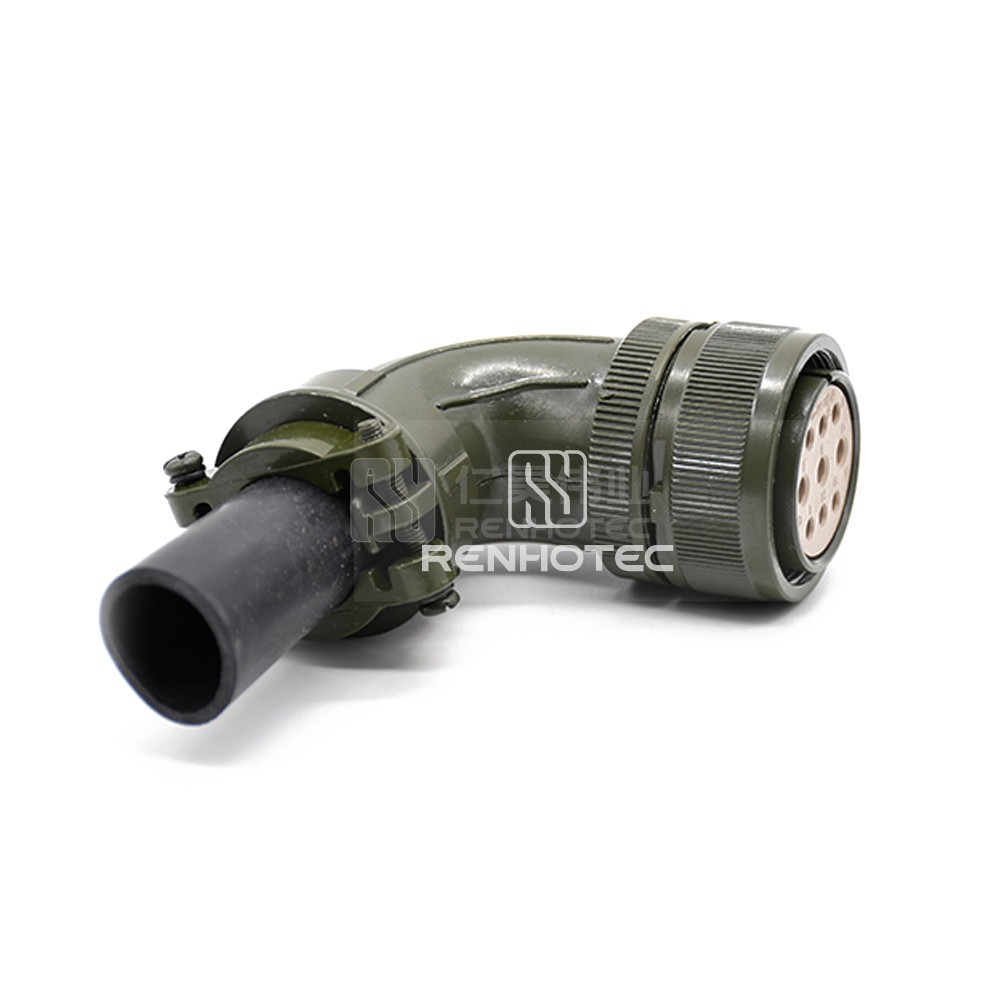

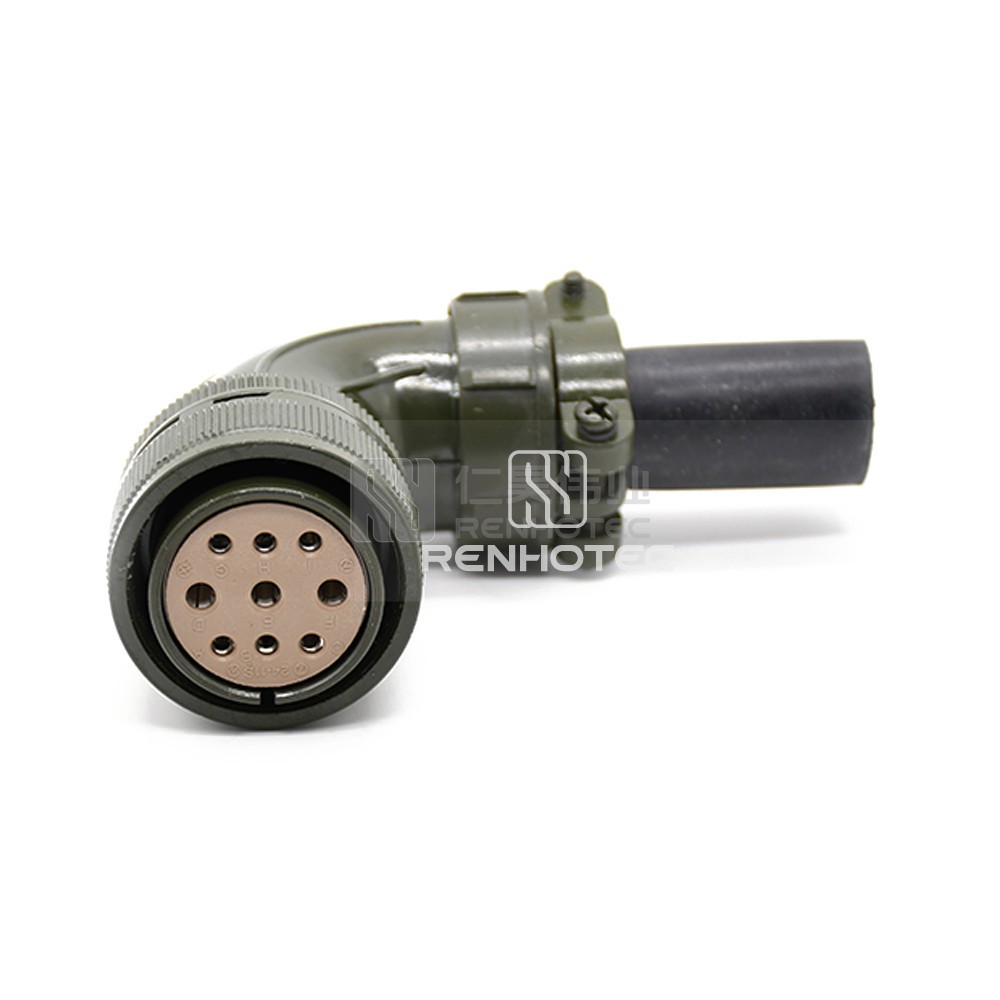

Threaded MS3108A24-11S 9Pin Female Right Angle Plug Solder Cup

Get the Threaded MS3108A24-11S 9Pin Female Right Angle Plug Solder Cup for your electrical connection needs. This plug features a secure threaded design and 9 solder cup connections for a reliable performance.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions9
    Contact Arrangements24-11
    Fastening TypeThreaded
    Mounting TypeCable Type
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size24

    Mechanical

    Wire Gauge or Range10-8AWG/14-12AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current30A/50A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
