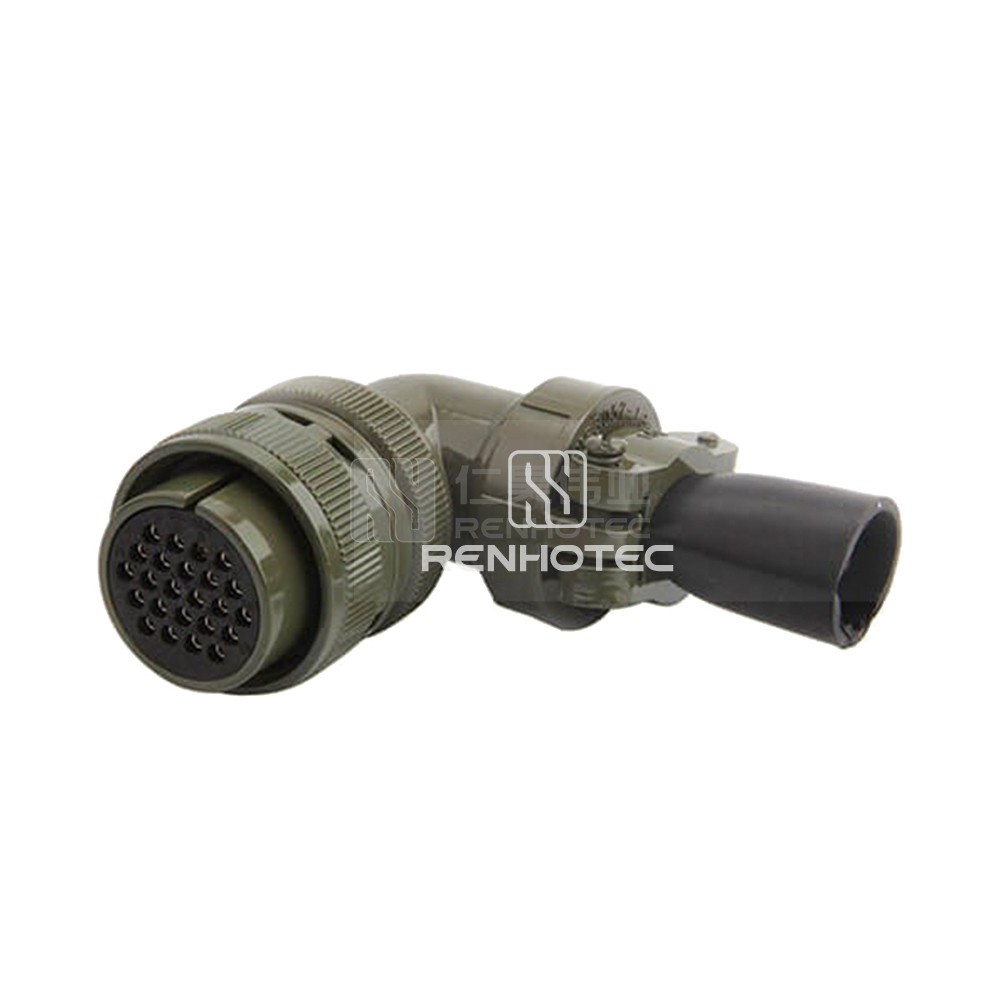

This threaded 24-pin female right angle plug with solder cup is designed for secure connections in electronic devices. Ideal for various applications that require a reliable and durable connector.
General
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Female Pin |
Number of Positions | 24 |
Contact Arrangements | 24-28 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell
Shell Size | 24 |
Mechanical
Fastening Type | Threaded |
Mounting Type | Cable Type |
Wire Gauge or Range | 20-16AWG |
Material
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Silver |
Electrical
Shielding | Unshielded |
Rated Current | 15A |
Rated Voltage | 500V |
Environmental
Operating Temperature | -55°C ~ + 125°C |
MS5015 Test Report | Download |
