MS3108A24-5S

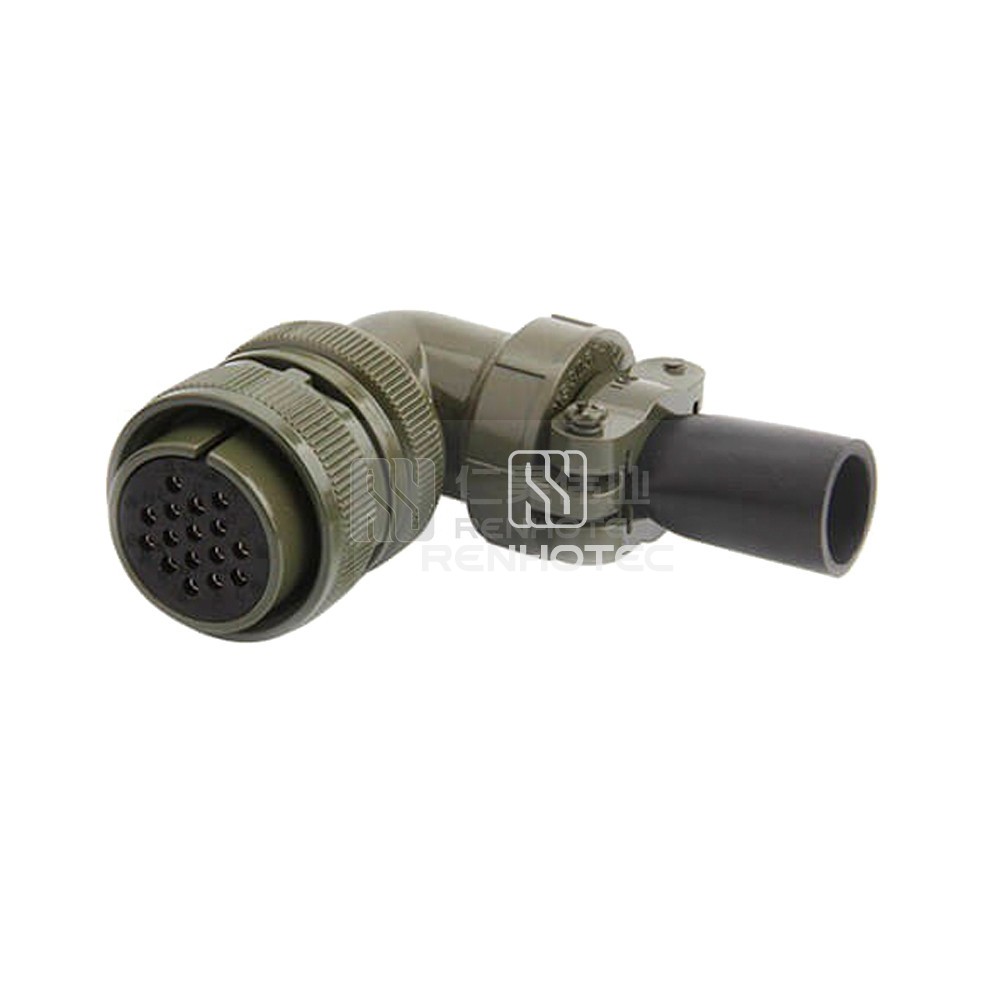

Threaded MS3108A24-5S 16Pin Female Right Angle Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality threaded MS3108A24-5S 16Pin female right angle plug with solder cup, perfect for secure and reliable connections in electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions16
    Contact Arrangements24-5
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size24

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
