MS3108A28-16P

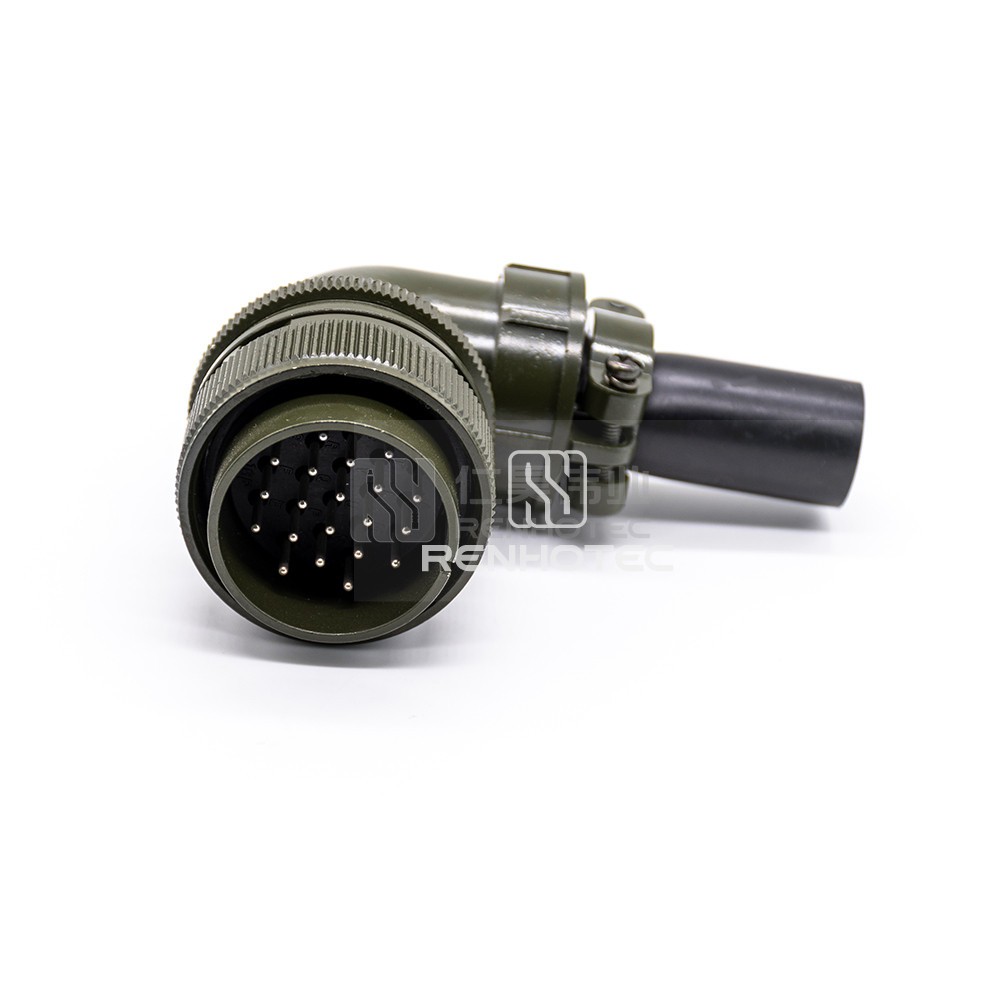

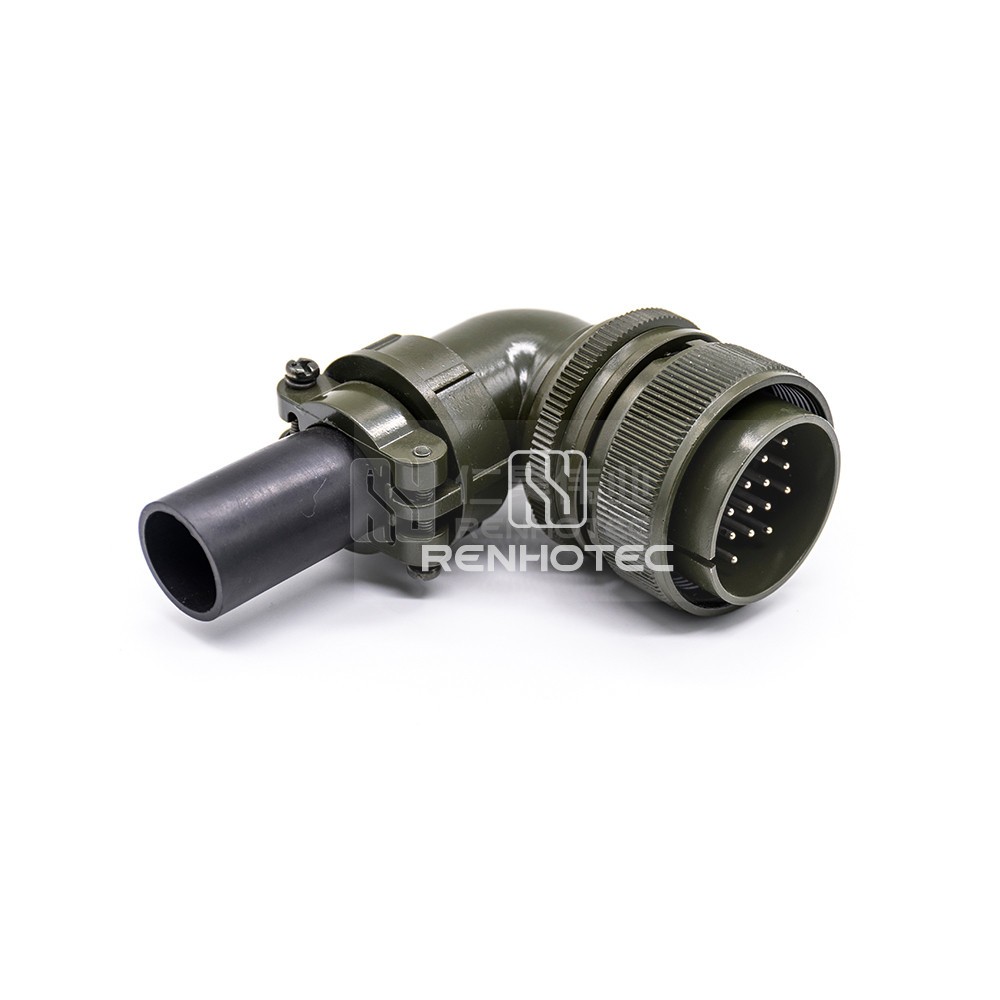

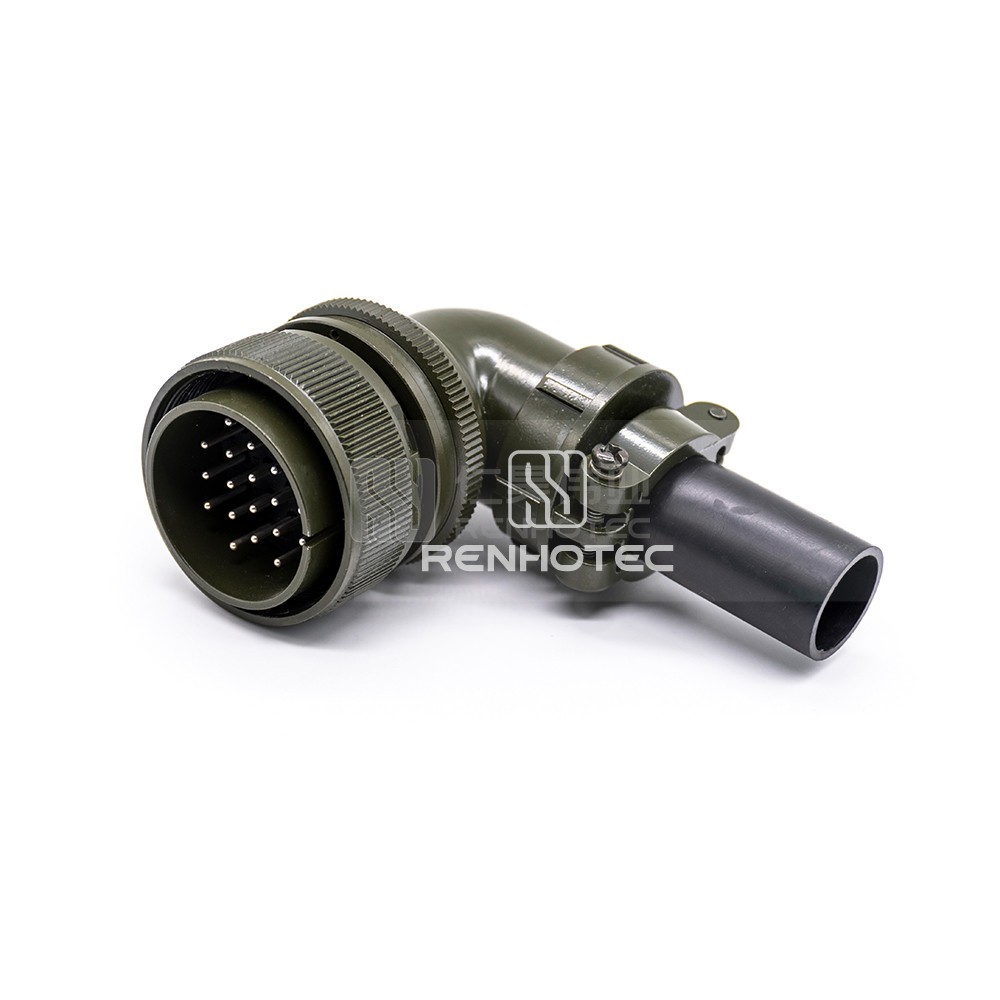

Threaded MS3108A28-16P 20Pin Male Right Angle Plug Solder Cup

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality threaded MS3108A28-16P 20-pin male right angle plug with solder cup. Ideal for secure and reliable connections in various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Electrical
    6. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions20
    Contact Arrangements28-16
    Contact TerminationSolder Cup
    KeyN
    ColorOlive Green

    Shell

    Shell Size28

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type
    Wire Gauge or Range20-16AWG

    Material

    Shell MaterialAluminum Alloy
    Shell FinishOlive Drab Cadmium
    Contact FinishSilver

    Electrical

    ShieldingUnshielded
    Rated Current15A
    Rated Voltage500V

    Environmental

    Operating Temperature-55°C ~ + 125°C
