Products > RF Cable Assembly > TNC Female Bulkhead to MCX Male Right Angle RF Cable Assembly with 50Ohm RG402 Coax
R02-T01-10019-20

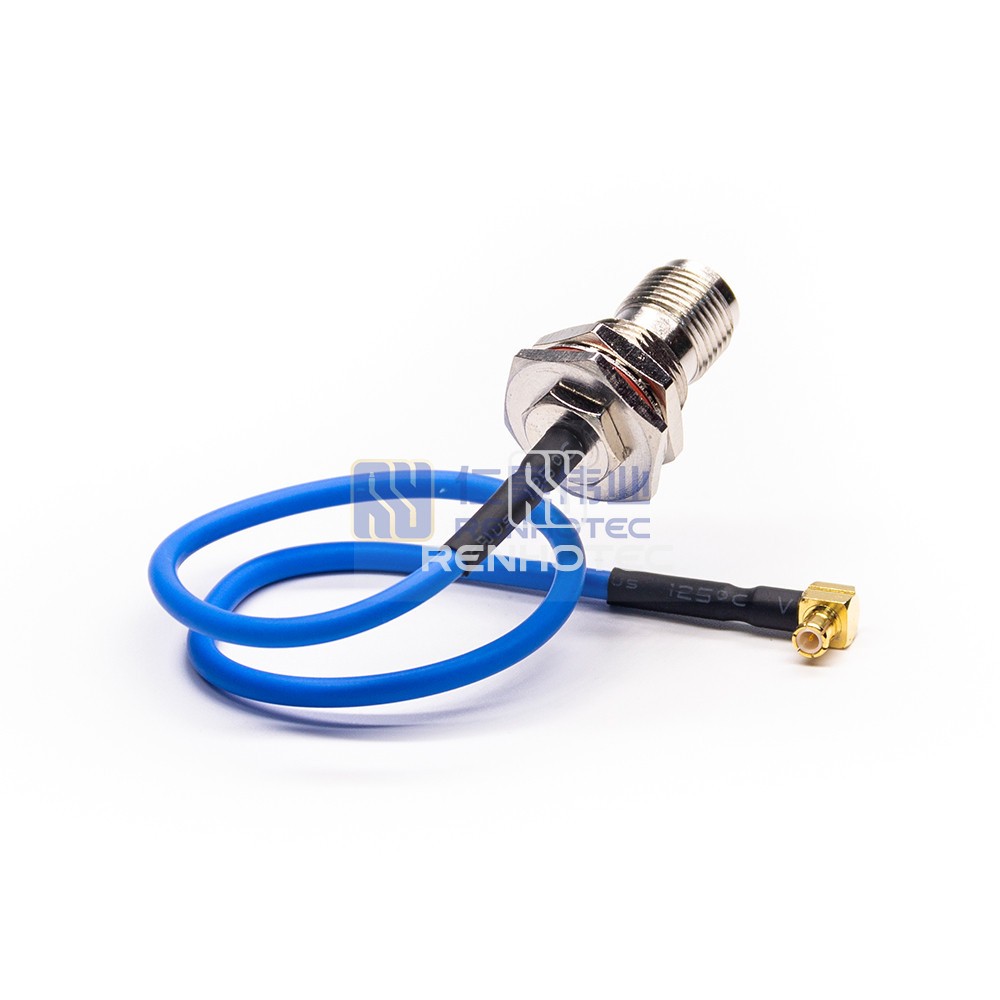

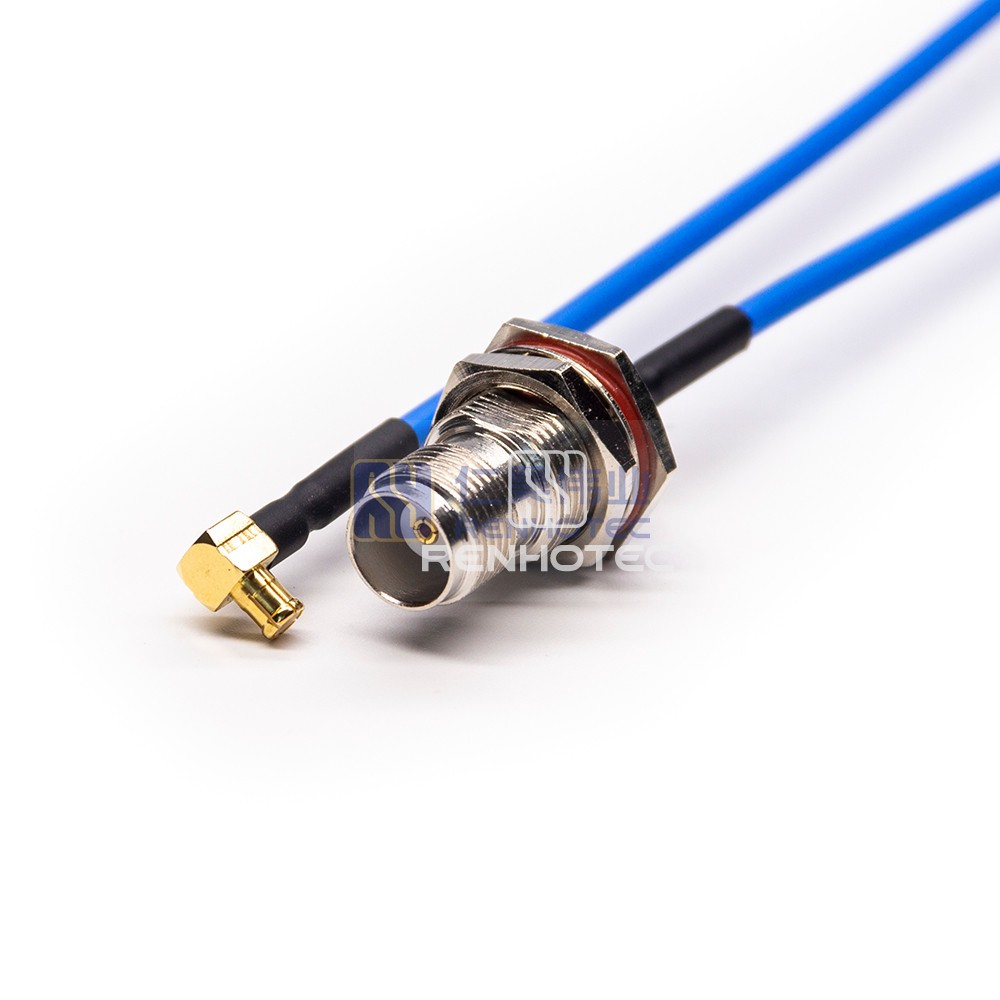

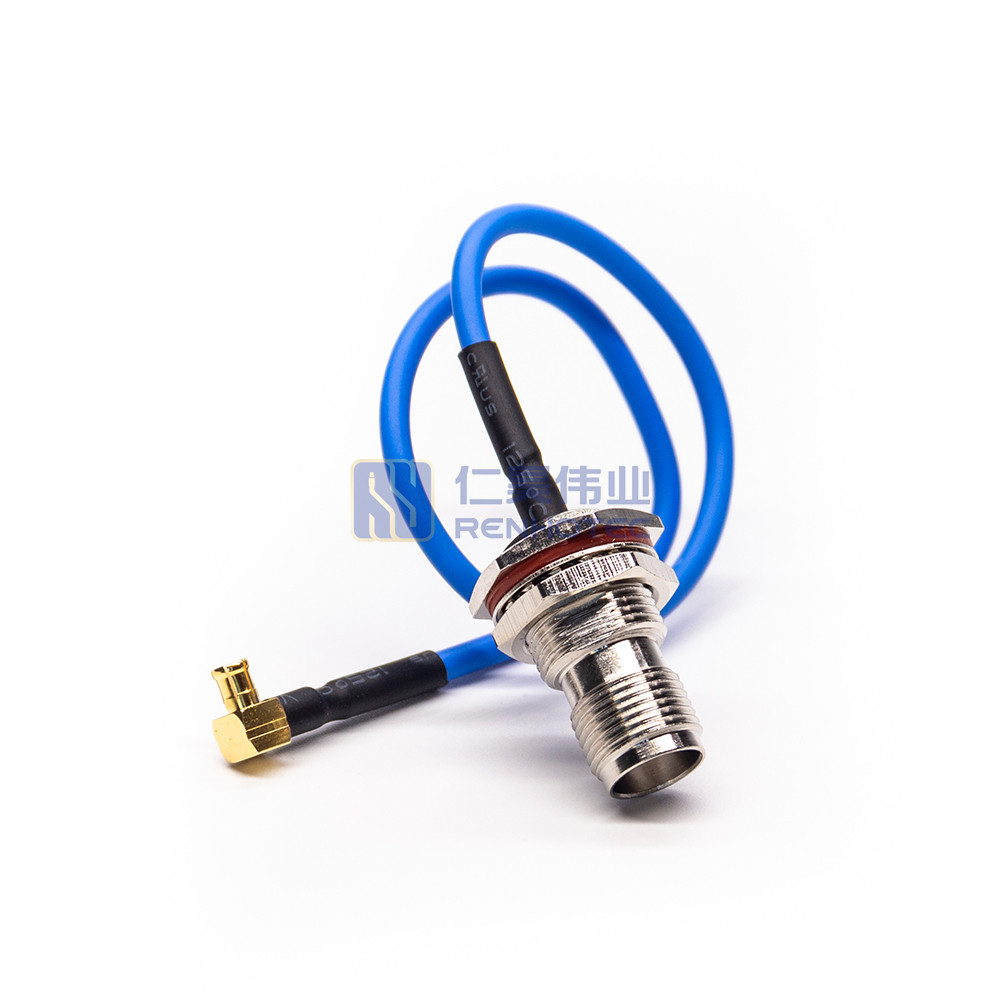

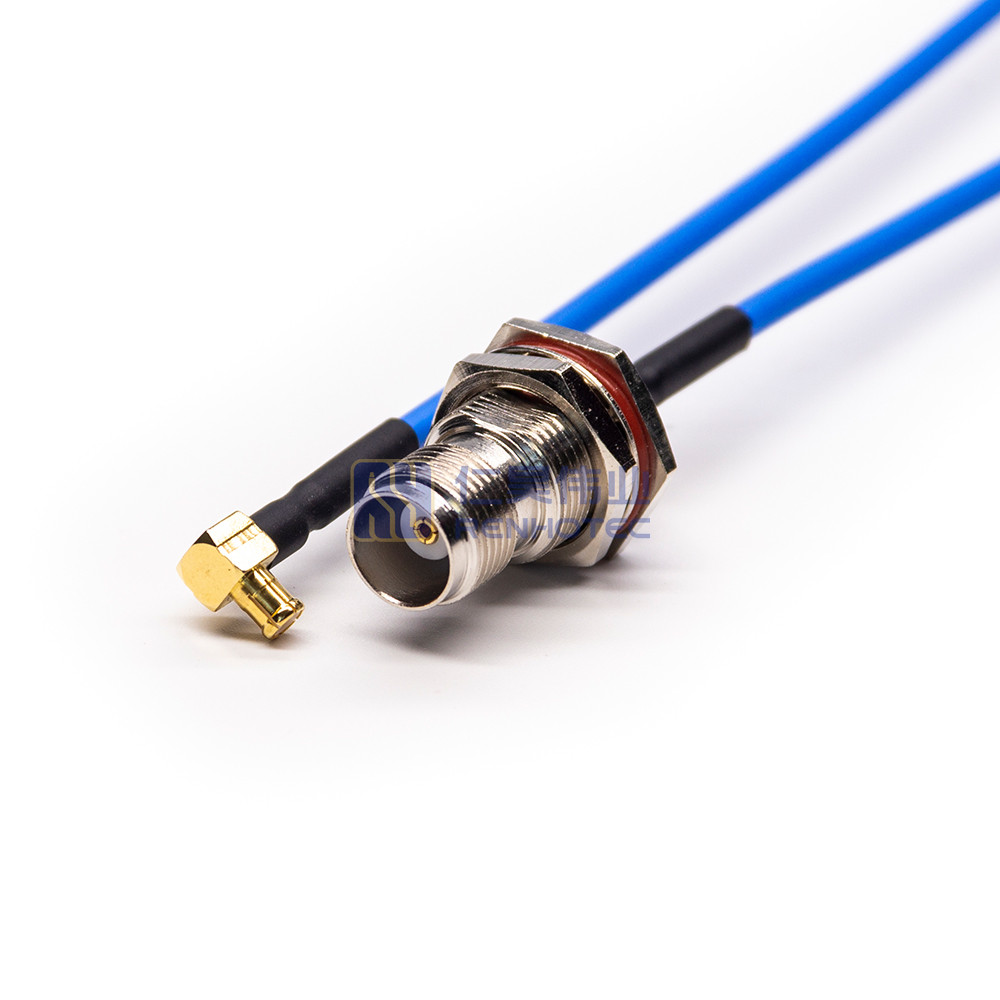

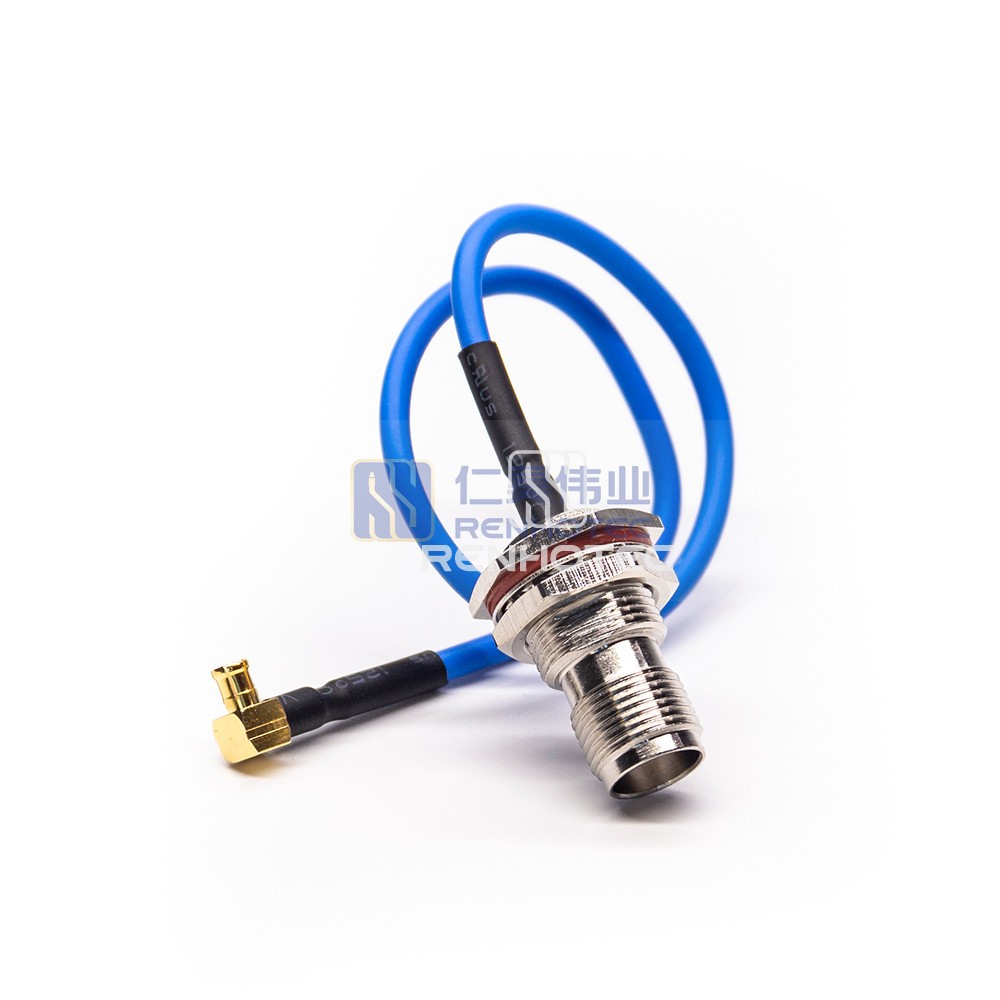

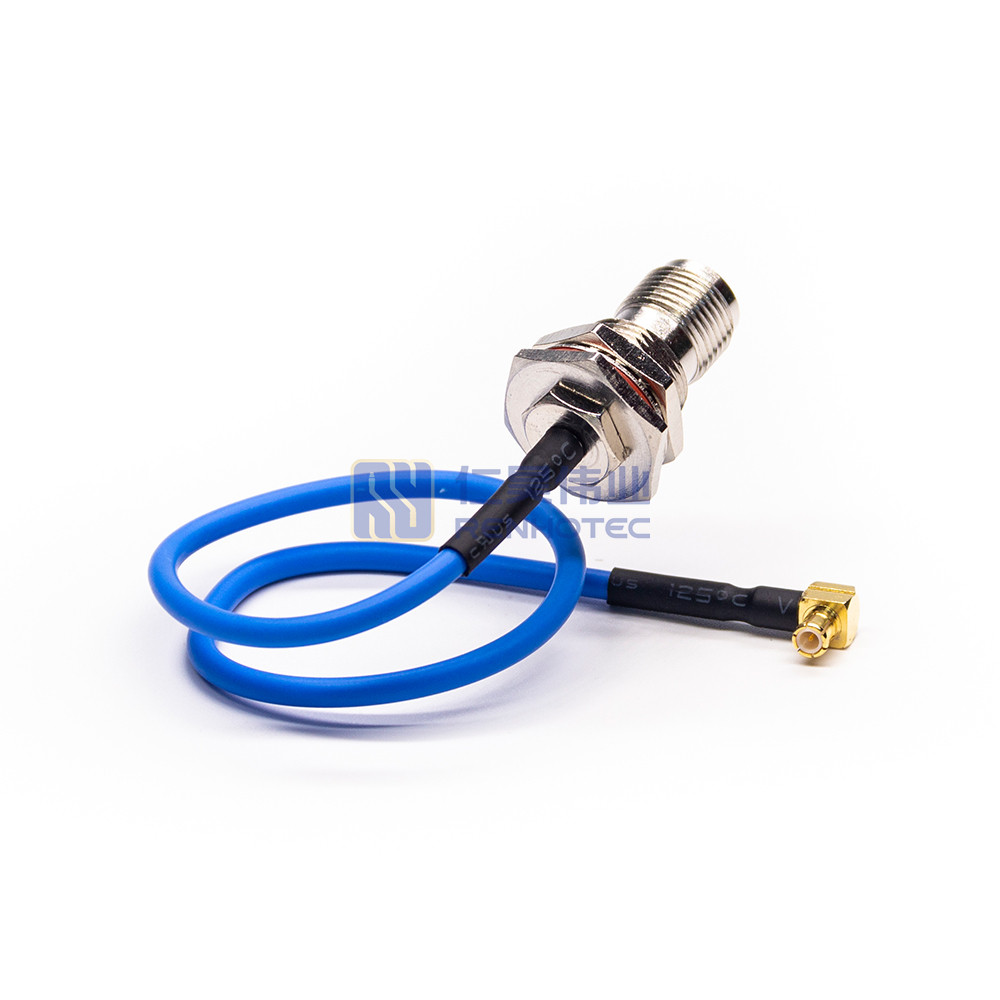

TNC Female Bulkhead to MCX Male Right Angle RF Cable Assembly with 50Ohm RG402 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality TNC Female Bulkhead to MCX Male Right Angle RF Cable Assembly with 50Ohm RG402 Coax. Ideal for secure connections in RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | TNC to MCX |
| 1st Connector Series | TNC Jack |
| 1st Contact Type | Female Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | MCX Plug |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Features | Waterproof |
| Mechanical | |
|---|---|
| Suitable Cable | RG402 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-6Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
