R02-S02-10021-10

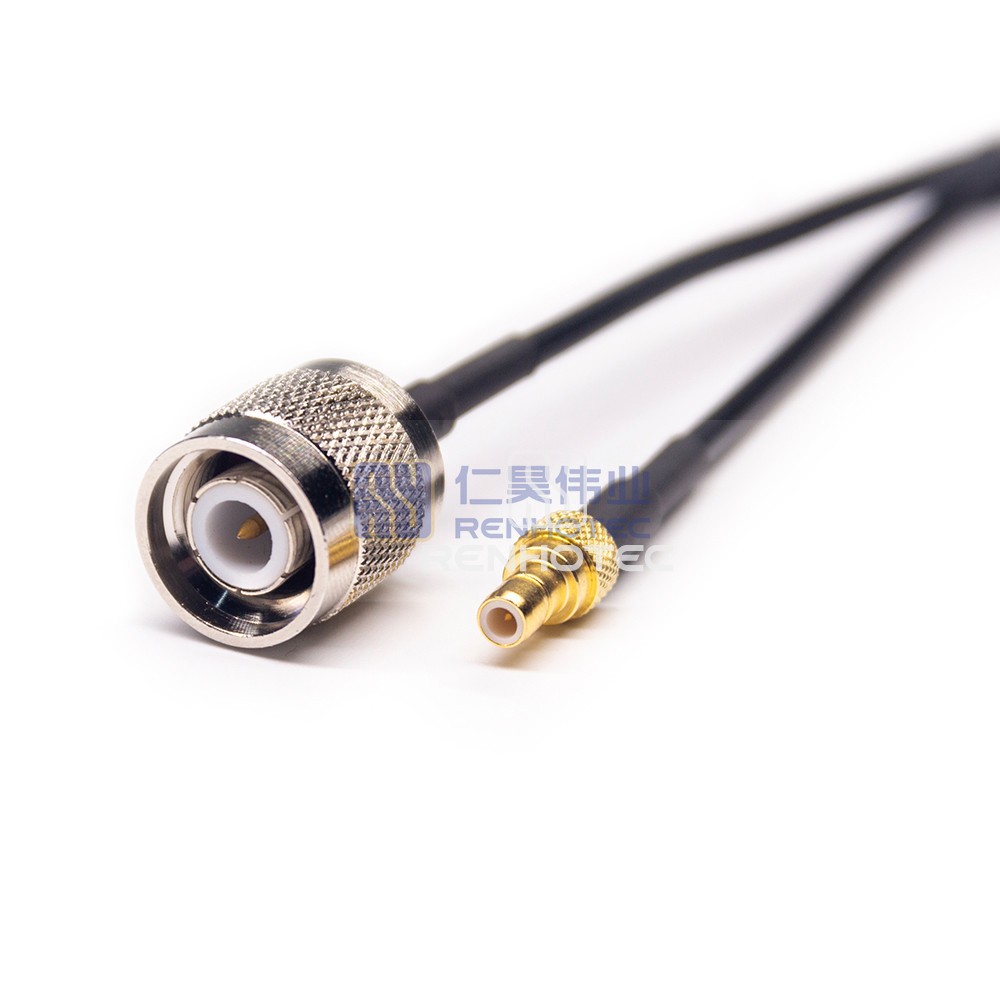

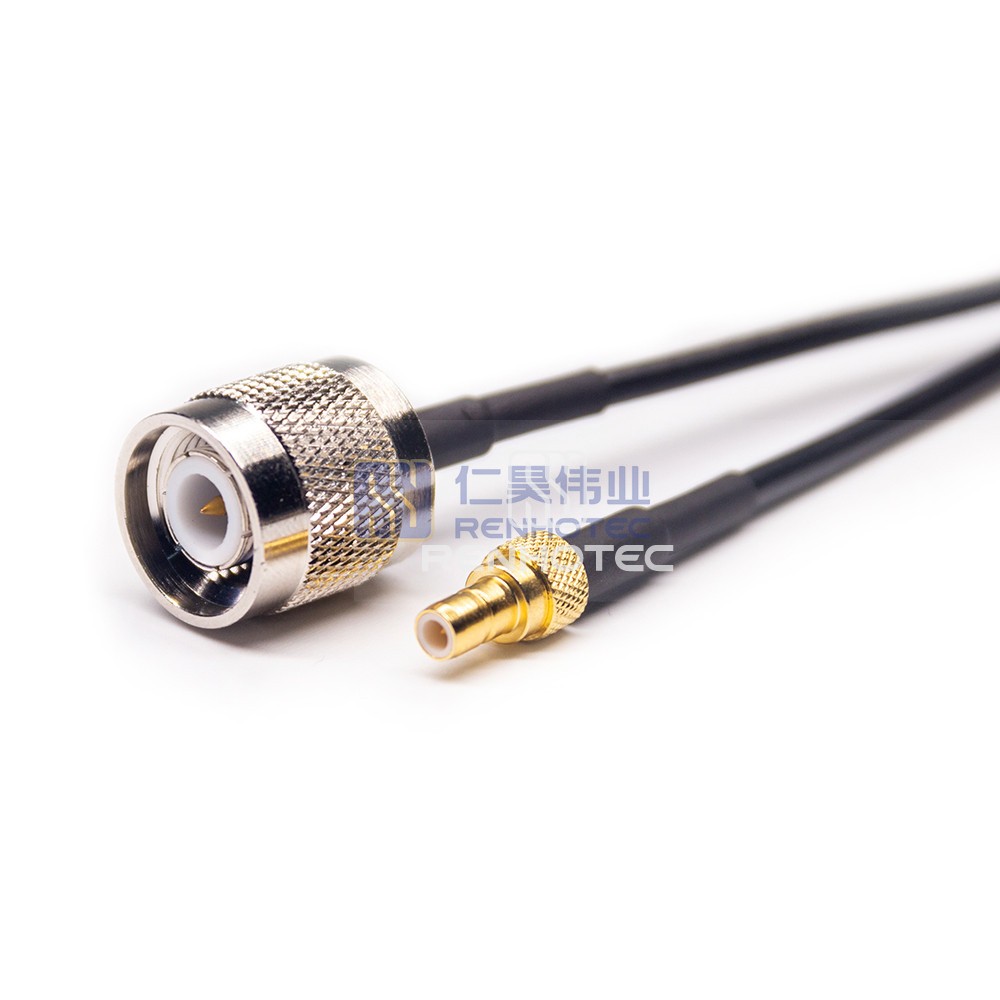

TNC Male to SMB Female RF Cable Assembly with 50Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Easily connect devices with this TNC Male to SMB Female RF Cable Assembly featuring 50Ohm RG174 Coax. Ideal for reliable RF signal transmission.
GeneralMechanicalElectricalEnvironmental
General
Conversion StyleTNC to SMB
1st Connector SeriesTNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesSMB Jack
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG174
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
Environmental
Operating Temperature-40°C ~ + 85°C
