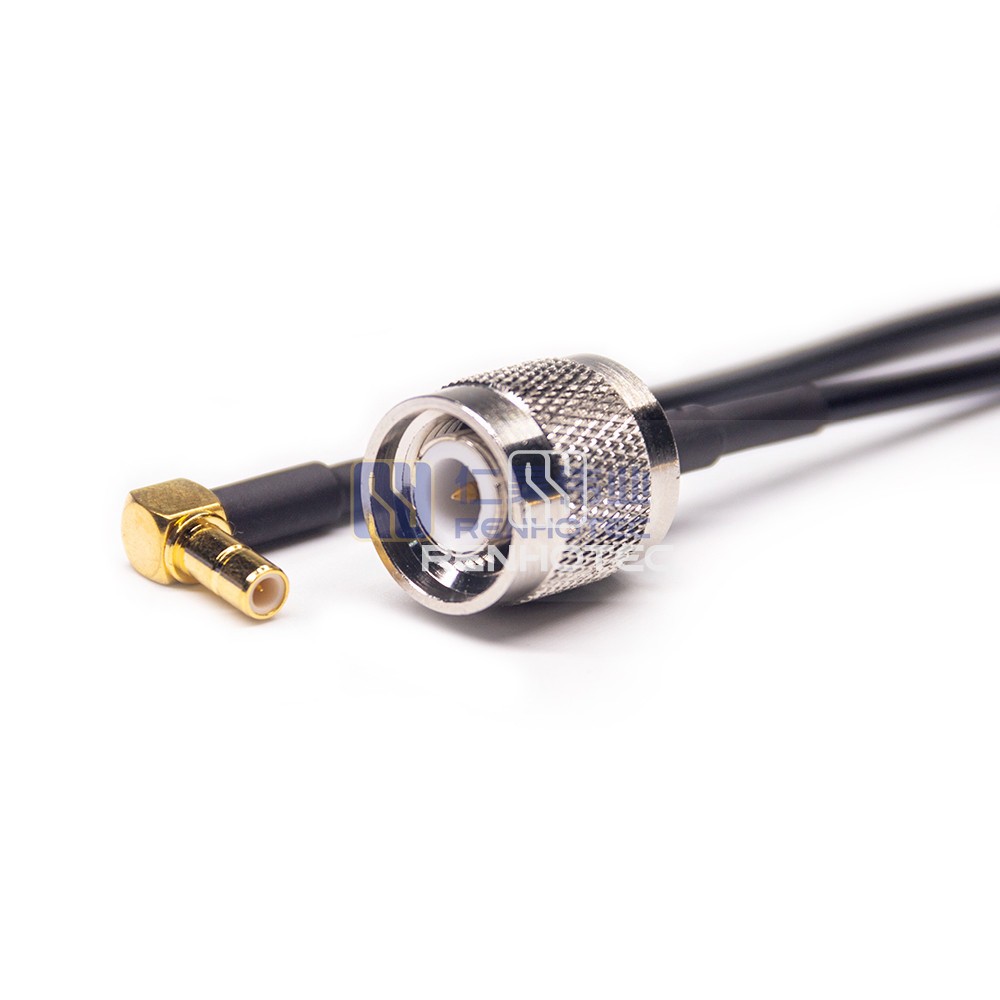

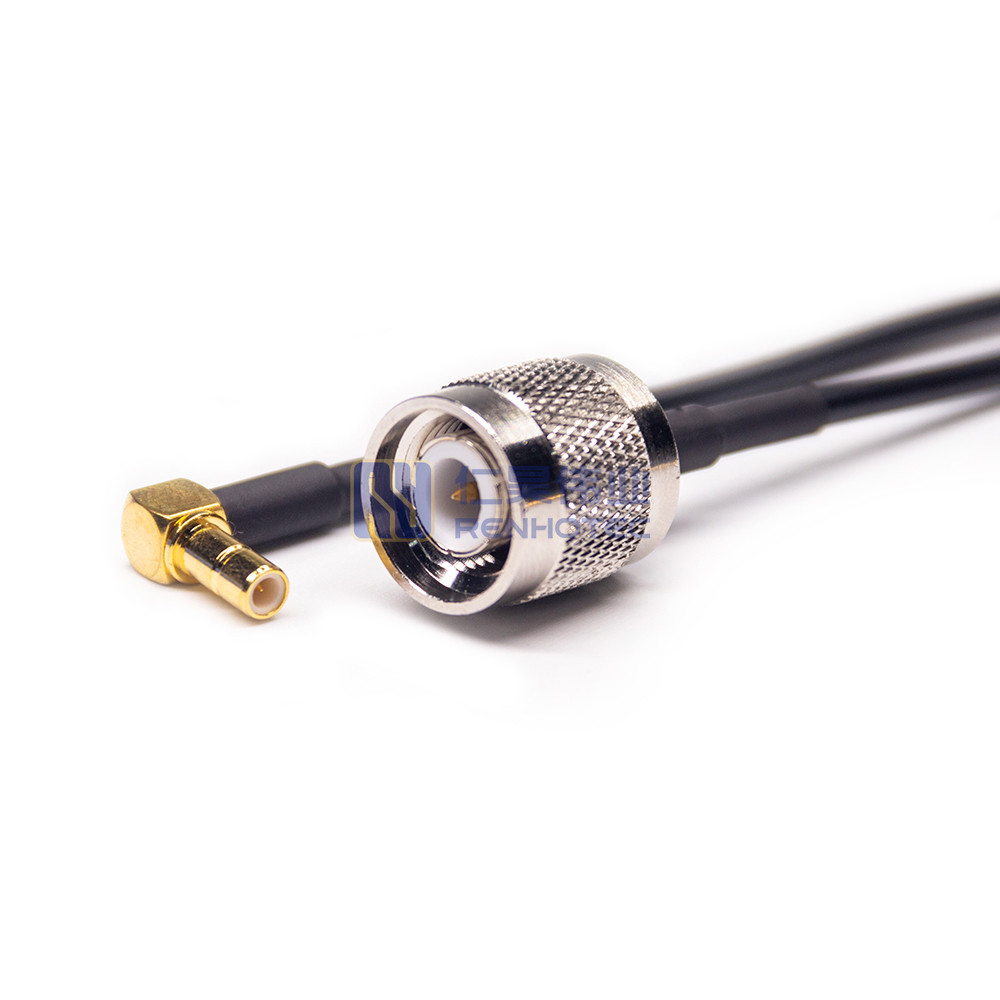

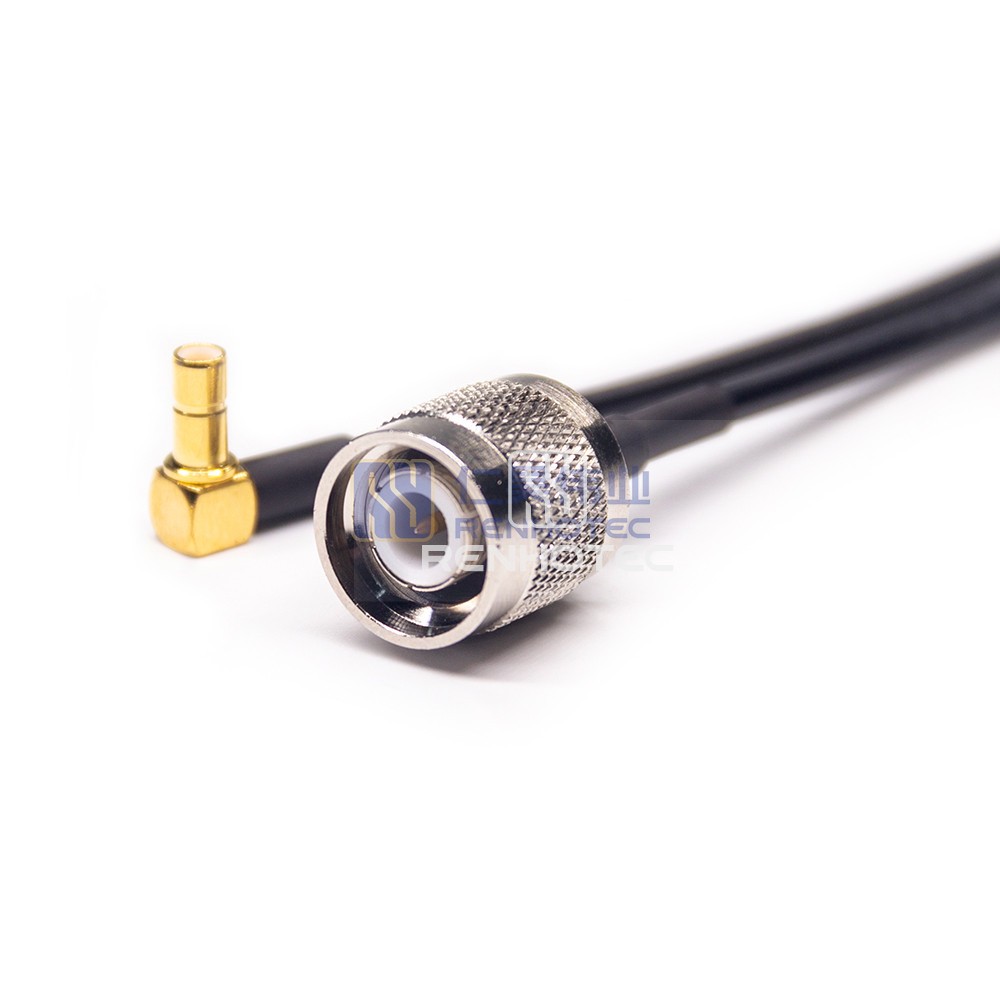

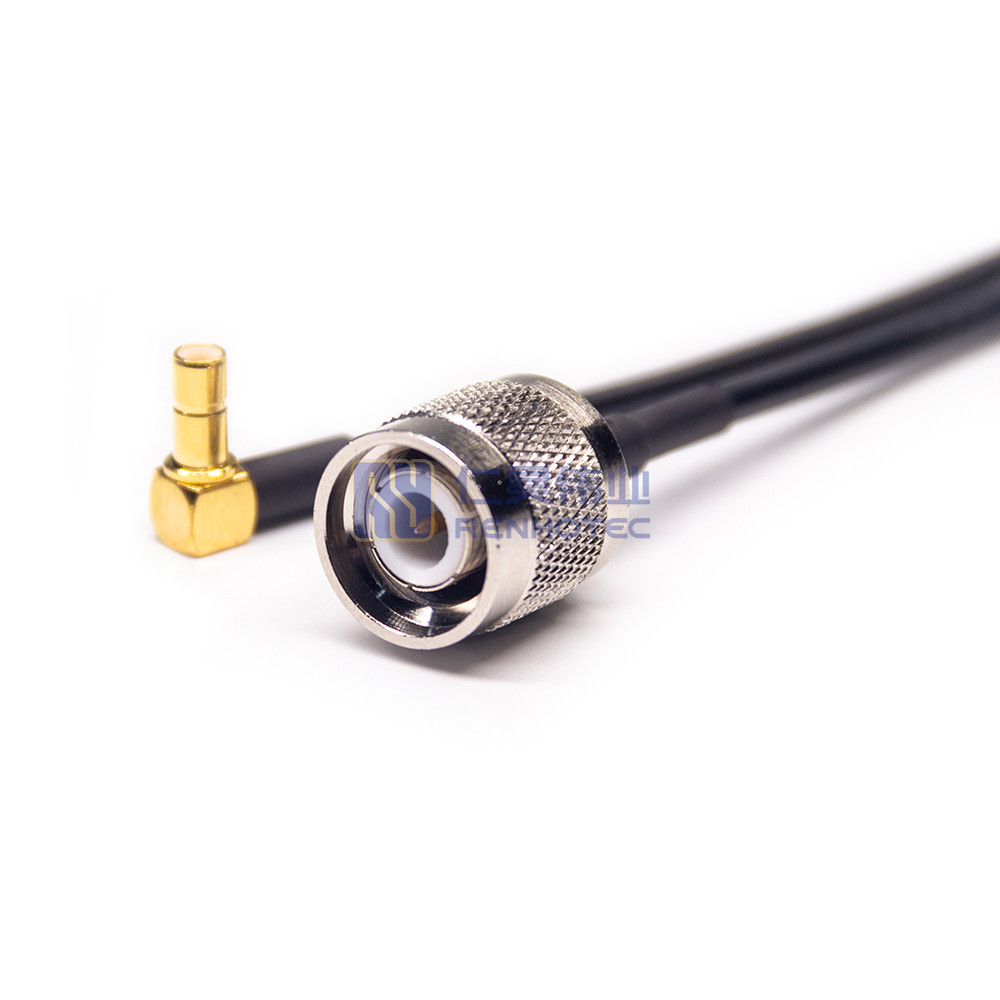

Products > RF Cable Assembly > TNC Male to SMB Female Right Angle RF Cable Assembly with 50Ohm RG174 Coax
R02-S02-10020-20
TNC Male to SMB Female Right Angle RF Cable Assembly with 50Ohm RG174 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality TNC Male to SMB Female Right Angle RF Cable Assembly made with 50Ohm RG174 Coax for optimal signal transmission. Ideal for various RF applications.
GeneralMechanicalElectricalEnvironmental
| General | |
|---|---|
| Conversion Style | TNC to SMB |
| 1st Connector Series | TNC Plug |
| 1st Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Series | SMB Jack |
| 2nd Contact Type | Male Pin |
| 2nd Connector Orientation | Right Angle |
| Mechanical | |
|---|---|
| Suitable Cable | RG174 |
| Electrical | |
|---|---|
| Impedance | 50 Ohms |
| Frequency Range | 0-4Ghz |
| Environmental | |
|---|---|
| Operating Temperature | -40°C ~ + 85°C |
