M12 4 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 - RHT-634-3065-04
M12 4 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 - RHT-634-3065-04

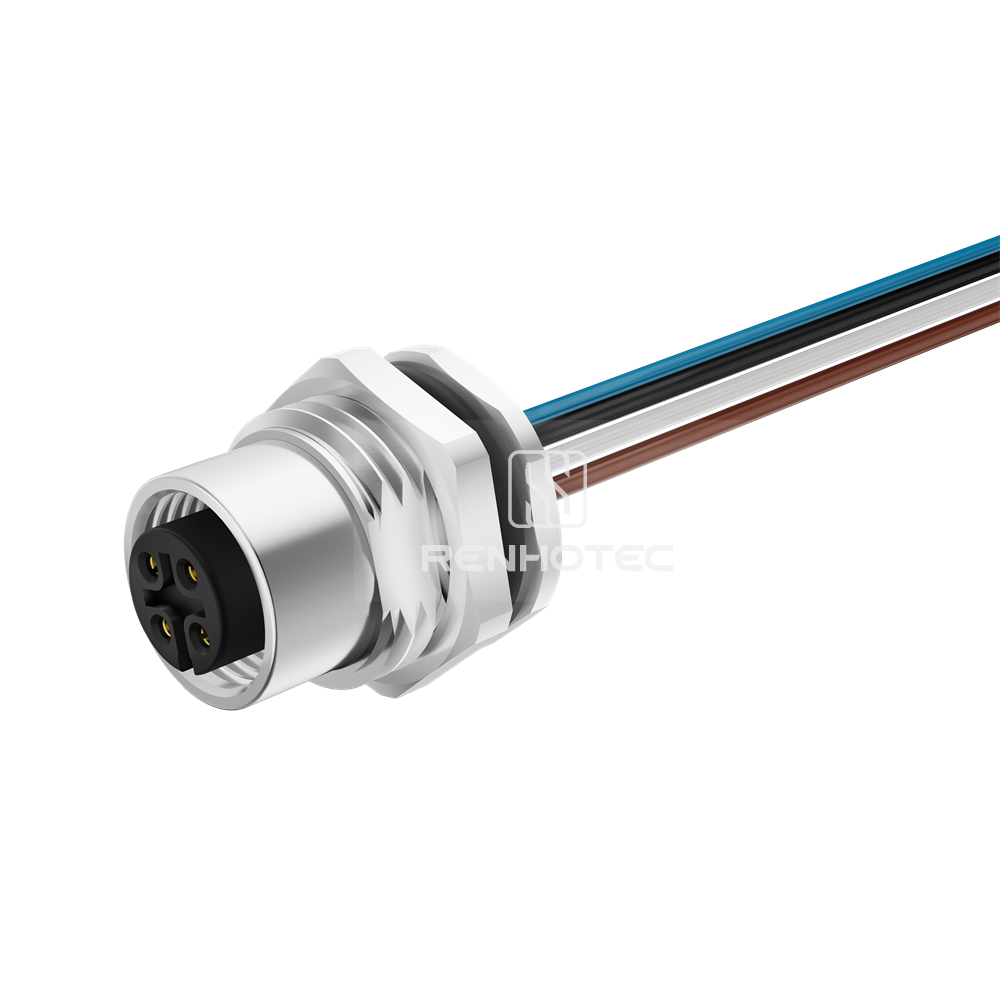

M12 4 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 product image
M12 4 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 product image
M12 4 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 product image

RHT-634-3065-04

M12 4 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16

Number of Positions:

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypeReceptacle
Number of Positions4
Contact TypeFemale Pin
KeyA
OrientationStraight
Shell SizeM12
Mounting TypePanel Mount
Mounting FeatureBulkhead - Front Fastened
Fastening TypeThreaded
Contact TerminationSolder
Materials
Shell MaterialCopper Alloy
Shell FinishZinc Plated
Contact MaterialCopper Alloy
Contact FinishGold
Electrical
Rated Voltage250V
Rated Current4A
ShieldingUnshielded
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 85°C

Product certification

Product excerpt

This M12 female panel mounting receptacle with 4 positions and A code is designed for front fastening and straight solder connections. Perfect for M16 applications.
