M12 5 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 - RHT-634-3065-05
M12 5 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 - RHT-634-3065-05

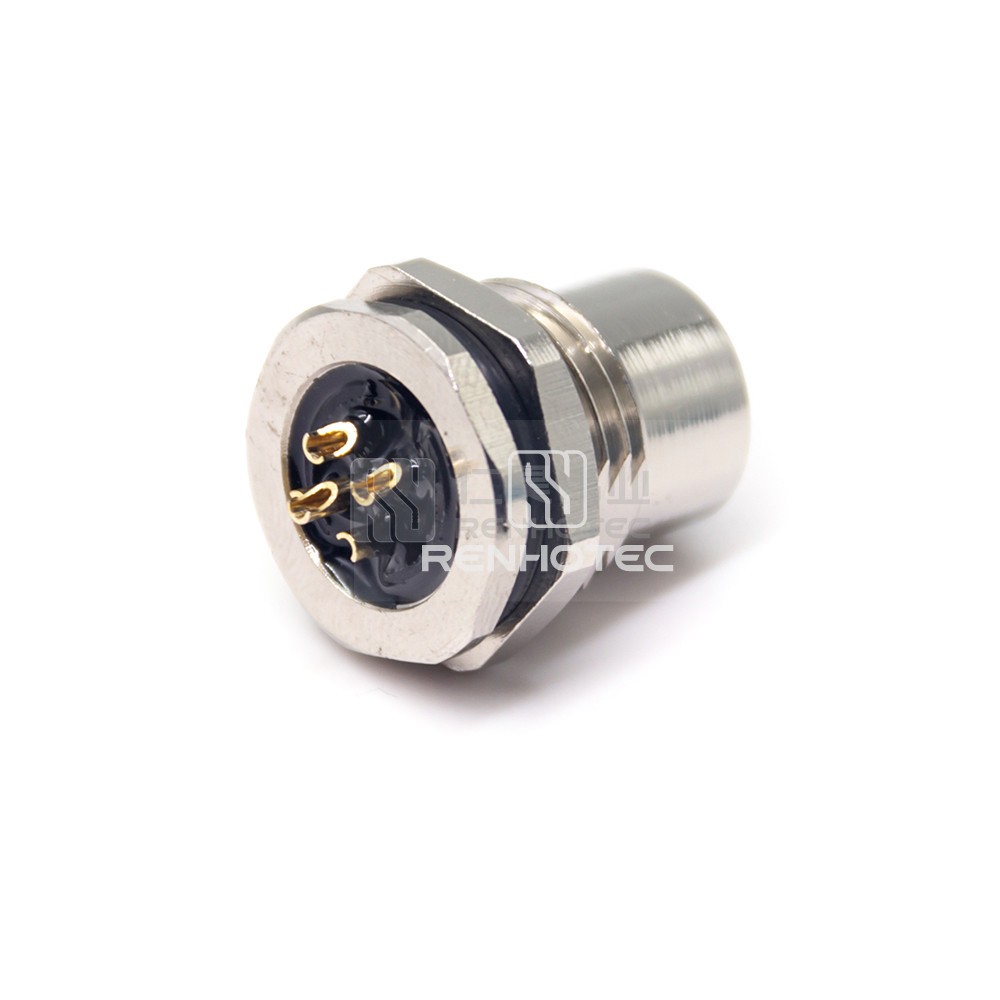

M12 5 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 product image

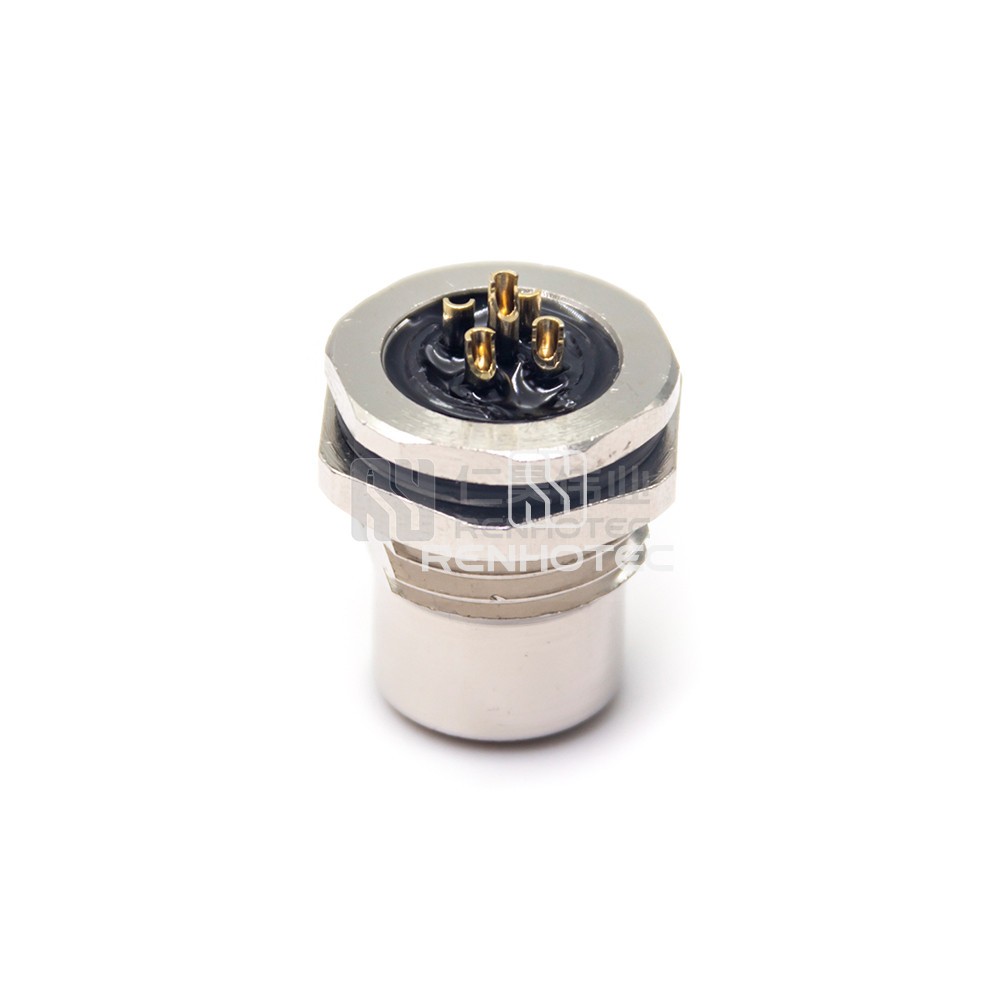

M12 5 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 product image

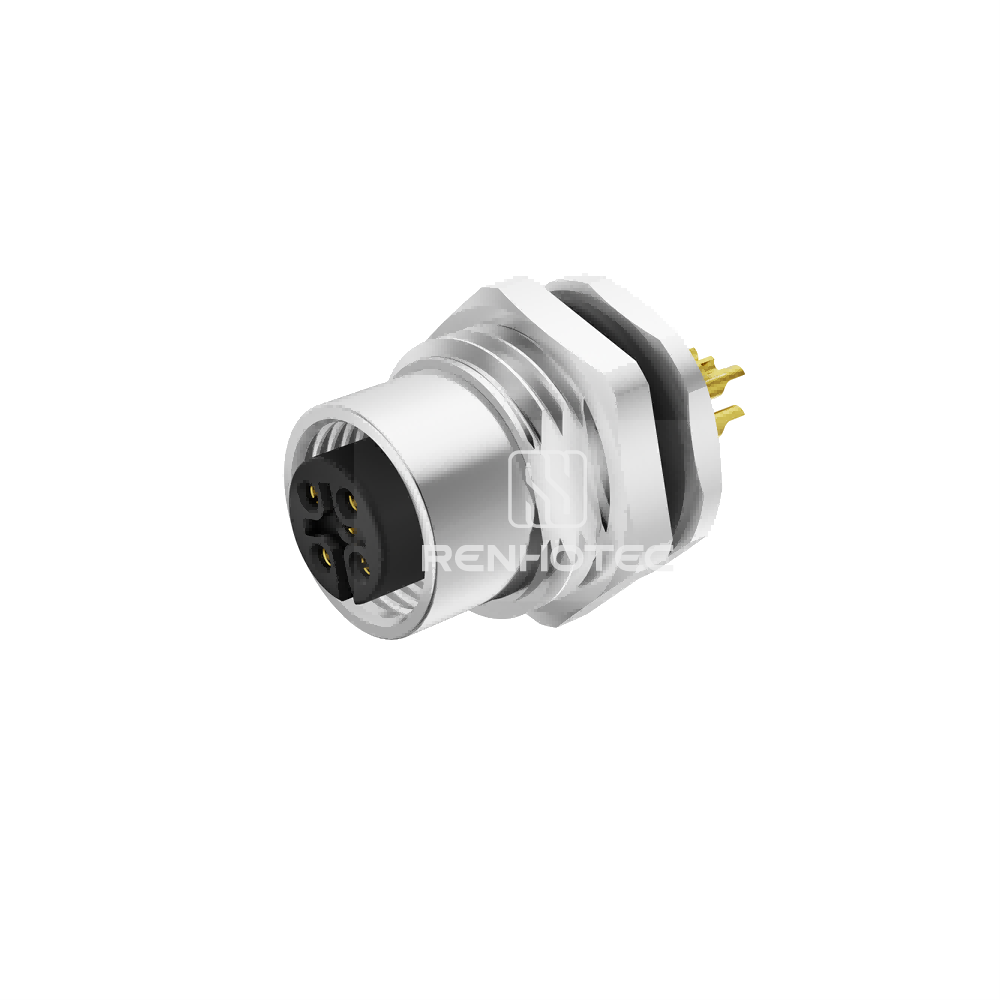

M12 5 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16 product image

RHT-634-3065-05

M12 5 Pin Female Straight Panel Mount Receptacle, A Code Front Fastened, Solder M16

Number of Positions:

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypeReceptacle
Number of Positions5
Contact TypeFemale Pin
KeyA
OrientationStraight
Shell SizeM12
Mounting TypePanel Mount
Mounting FeatureBulkhead - Front Fastened
Fastening TypeThreaded
Contact TerminationSolder
Materials
Shell MaterialCopper Alloy
Shell FinishZinc Plated
Contact MaterialCopper Alloy
Contact FinishGold
Electrical
Rated Voltage60V
Rated Current4A
ShieldingUnshielded
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 85°C

Product certification

Product excerpt

This M12 female panel mounting receptacle features 5 positions, ACode front fastening, and straight soldering for M16 connections. Ideal for secure and reliable electrical connections.

Certification

Renhotec REACH Test Report Download

Catelog

RENHOTEC M-Series Connector Catalog [EN][CN] Download
