Products > Waterproof Connector > 16 Series All-metal Waterproof Connector are Fitted with 3 Pin Plug

RK-16-P-03-P-0

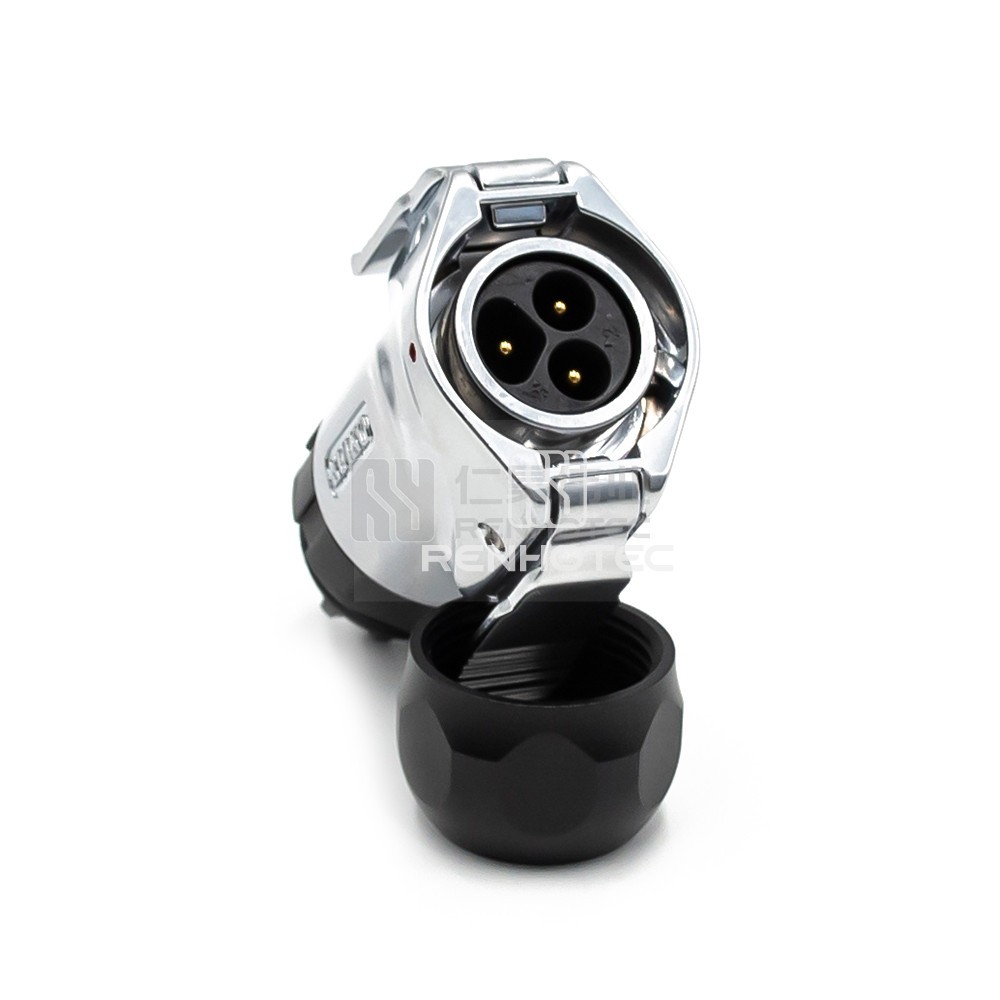

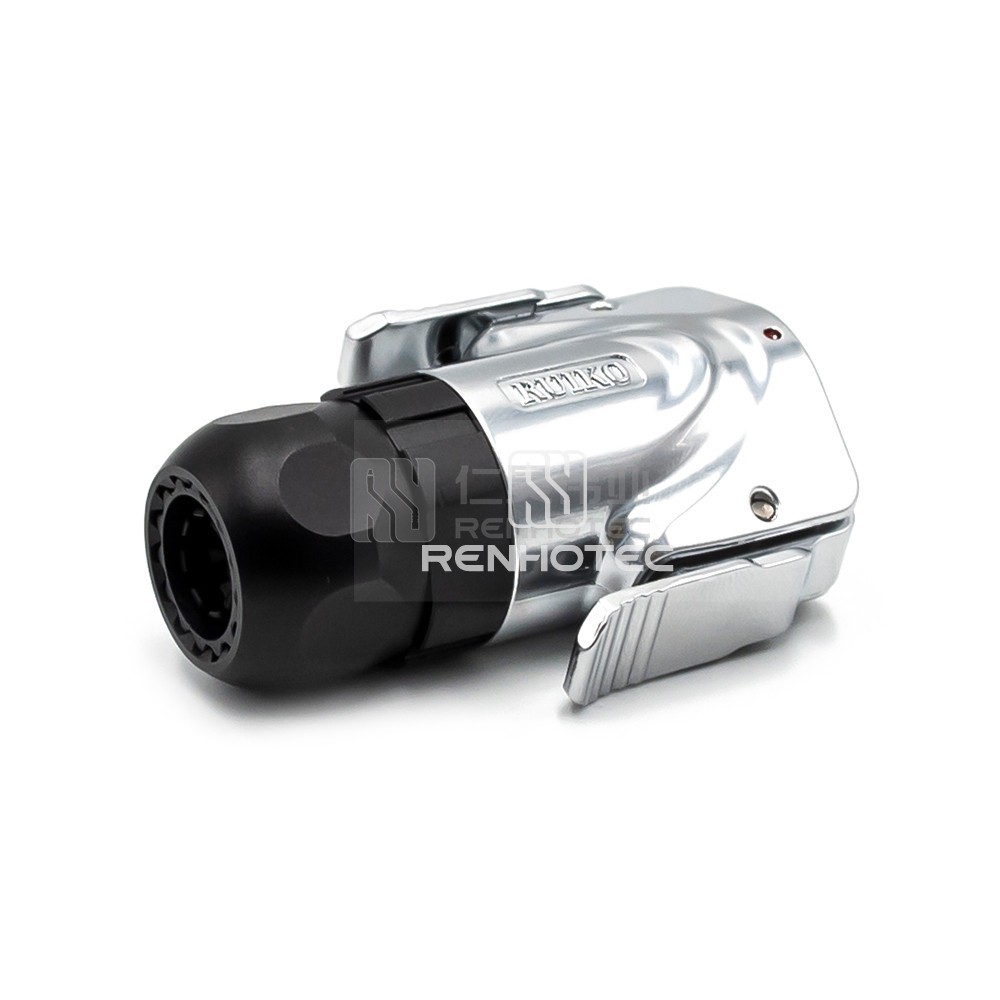

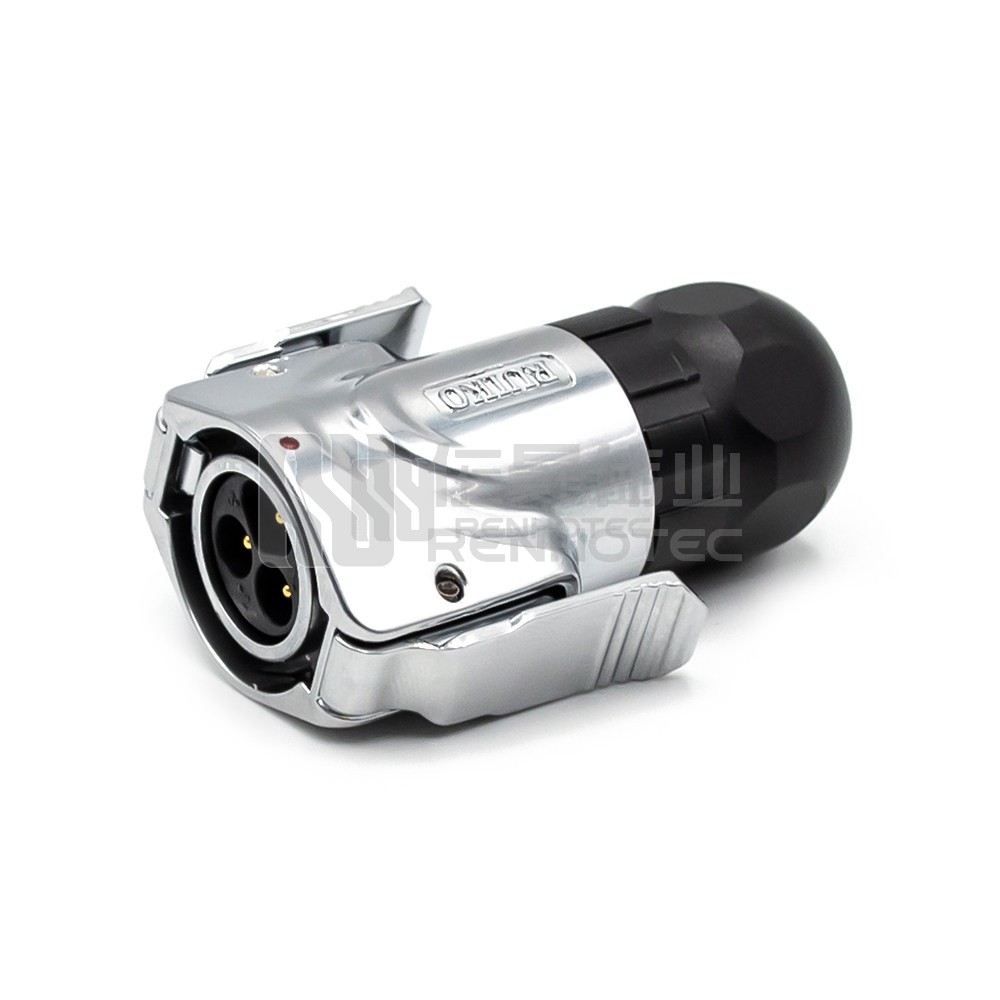

16 Series All-metal Waterproof Connector are Fitted with 3 Pin Plug

Durable and reliable 16 Series all-metal waterproof connector with a 3 pin plug, ideal for various electrical connections in harsh environments.

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 7
  6. 8
  7. 9
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data

    Product certification

    1. General
    2. Mechanical
    3. Material
    4. Electrical
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions3
    Fastening TypePush-Pull
    Mounting TypeCable Type
    Contact TerminationSolder

    Mechanical

    Wire Gauge or Range18-16AWG/1.0mm²-1.5mm²

    Material

    Shell MaterialZinc Alloy
    Shell FinishChrome Plated
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Insulating MaterialPA66

    Electrical

    Rated Voltage400V
    Rated Current10A

    Environmental

    Operating Temperature-40°C ~ + 80°C
