Products > Circular Connector > Circular Connectors M23 Female Right Angle Plug 6 Female pin A Code Screw Contacts

M923F-6E
Circular Connectors M23 Female Right Angle Plug 6 Female pin A Code Screw Contacts

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

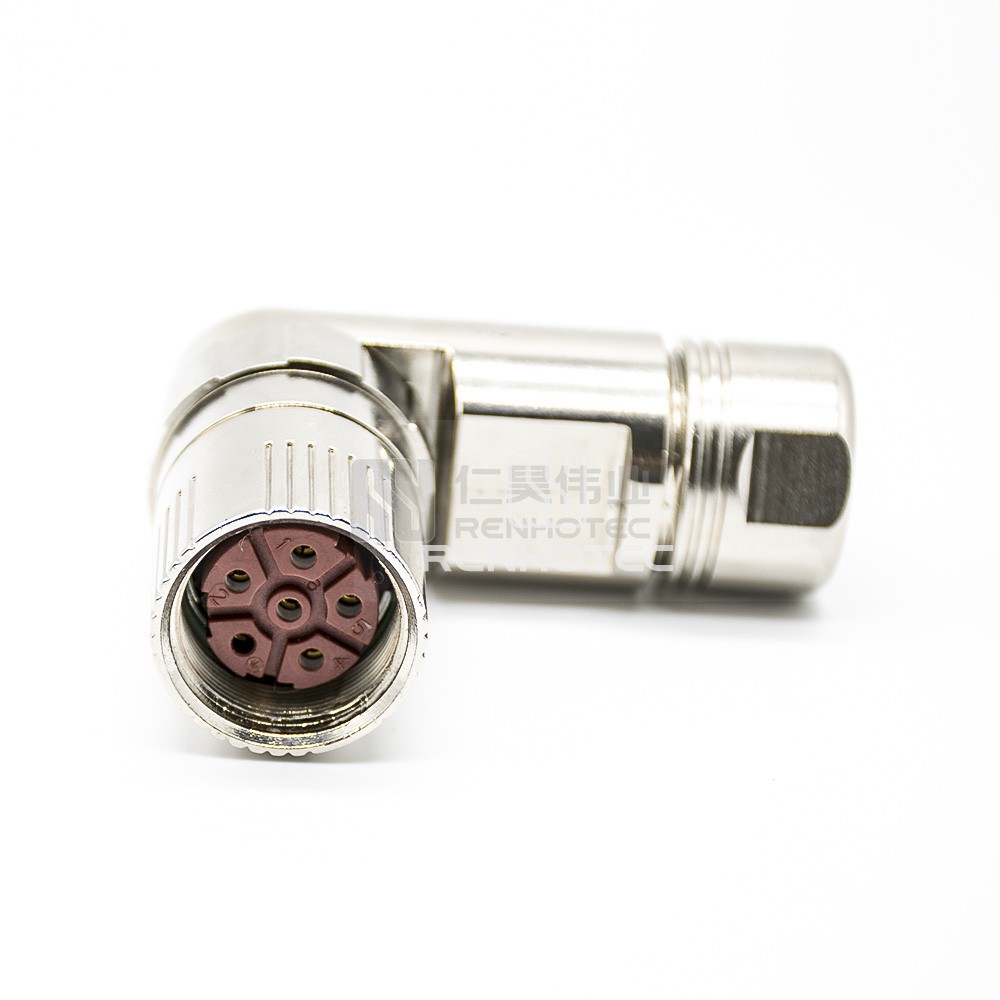

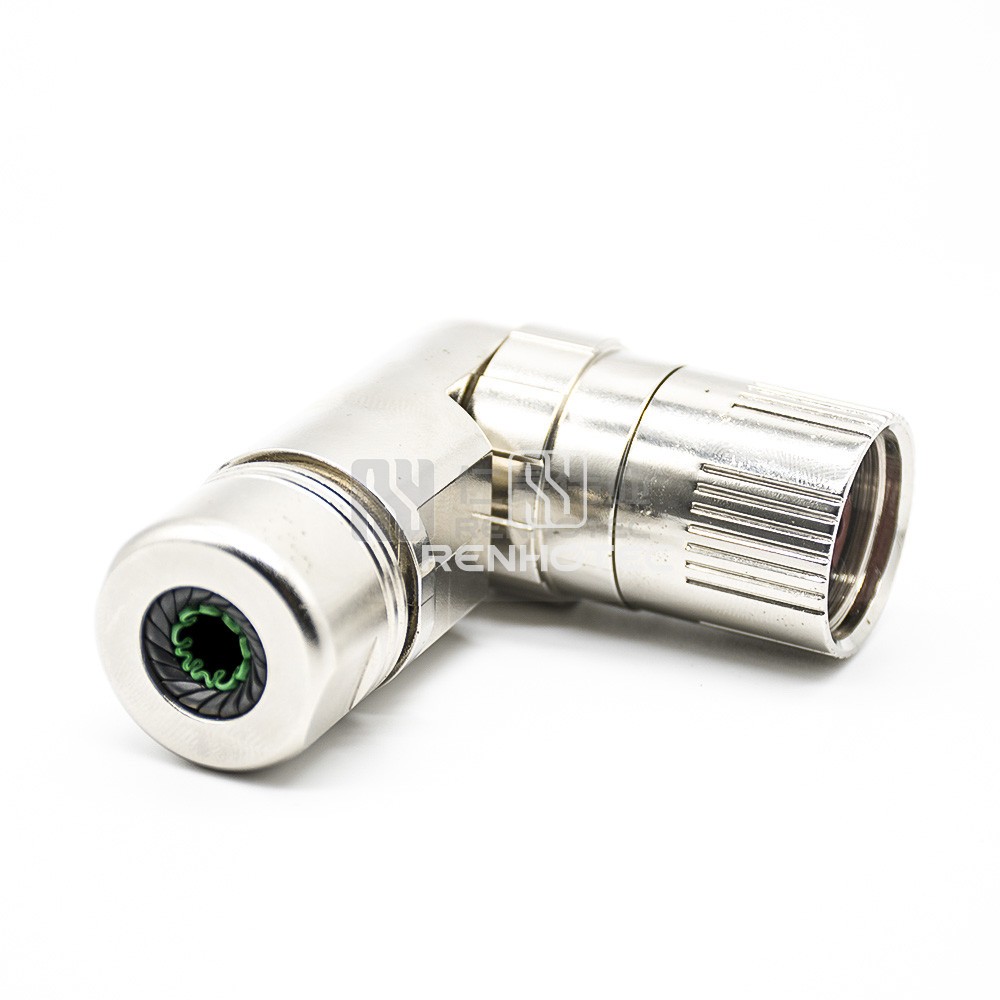

    High-quality M23 female circular connector plug with 6 female pins and screw contacts. Features a right angle design for easy installation. Compatible with A Code connections.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationRight Angle
    Contact TypeFemale Pin
    Number of Positions6
    KeyA
    Contact TerminationInner Screw

    Shell

    Shell SizeM23

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingShielded
    Rated Current28A
    Rated Voltage600V
    Каталог разъемов RENHOTEC 2PM [EN][RU] Download
    RENHOTEC M-Series Connector Catalog [EN][CN] Download
