Products > Circular Connector > Circular Connectors M9 Female Straight Plug 5 Female Pin Screw Contacts

RHT-634-3177-05

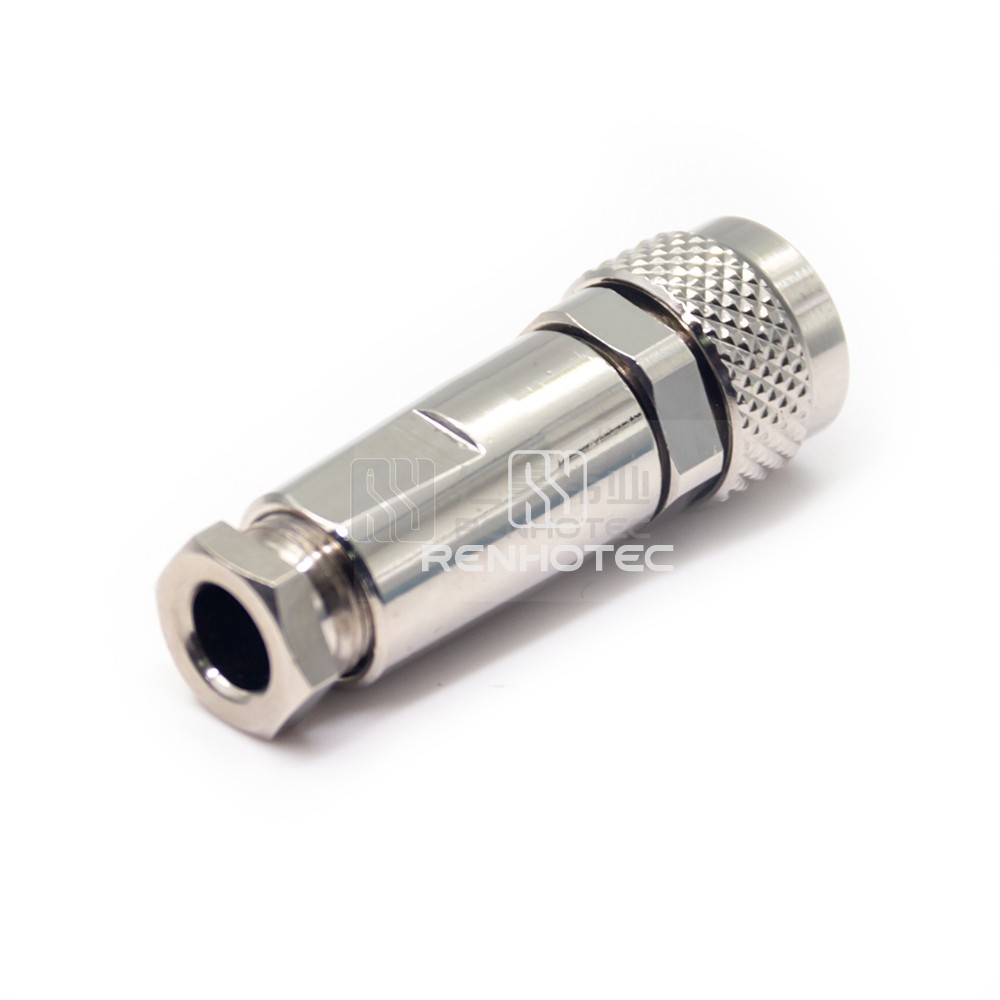

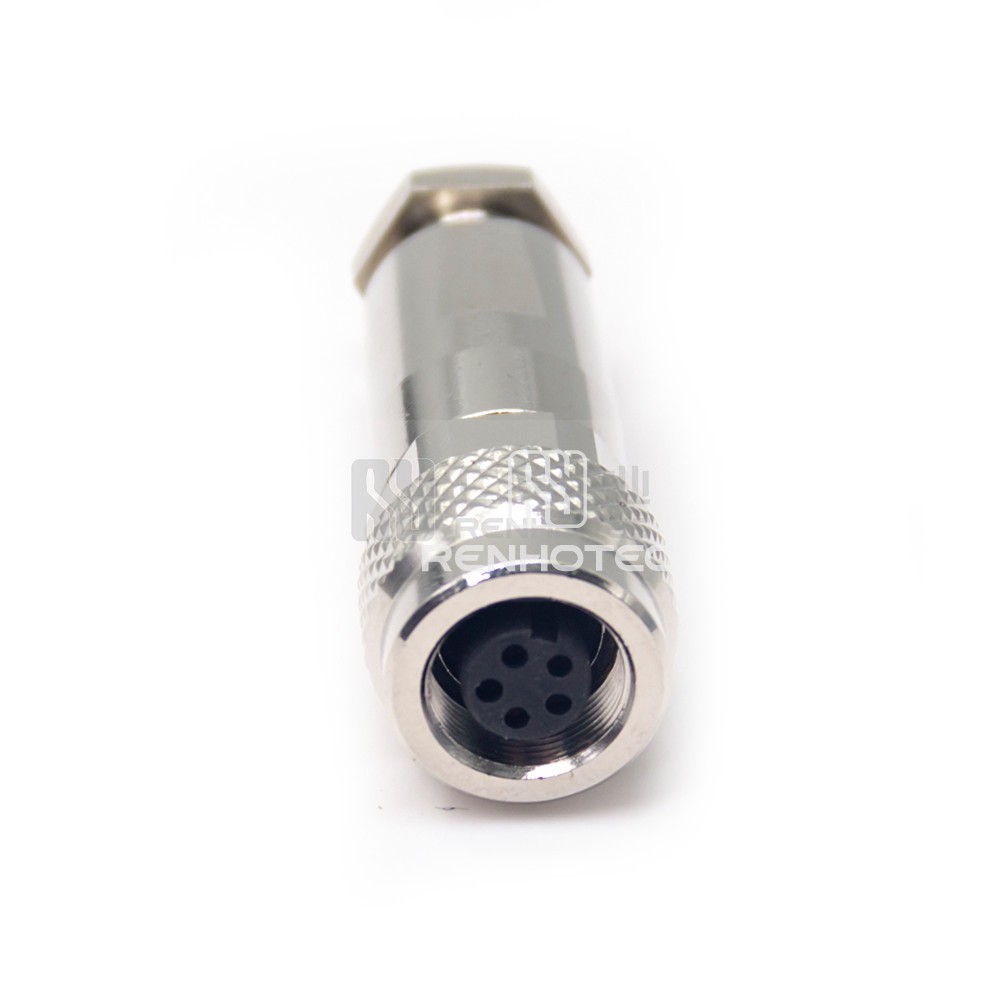

Circular Connectors M9 Female Straight Plug 5 Female Pin Screw Contacts

Color
  1. Silver
Number of Positions
  1. 2
  2. 3
  3. 4
  4. 5
  5. 6
  6. 7
  7. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality M9 female straight plug circular connector with 5 female pin screw contacts. Ideal for secure and reliable connections in various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypePlug
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions5
    Contact TerminationInner Screw

    Shell

    Shell SizeM9

    Mechanical

    Fastening TypeThreaded
    Mounting TypeCable Type

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingShielded
    Rated Current3A
    Rated Voltage125V
    Каталог разъемов RENHOTEC 2PM [EN][RU] Download
    RENHOTEC M-Series Connector Catalog [EN][CN] Download
