Products > Sensor Connector > M12 Series > M12 X Coded > M12 Ethernet Pigtail Cable X-Code 8 Pin Male Angled - Cat6a, S/FTP Shielded, PUR Jacket
M12 Ethernet Pigtail Cable X-Code 8 Pin Male Angled - Cat6a, S/FTP Shielded, PUR Jacket - RHT-605-10143-8X-R-XXX
M12 Ethernet Pigtail Cable X-Code 8 Pin Male Angled - Cat6a, S/FTP Shielded, PUR Jacket - RHT-605-10143-8X-R-XXX

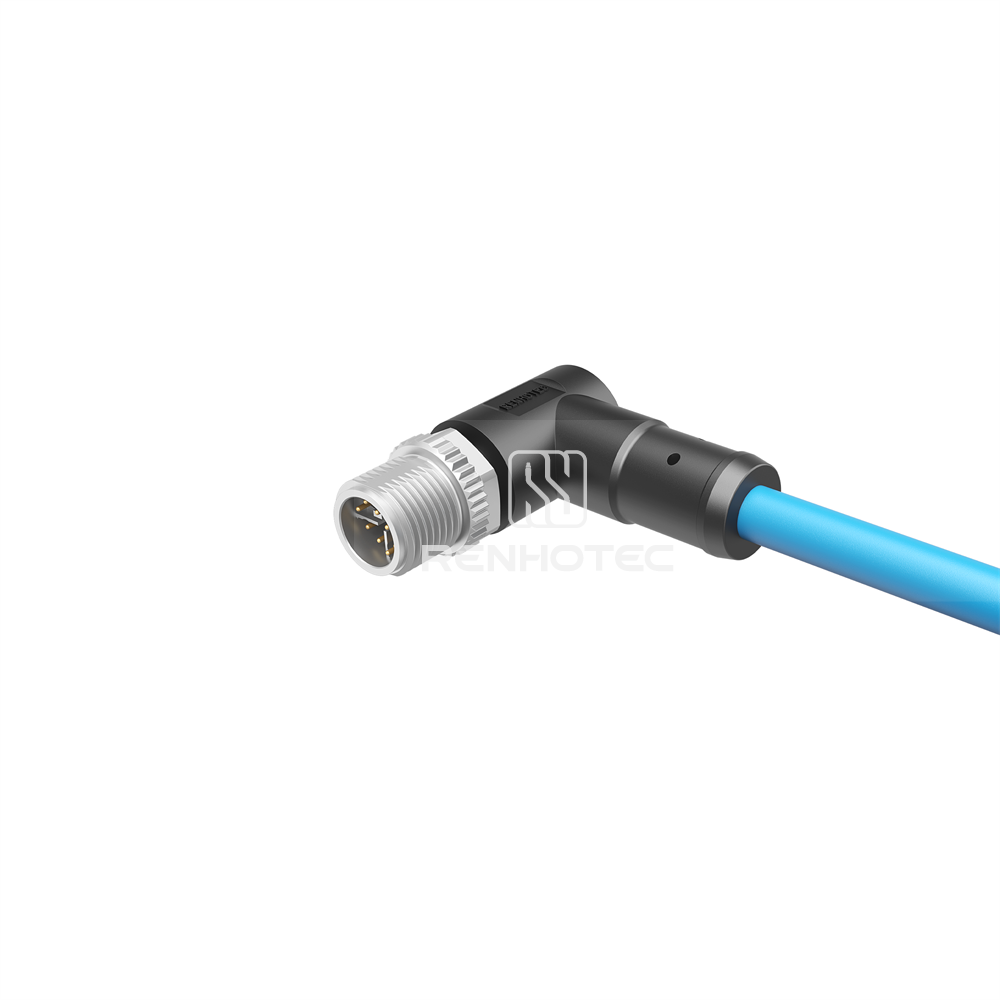

M12 Ethernet Pigtail Cable X-Code 8 Pin Male Angled - Cat6a, S/FTP Shielded, PUR Jacket product image

RHT-605-10143-8X-R-XXX

M12 Ethernet Pigtail Cable X-Code 8 Pin Male Angled - Cat6a, S/FTP Shielded, PUR Jacket

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Part TypeMale
    Number of Positions8X
    CodingX
    OrientationAngled
    Contact TerminationSolder Cup
    Wire Gauge24AWG/0.25mm²
    Mating Cycles≥500
    Materials
    Body MaterialBrass/Nickel Plated
    Insulation MaterialPA66+GF
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Shielding Bracket MaterialNickel Plated/Zinc Alloy
    Cable MaterialPVC/PUR/TPU/Customized
    SealBlack/NBR
    Electrical
    Rated Voltage60V AC/DC
    Rated Current0.5A
    Contact Resistance≤5mΩ
    Insulation Resistance≥100MΩ
    ShieldingEMI-Shielded
    Environmental
    Protection RatingIP67(Mated)
    Temperature Range-20°C ~ +80°C

    Product certification

    ×

    Product excerpt

    Certification

    Renhotec REACH Test Report Download

    Catelog

    RENHOTEC M-Series Connector Catalog [EN][CN] Download
