M12 Panel Mount Pigtail Receptacle X-Code 8 Pin Female Straight - Front Fastened, Shielded - RHT-634-1495-8X-XXX
M12 Panel Mount Pigtail Receptacle X-Code 8 Pin Female Straight - Front Fastened, Shielded - RHT-634-1495-8X-XXX

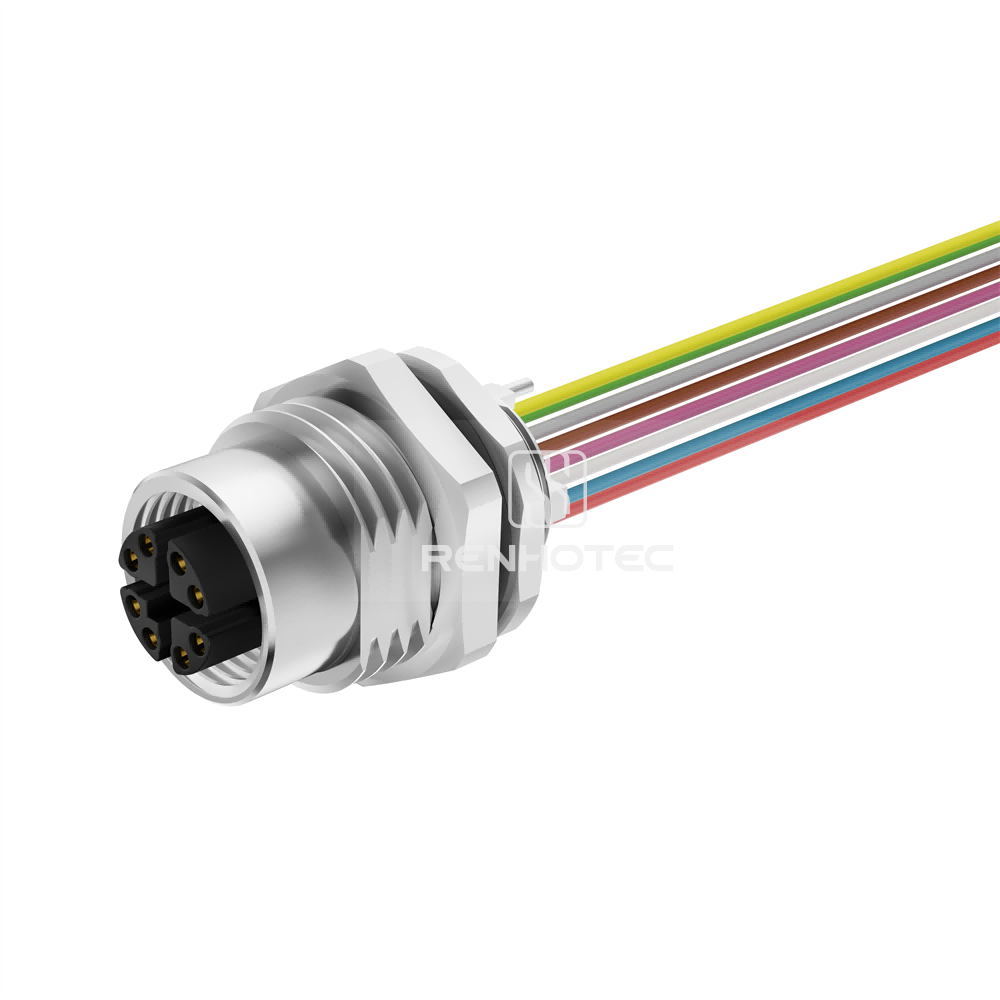

M12 Panel Mount Pigtail Receptacle X-Code 8 Pin Female Straight - Front Fastened, Shielded product image

RHT-634-1495-8X-XXX

M12 Panel Mount Pigtail Receptacle X-Code 8 Pin Female Straight - Front Fastened, Shielded

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Technical data
    • Overview
    • Certification
    • Download
    GeneralMaterialsElectricalEnvironmental
    General
    Part TypeFemale
    Number of Positions8X
    CodingX
    OrientationStraight
    Contact TerminationSolder Cup
    Wire Gauge24AWG/0.25mm²
    Mating Cycles≥500
    Materials
    Body MaterialBrass/Nickel Plated
    Insulation MaterialPA66+GF
    Contact MaterialPhosphor Bronze
    Contact FinishGold
    Shielding Bracket MaterialNickel Plated/Zinc Alloy
    Wire MaterialPVC/PUR/TPU/Customized
    SealBlack/NBR
    Electrical
    Rated Voltage60V AC/DC
    Rated Current0.5A
    Contact Resistance≤5mΩ
    Insulation Resistance≥100MΩ
    ShieldingShielded
    Environmental
    Protection RatingIP67(Mated)
    Temperature Range-25°C ~ +80°C
