M12 Panel Mount Receptacle A-Code 8 Pin Male Straight - Front Fastened, with Wires - RHT-634-1322-08-XXX
M12 Panel Mount Receptacle A-Code 8 Pin Male Straight - Front Fastened, with Wires - RHT-634-1322-08-XXX

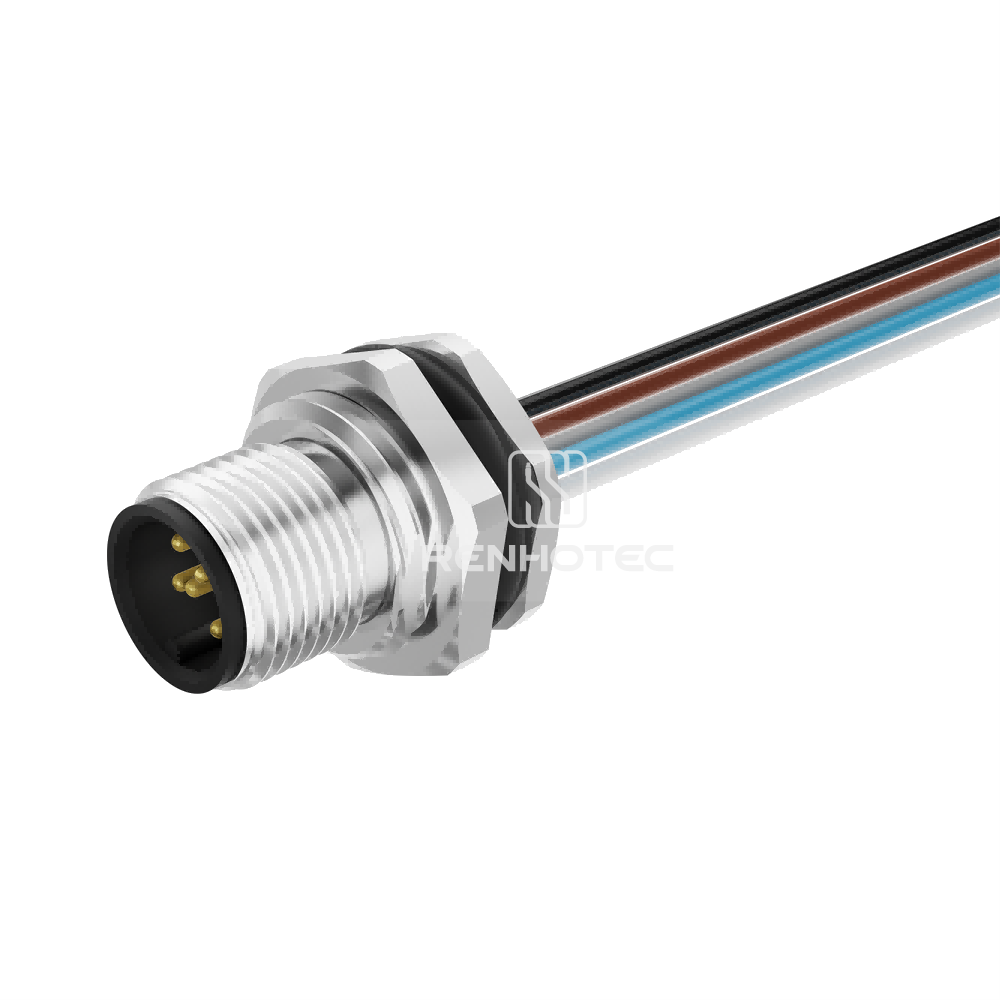

M12 Panel Mount Receptacle A-Code 8 Pin Male Straight - Front Fastened, with Wires product image

RHT-634-1322-08-XXX

M12 Panel Mount Receptacle A-Code 8 Pin Male Straight - Front Fastened, with Wires

Number of Positions:

  • Technical data
  • Overview
  • Certification
  • Download
General
Part TypeMale
Number of Positions8
CodingA
OrientationStraight
Contact TerminationSolder Cup
Wire Gauge22AWG/0.34mm2
Wire LengthCustomized
Mating Cycles≥500
Materials
Body MaterialBrass/Nickel Plated
Insulation MaterialPA66+GF
Contact MaterialBrass
Contact FinishGold
Wire MaterialPVC
SealBlack/NBR
Electrical
Rated Voltage250V
Rated Current4A
Contact Resistance≤5mΩ
Insulation Resistance≥100MΩ
ShieldingUnshielded
Environmental
Protection RatingIP67(Mated)
Temperature Range-40°C ~ +85°C

Product certification

Product excerpt

Certification

Renhotec REACH Test Report Download

Catelog

RENHOTEC M-Series Connector Catalog [EN][CN] Download
