M12 Cable A-Code 5 Pin Female Straight - Single-Ended Unshielded, PUR Jacket - RHT-M12002-05-R-XXX
M12 Cable A-Code 5 Pin Female Straight - Single-Ended Unshielded, PUR Jacket - RHT-M12002-05-R-XXX

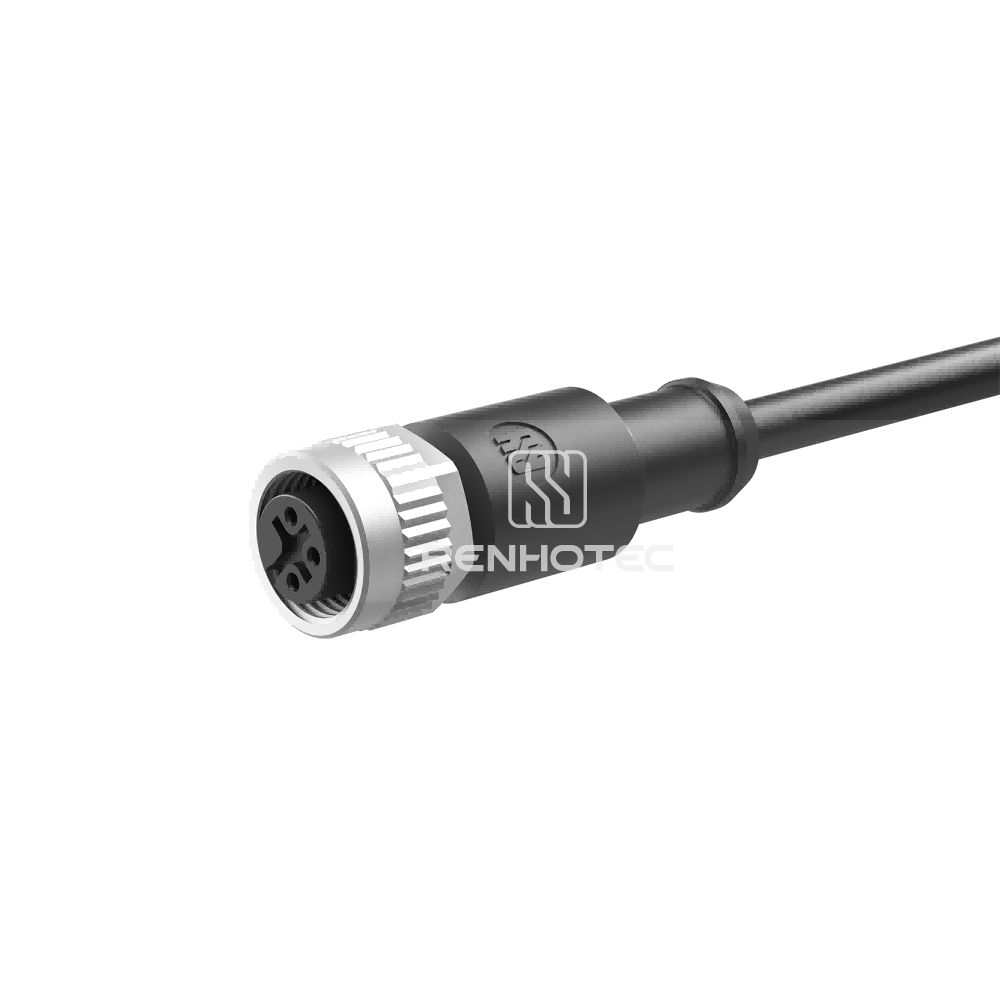

M12 Cable A-Code 5 Pin Female Straight - Single-Ended Unshielded, PUR Jacket product image

RHT-M12002-05-R-XXX

M12 Cable A-Code 5 Pin Female Straight - Single-Ended Unshielded, PUR Jacket

Number of Positions:

  • Technical data
  • Overview
  • Certification
  • Download
General
Part TypeFemale
Number of Positions5
CodingA
OrientationStraight
Contact TerminationSolder Cup
Wire Gauge22AWG/0.34mm2
Cable ColourBlack/Customized
Mating Cycles≥500
Materials
Insulation MaterialPA66+GF
Contact MaterialPhosphor Copper
Contact FinishGold
Screw Nut MaterialNickel Plated/Zinc Alloy
Cable MaterialPVC/PUR/Customized
Overmolding MaterialPVC/TPU
SealFKM
Electrical
Rated Voltage250V
Rated Current4A
Contact Resistance≤5mΩ
Insulation Resistance≥100MΩ
ShieldingUnshielded/Shielded
Environmental
Protection RatingIP67(Mated)
Temperature Range-25°C ~ +80°C
