Products > Sensor Connector > M12 Series > M12 to RJ45 Panel Mount Adapter D-Code 4 Pin Female - Front Fastened, PUR Wires
product image

RHT-605-10141-4D-R-XXX

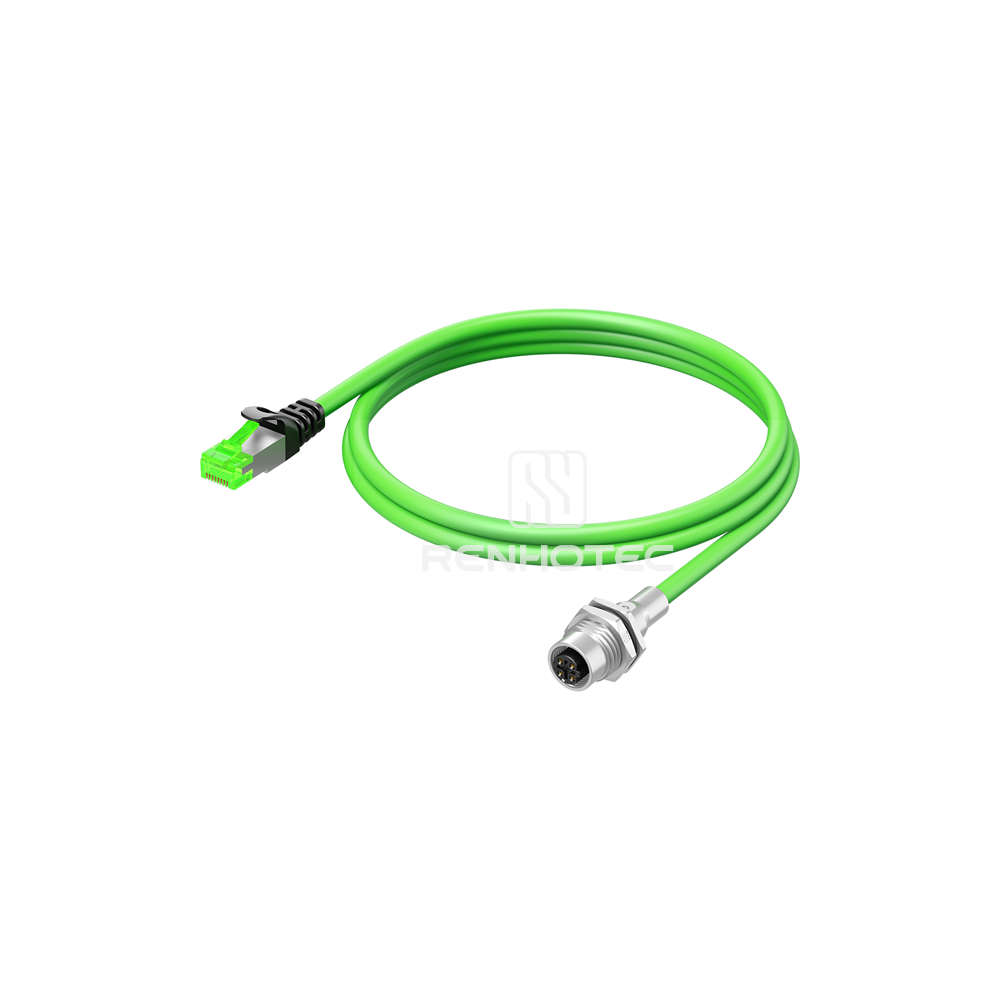

M12 to RJ45 Panel Mount Adapter D-Code 4 Pin Female - Front Fastened, PUR Wires

Cable Material:

PVC/CustomizedPUR/Customized

Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.


    Get a Quote
    Products >
    • Overview
    • Technical data
    • Certification
    • Download

    Product certification

    ×

    Product excerpt

    NElectricalEnvironmentalMaterialGeneral
    CodingD
    Part TypeFemale
    Screw Nut MaterialBrass/Nickel Plated
    Insulation MaterialPA66+GF
    Overmolding MaterialPVC/TPU
    Cable MaterialPUR/Customized
    Cable ColourGreen/Customized
    SealFKM
    Protection RatingIP67 (Mated)
    Mating Cycles??500
    Temperature Range-25?? ~ +80??
    N
    Wire Gauge22AWG/0.34mm2
    Contact Resistance??5m??
    Insulation Resistance??100M??
    Electrical
    Rated Current4A
    Environmental
    ShieldingEMI-Shielded
    Material
    Contact MaterialBrass
    General
    OrientationStraight

    Certification

    Renhotec REACH Test Report Download

    Catelog

    RENHOTEC M-Series Connector Catalog [EN][CN] Download
