M16A-3SF-DN-F002

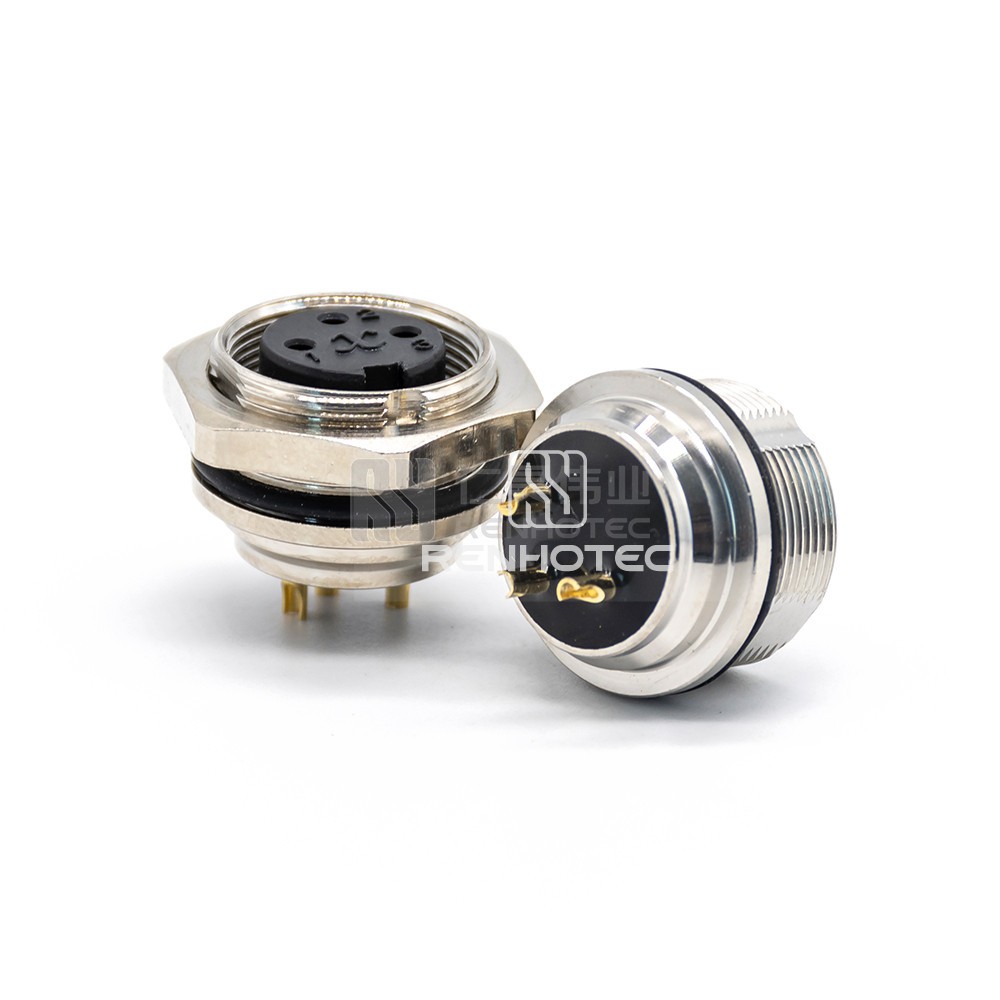

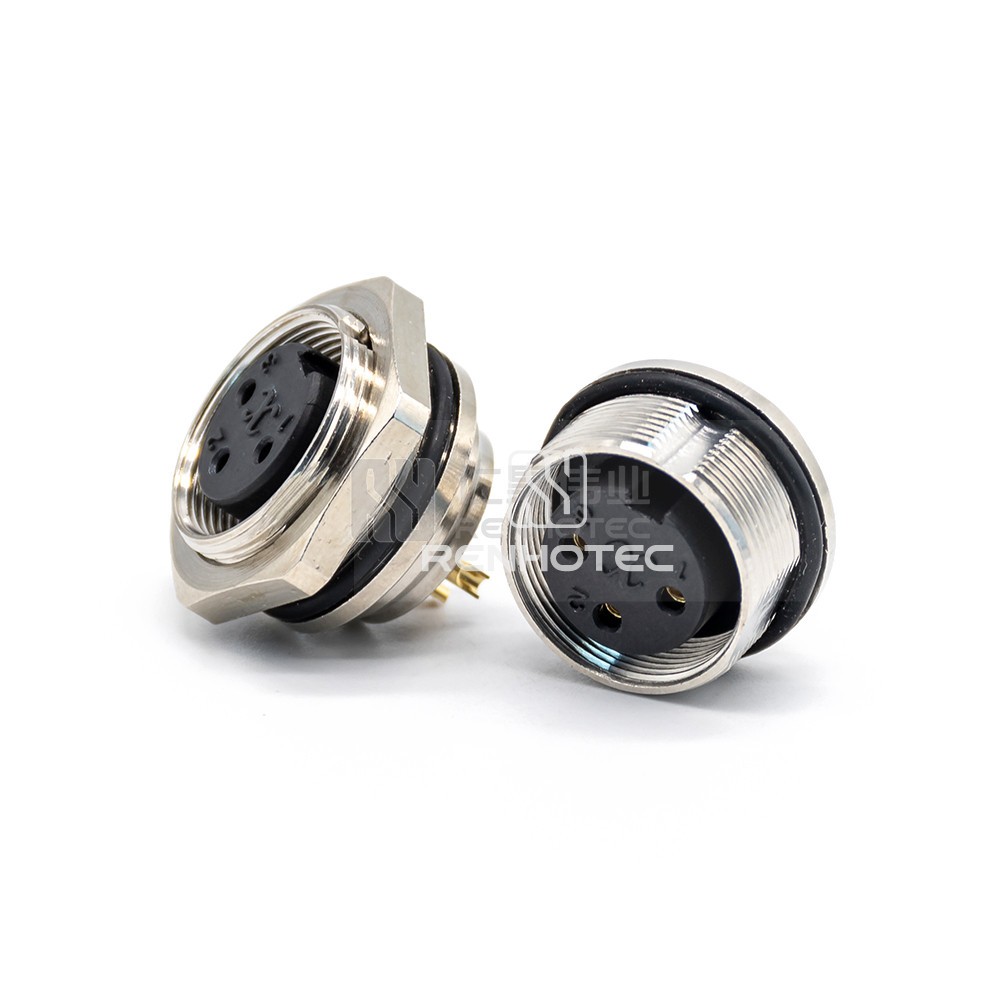

M16 Female Panel Mounting Socket 3Pos A Code Rear Fastened Straight Solder

Color
  1. Silver
Number of Positions
  1. 3
  2. 4
  3. 5
  4. 6
  5. 7
  6. 8
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality M16 female panel mounting socket with 3 positions and A code. Rear fastened design for secure installation. Straight solder contacts for reliable connections. Ideal for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions3
    KeyA
    Contact TerminationSolder Cup

    Shell

    Shell SizeM16

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current7A
    Rated Voltage250V
