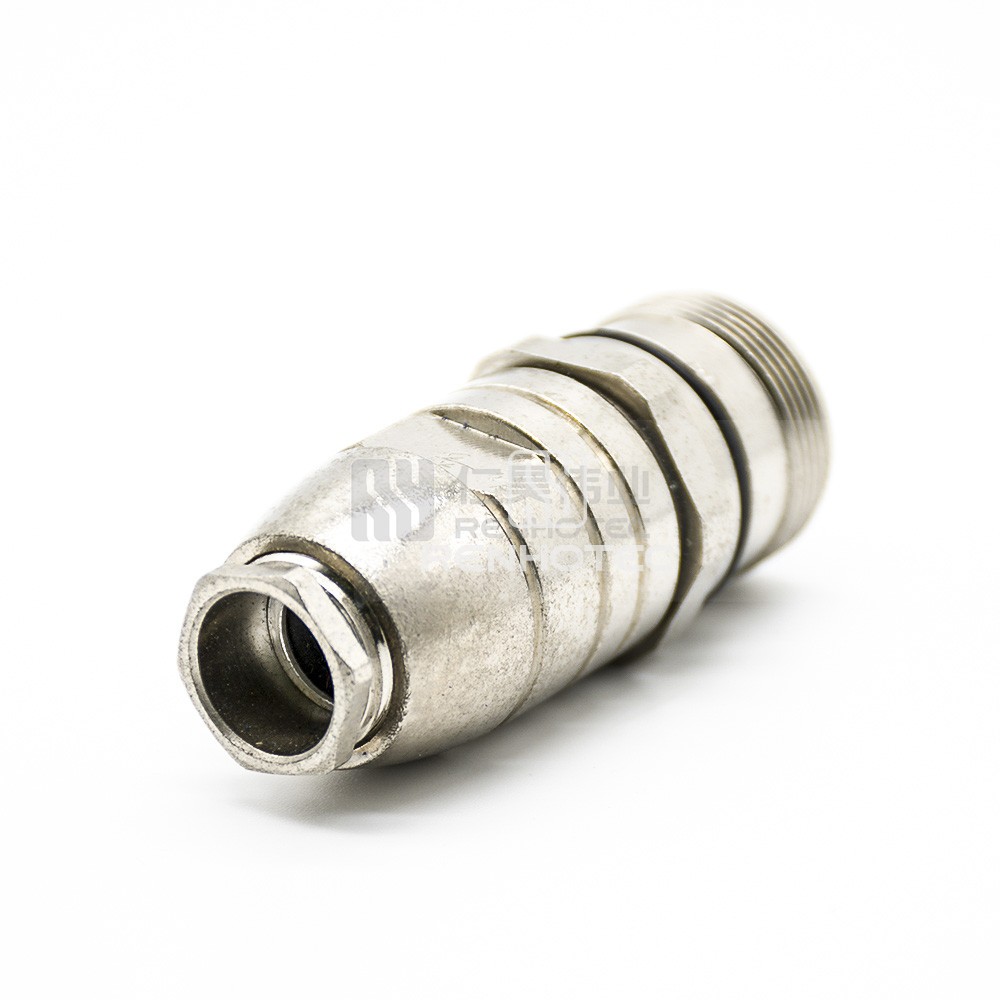

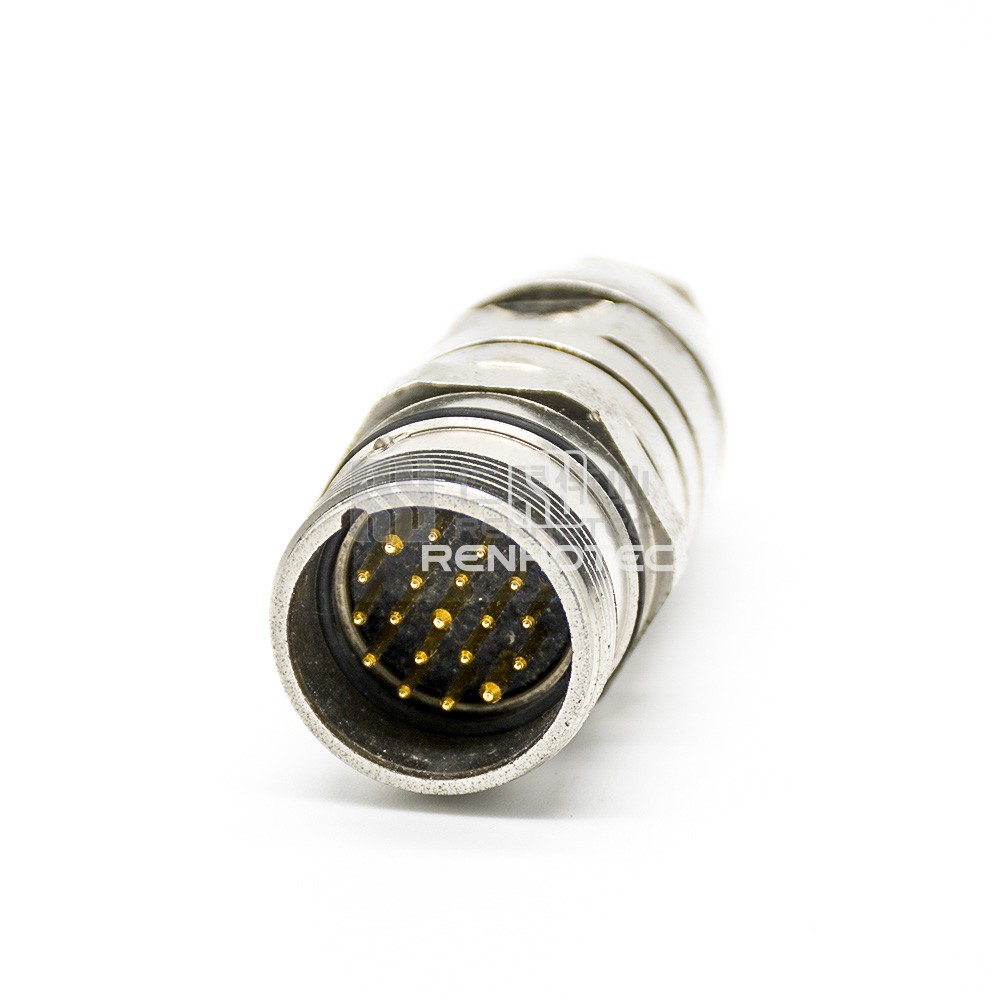

Products > Sensor Connector > M23 Series > M23 Signal Field Assembly Connector: Male, Straight, 19-Pin, Screw Contacts, Silver Housing, Shielded
- Technical data
- Overview
- Certification
- Download
| General | |
|---|---|
| Connector Type | Plug |
| Number of Positions | 19 |
| Contact Type | Male Pin |
| Key | A |
| Orientation | Straight |
| Shell Size | M23 |
| Mounting Type | Cable Type |
| Fastening Type | Threaded |
| Contact Termination | Outer Screw |
| Materials | |
|---|---|
| Shell Material | Copper Alloy |
| Shell Finish | Zinc Plated |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Electrical | |
|---|---|
| Rated Voltage | 260V |
| Rated Current | 8A |
| Shielding | Shielded |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -25°C ~ + 85°C |
Product excerpt
- Reliable Connection – Ensures stable and efficient signal transmission for industrial applications.
- Shielded Design – Reduces electromagnetic interference (EMI) for enhanced signal integrity.
- Screw Contacts for Secure Wiring – Provides a strong, vibration-resistant connection for long-term reliability.
- Durable Silver Housing – Corrosion-resistant construction for use in harsh environments.
