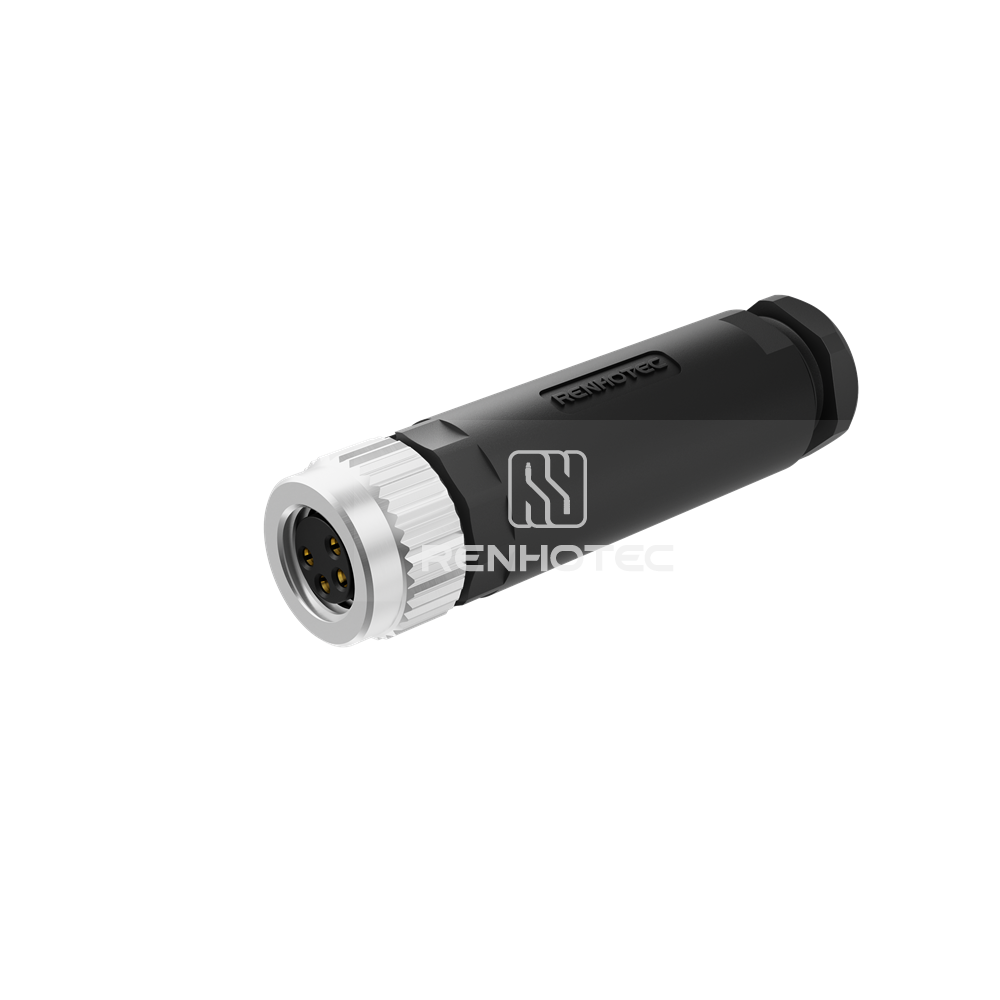

Products > Circular Connector > M8 Female Field Wireable Plug 4 Pin A Code Unshielded Straight Screw Contacts
- Overview
- Technical data
- Catalog
- Certificate
Product certification
Easily connect cables with this M8 female field wireable plug featuring 4 pins, A code, unshielded design, and straight screw contacts. Ideal for various industrial applications.
General
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 4 |
Key | A |
Contact Termination | Inner Screw |
Shell
Shell Size | M8 |
Mechanical
Fastening Type | Threaded |
Mounting Type | Cable Type |
Material
Shell Material | PA66+GF |
Contact Finish | Gold |
Contact Material | Copper Alloy |
Environmental
Ingress Protection | IP67 |
Operating Temperature | -25°C ~ + 85°C |
Electrical
Shielding | Unshielded |
Rated Current | 3A |
Rated Voltage | 60V |
M8 M12 M16 Connector AGC07686211202-002 REACH | Download |
