RHT-634-3282-05

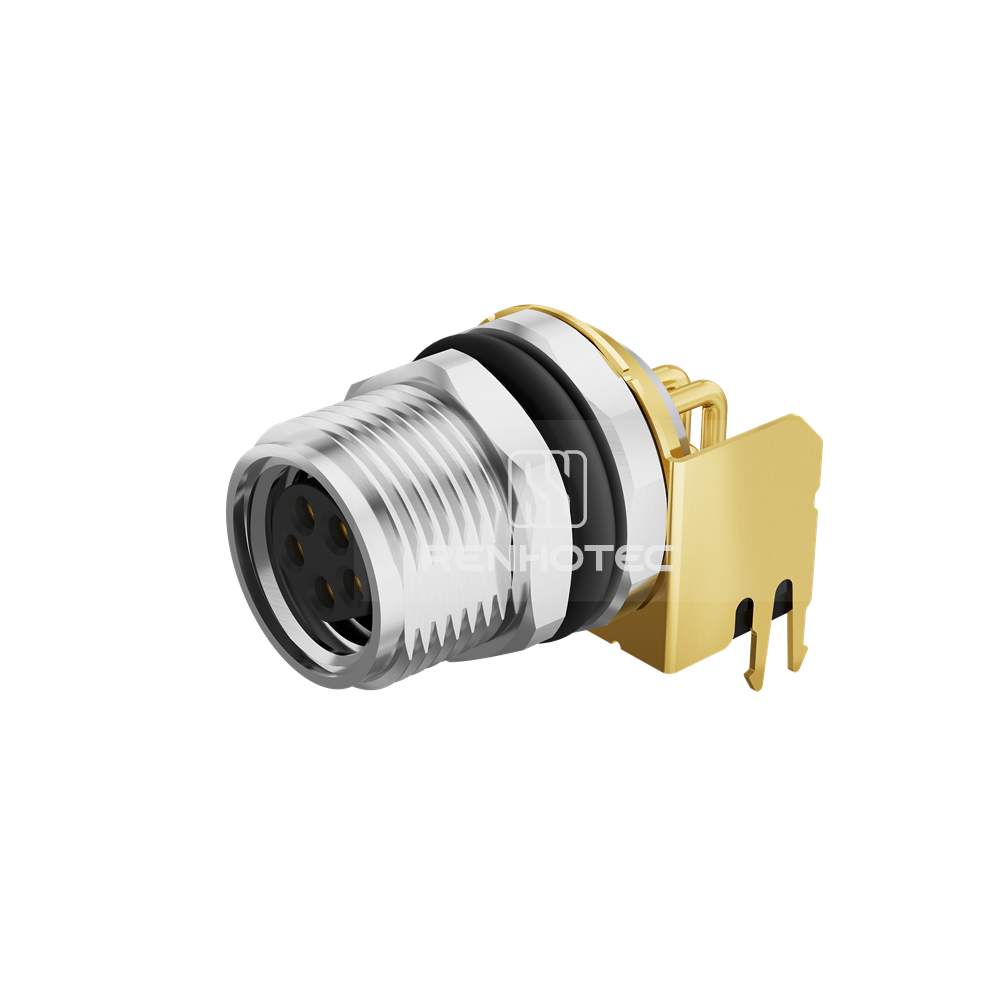

M8 Female Panel Mount Receptacle 5 Pin B Code Shielded Right Angle PCB

Color:

Silver

Number of Positions:

34568
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

Ensure secure connections with the M8 Female Panel Mount Receptacle. This shielded receptacle features 5 pins, B code compatibility, and a right-angle PCB design for convenient installation.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationRight Angle
Contact TypeFemale Pin
Number of Positions5
KeyB
Contact TerminationThrough Hole
Material
Shell MaterialCopper Alloy
Shell FinishZinc Plated
Contact FinishGold
Contact MaterialCopper Alloy
Mechanical
Fastening TypeThreaded
Mounting TypePanel Mount
Mounting FeatureBulkhead
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 85°C
Shell
Shell SizeM8
Electrical
ShieldingShielded
Rated Current3A
Rated Voltage60V

Certification

M8 M12 M16 Connector AGC07686211202-002 REACH Download
Drawing for M8 Female Panel Mount Receptacle Shielded Right Angle PCB Download

Catelog

RENHOTEC M-Series Connector Catalog [EN][CN] Download
