RHT-634-0160

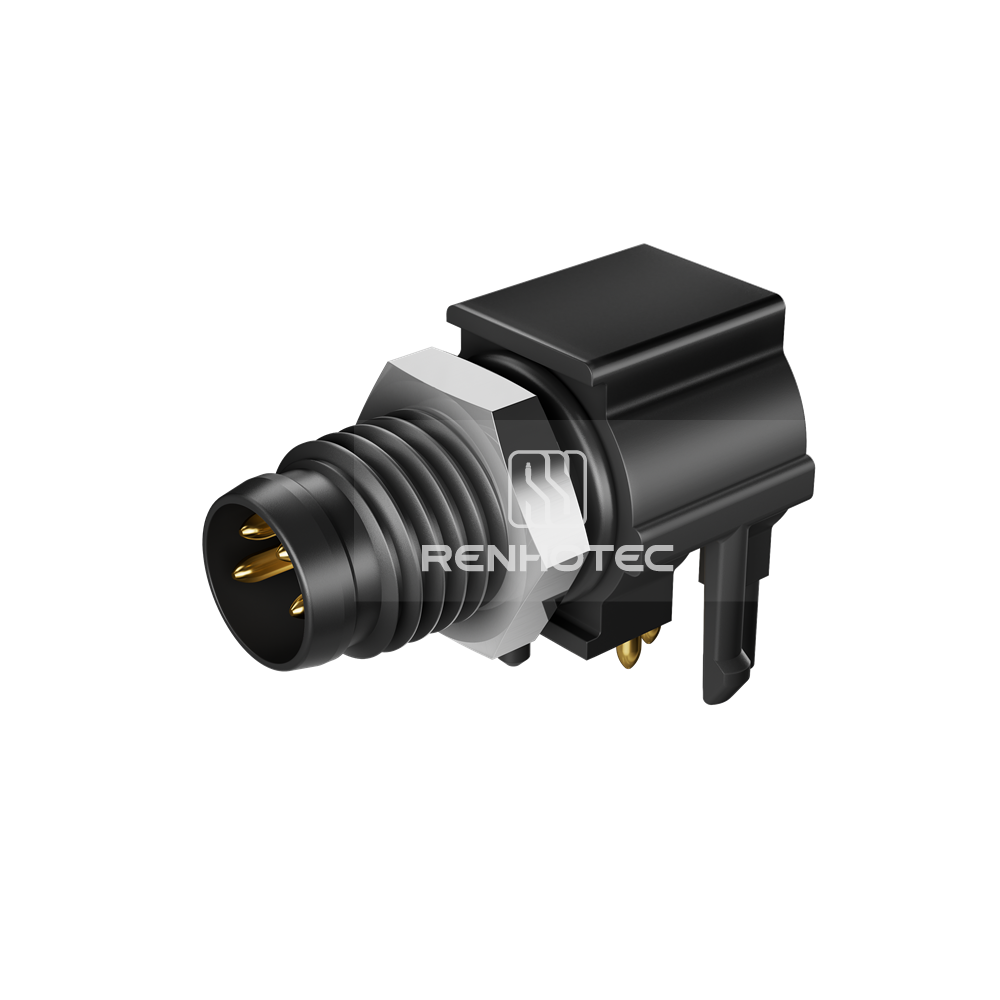

M8 Male Panel Mount Receptacle 4 Pin A Code Unshielded Right Angle PCB

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    High-quality M8 male panel mount receptacle with 4 pins, A code, unshielded design for right-angle PCB mounting. Ideal for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationRight Angle
    Contact TypeMale Pin
    Number of Positions4
    KeyA
    Contact TerminationThrough Hole

    Shell

    Shell SizeM8

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead

    Material

    Shell MaterialPA66+GF
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current3A
    Rated Voltage60V
