RHT-634-1307-06

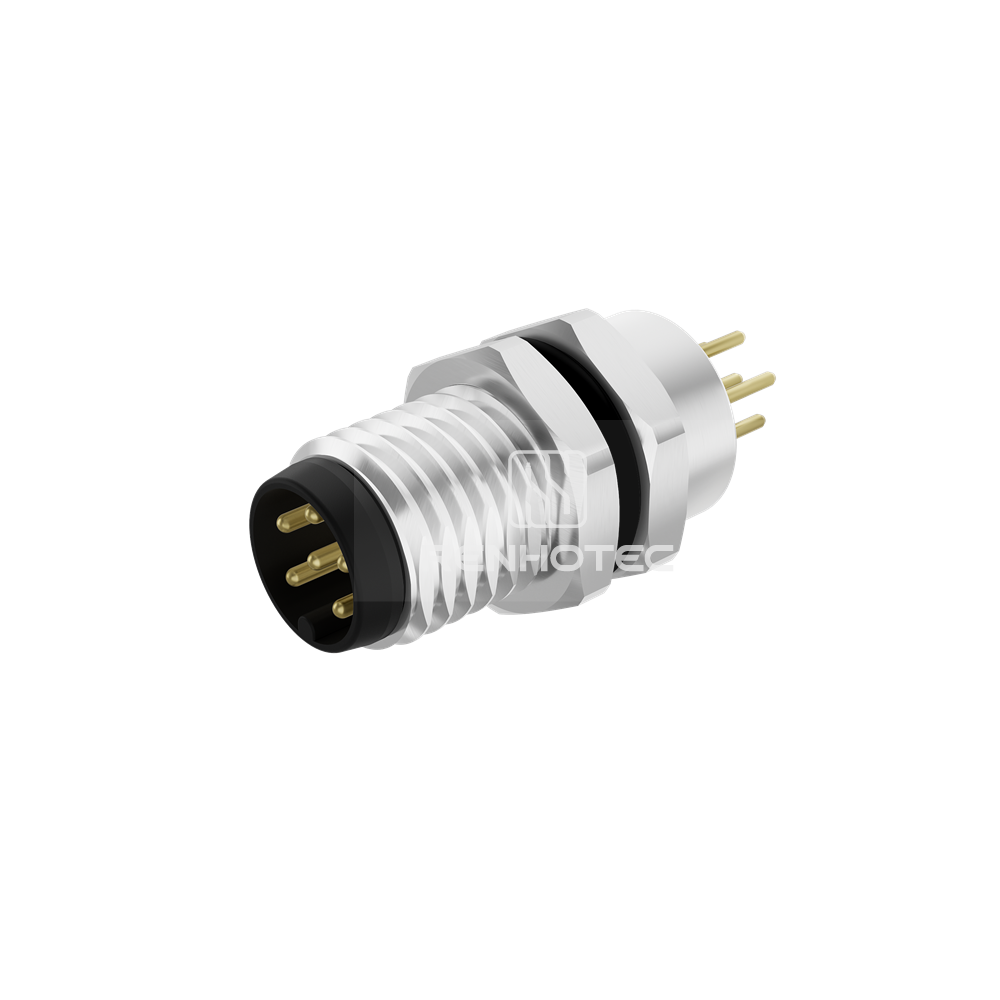

M8 Male Panel Mount Receptacle 6 Pin A Code Front Fastened Straight PCB M8

Color:

Silver

Number of Positions:

34568
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

  1. 6 Pins (A-Coded): Provides reliable connections with precise alignment.
  2. A-Coded: Ensures proper orientation and compatibility.
  3. Front Fastened: Attaches securely to the panel from the front.
  4. Straight Orientation: Facilitates direct and straightforward mounting on PCB (Printed Circuit Board).
  5. Panel Mount Design: Offers stability and durability for various industrial applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypeReceptacle
OrientationStraight
Contact TypeMale Pin
Number of Positions6
KeyA
Contact TerminationThrough Hole
Material
Shell MaterialCopper Alloy
Shell FinishZinc Plated
Contact FinishGold
Contact MaterialCopper Alloy
Mechanical
Fastening TypeThreaded
Mounting TypePanel Mount
Mounting FeatureBulkhead
Environmental
Ingress ProtectionIP67
Operating Temperature-25°C ~ + 85°C
Shell
Shell SizeM8
Electrical
ShieldingUnshielded
Rated Current1.5A
Rated Voltage30V

Certification

M8 M12 M16 Connector AGC07686211202-002 REACH Download
Drawing for M8 Male Panel Mount Receptacle Front Fastened Straight PCB Download

Catelog

RENHOTEC M-Series Connector Catalog [EN][CN] Download
