RHT-634-3259-04

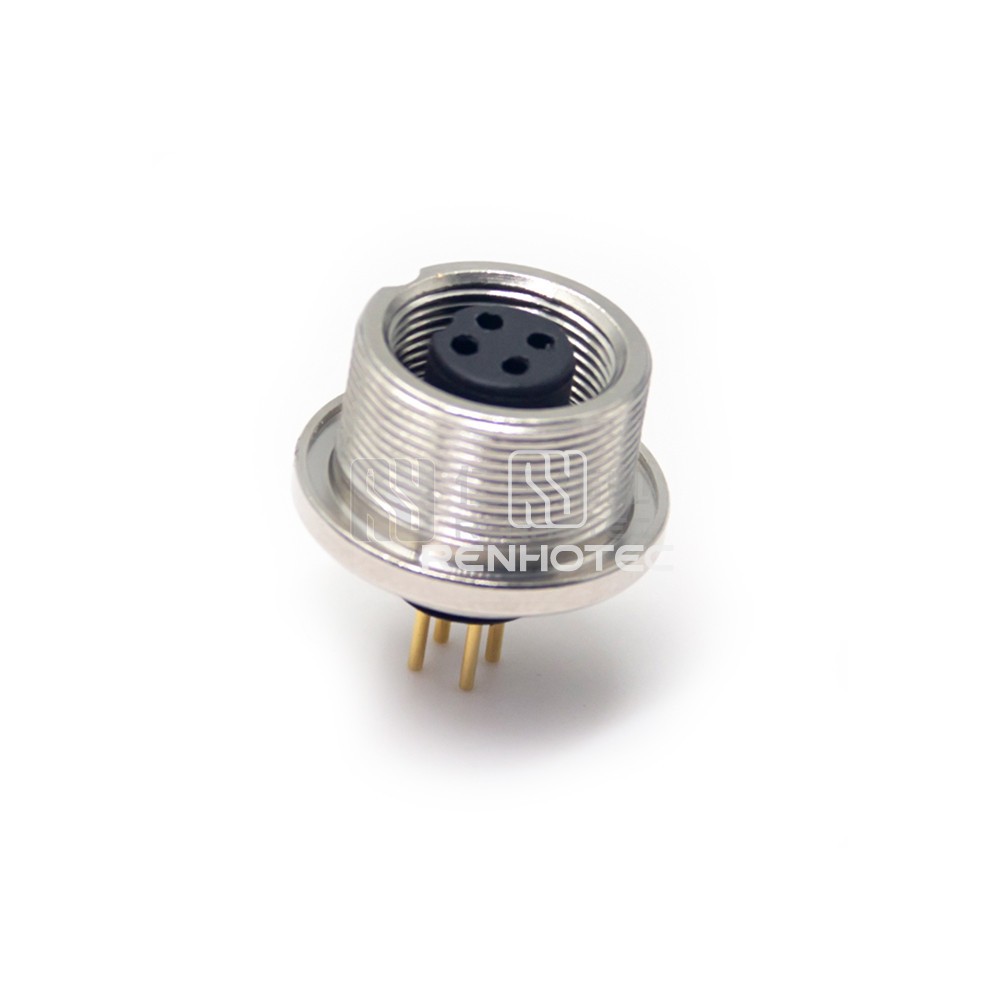

M9 Female Panel Mounting Receptacle 4 Pin Front Fastened Straight PCB

Color
  1. Silver
Number of Positions
  1. 4
  2. 8
  3. 7
  4. 6
  5. 5
  6. 3
  7. 2
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    This M9 female panel mounting receptacle features 4 pins, front fastened design, and is straight PCB mounting, ideal for various electronic applications.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeFemale Pin
    Number of Positions4
    Contact TerminationThrough Hole

    Shell

    Shell SizeM9

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current3A
    Rated Voltage125V
