Products > Circular Connector > M9 Male Panel Mounting Receptacle 6 Pin Front Fastened Straight Solder

RHT-634-3257-06

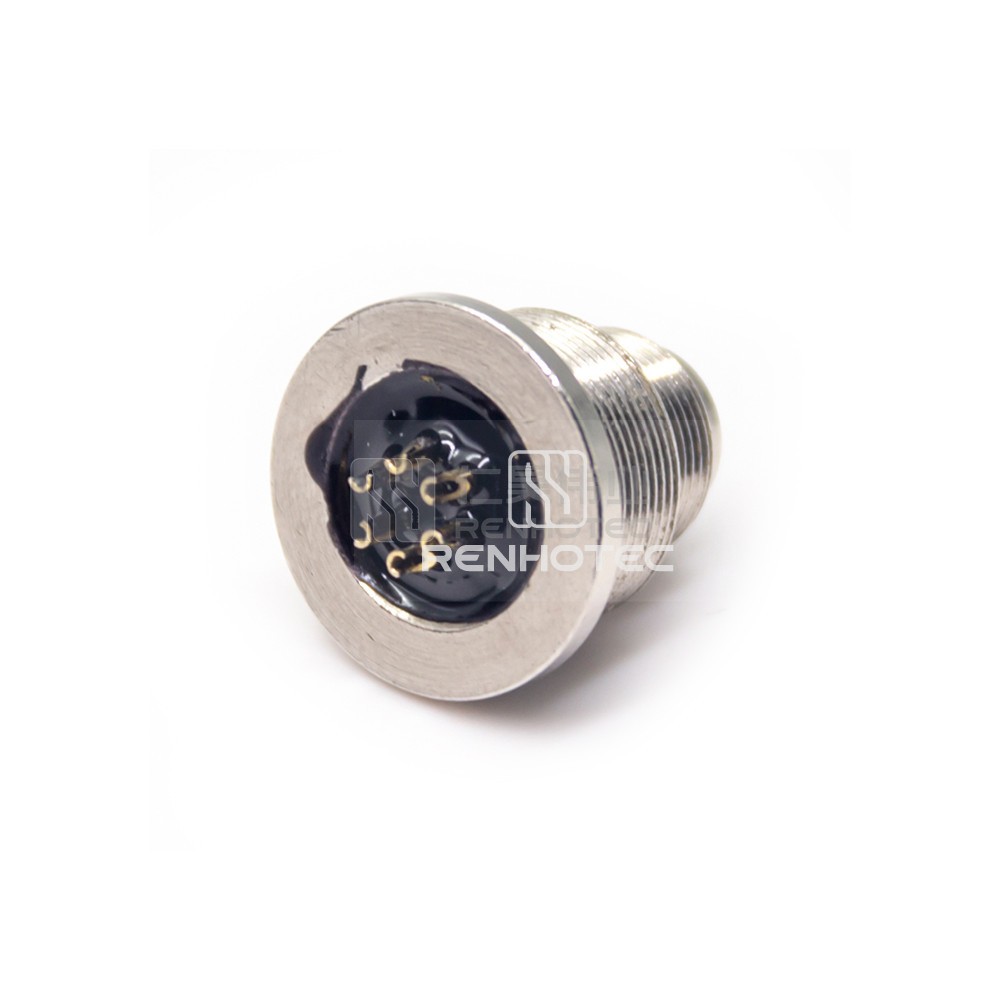

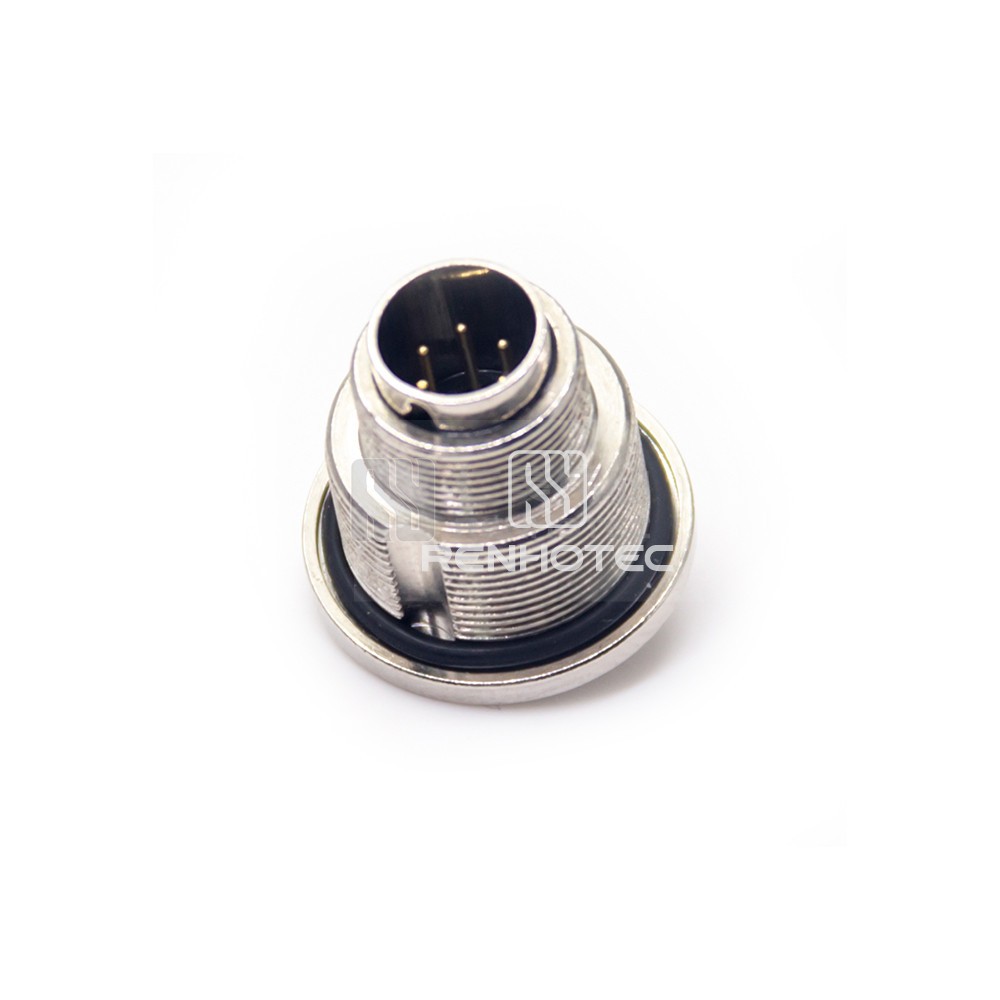

M9 Male Panel Mounting Receptacle 6 Pin Front Fastened Straight Solder

Color
  1. Silver
Number of Positions
  1. 6
  2. 8
  3. 7
  4. 5
  5. 4
  6. 3
  7. 2
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    This M9 male panel mounting receptacle with 6 pins is designed for front fastened straight solder applications. High-quality and durable construction for secure connections.

    1. General
    2. Shell
    3. Mechanical
    4. Material
    5. Environmental
    6. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions6
    Contact TerminationSolder Cup

    Shell

    Shell SizeM9

    Mechanical

    Fastening TypeThreaded
    Mounting TypePanel Mount

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 85°C

    Electrical

    ShieldingUnshielded
    Rated Current1A
    Rated Voltage125V
