Products > Circular Connector > Mini Change 7/8" Male Panel Mount Receptacle Rear Fastened Unshielded PCB Solder Straight 4 Pin

780010-4P

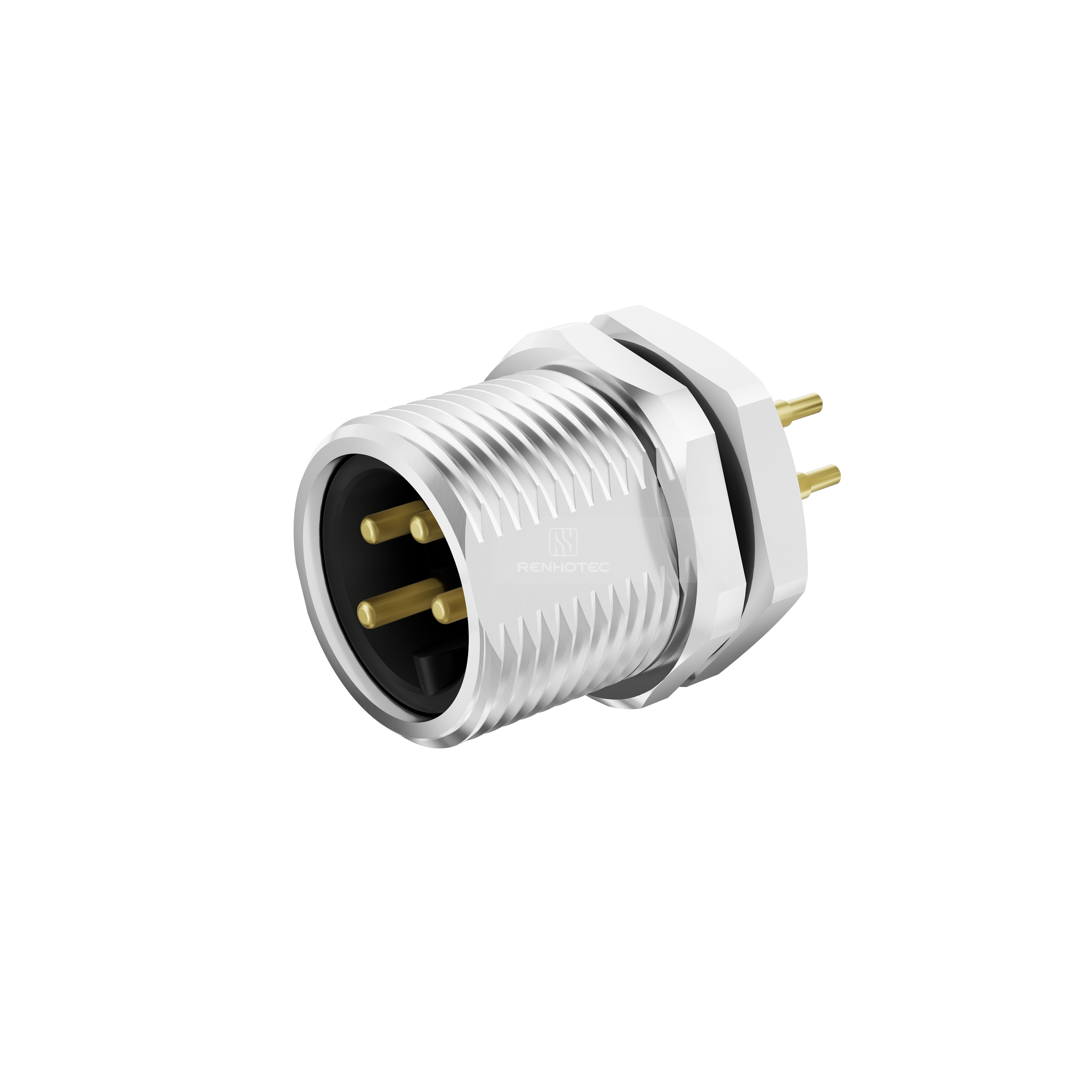

Mini Change 7/8" Male Panel Mount Receptacle Rear Fastened Unshielded PCB Solder Straight 4 Pin

Color
  1. Silver
Number of Positions
  1. 3
  2. 4
  3. 5
Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog

    High-quality Mini Change 7/8" male panel mount receptacle designed for easy rear fastening on unshielded PCBs. This straight 4-pin connector ensures secure and reliable solder connections.

    1. General
    2. Mechanical
    3. Material
    4. Environmental
    5. Electrical

    General

    Connector TypeReceptacle
    OrientationStraight
    Contact TypeMale Pin
    Number of Positions4
    ColorSilver
    Contact TerminationThrough Hole

    Mechanical

    Wire Gauge or Range6~8mm
    Fastening TypeThreaded
    Mounting TypePanel Mount
    Mounting FeatureBulkhead - Front Fastened

    Material

    Shell MaterialCopper Alloy
    Shell FinishZinc Plated
    Contact FinishGold
    Contact MaterialCopper Alloy

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-25°C ~ + 80°C

    Electrical

    ShieldingUnshielded
    Rated Current9A
    Rated Voltage300V
