1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight - NI1-1-S080-1AYA-C09
1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight - NI1-1-S080-1AYA-C09

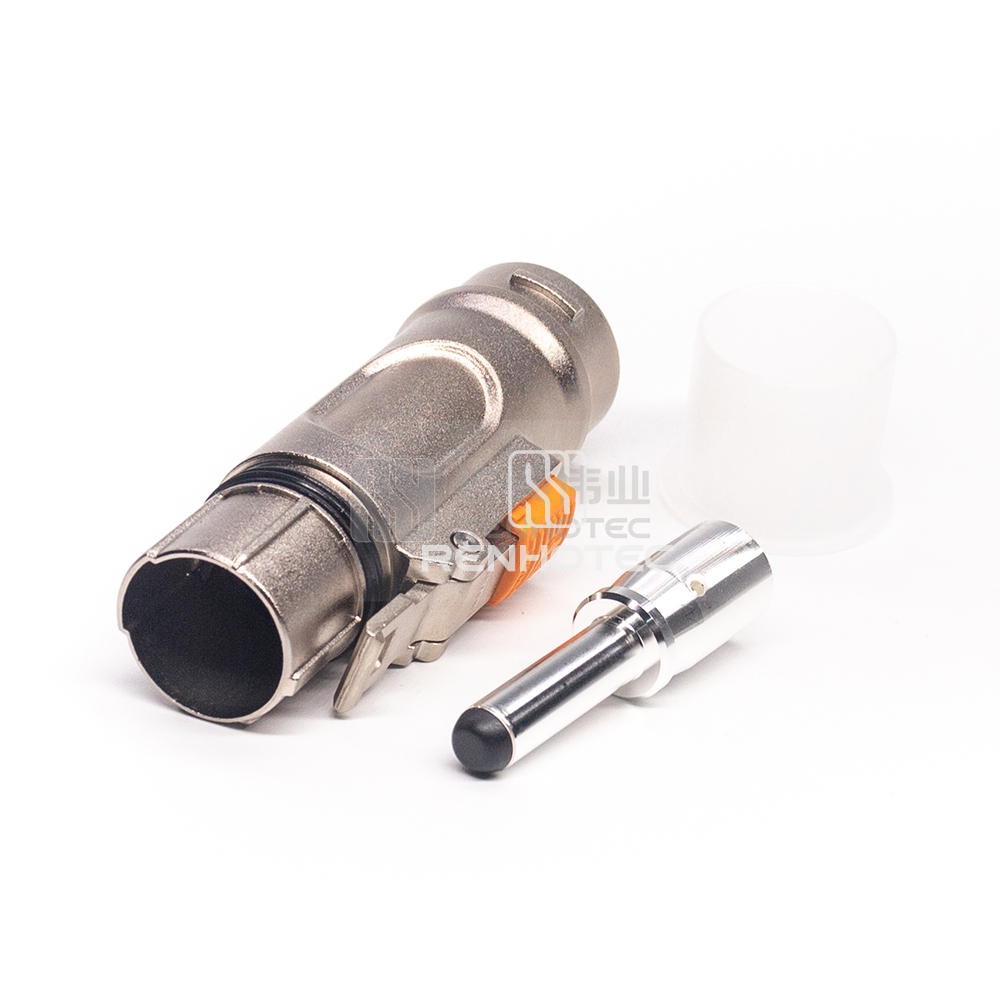

1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight product image

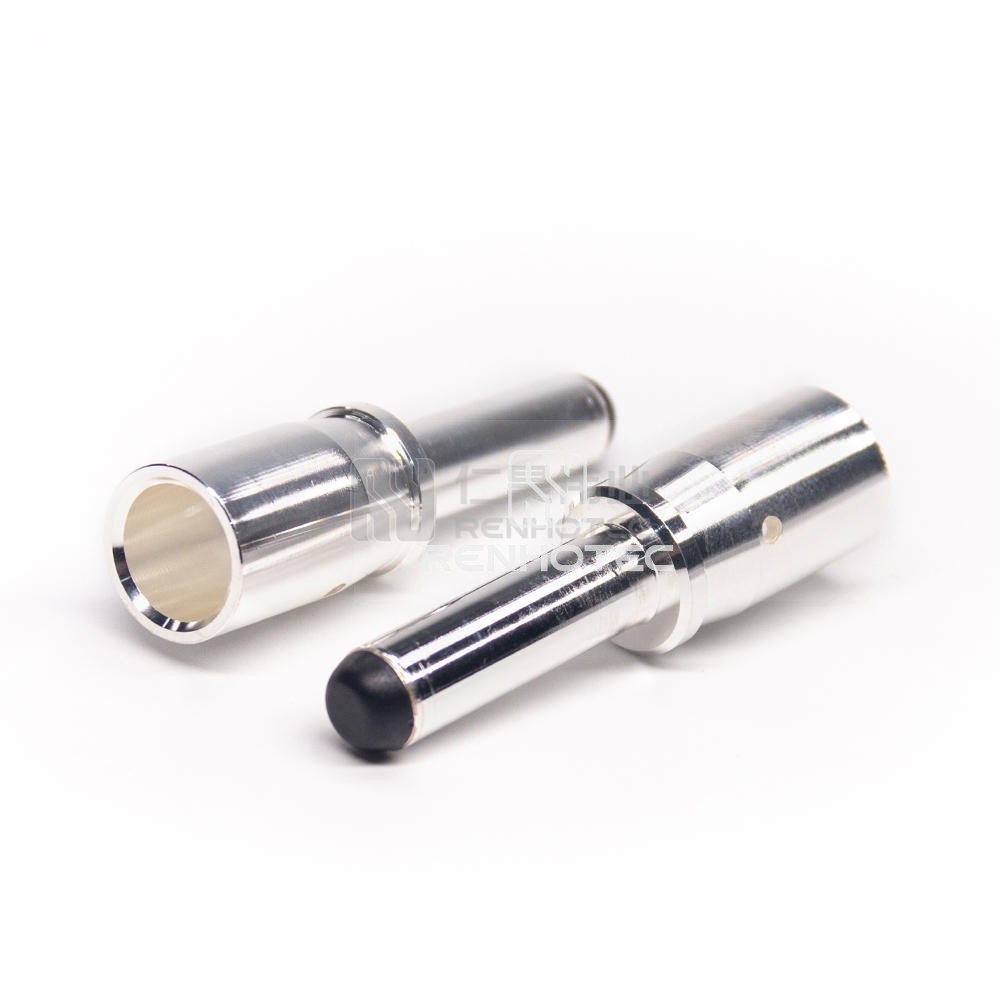

1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight product image

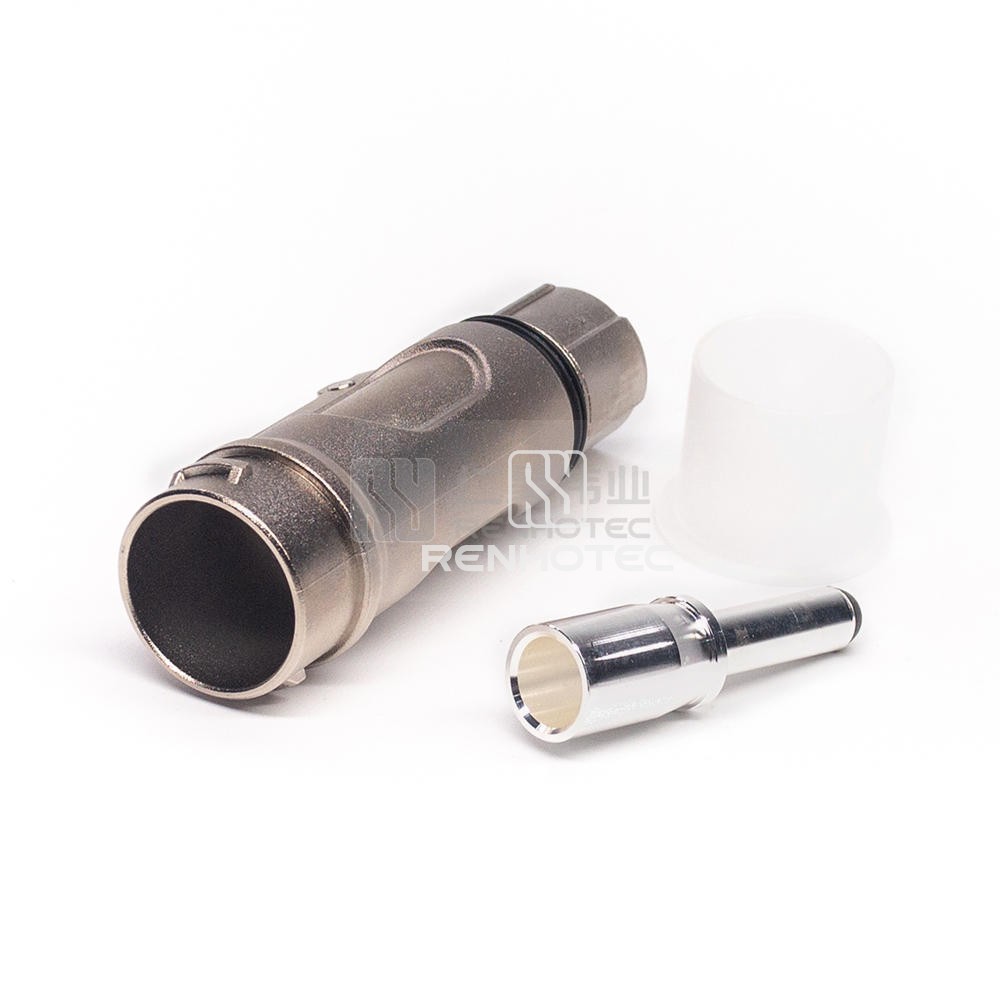

1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight product image

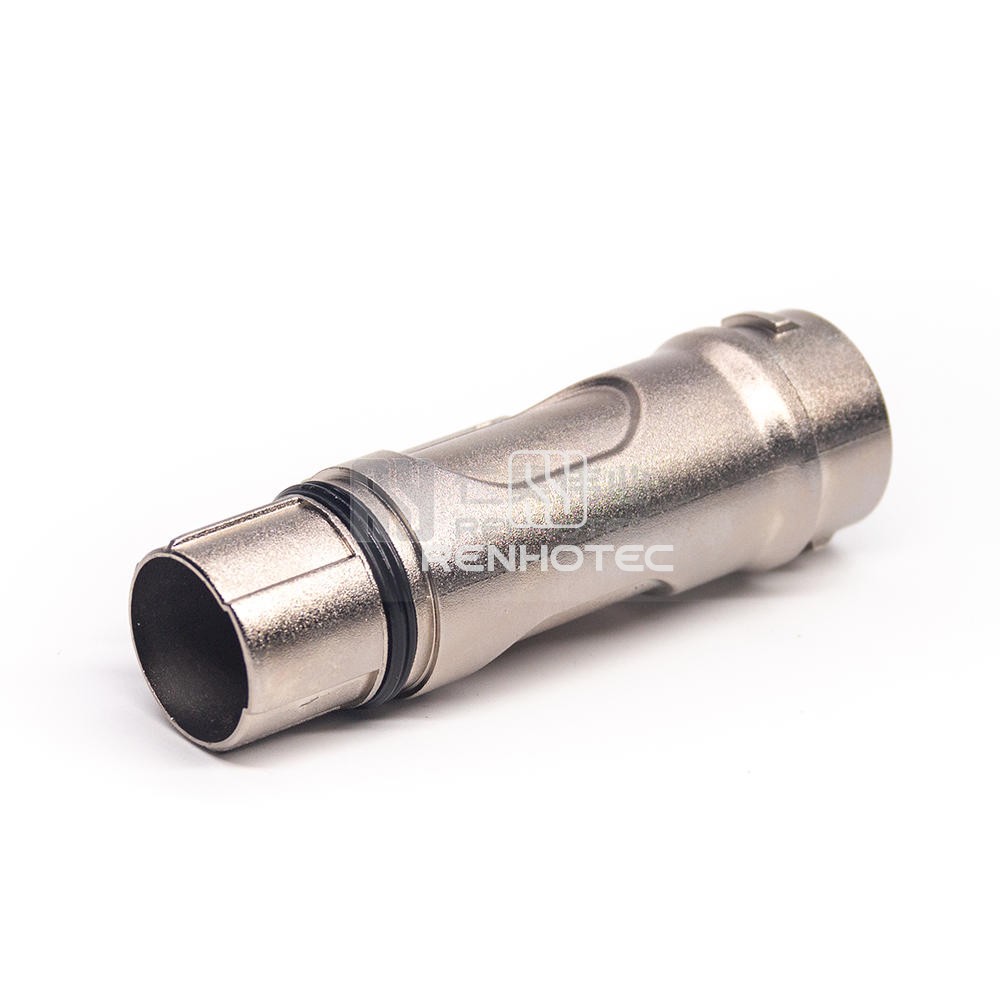

1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight product image

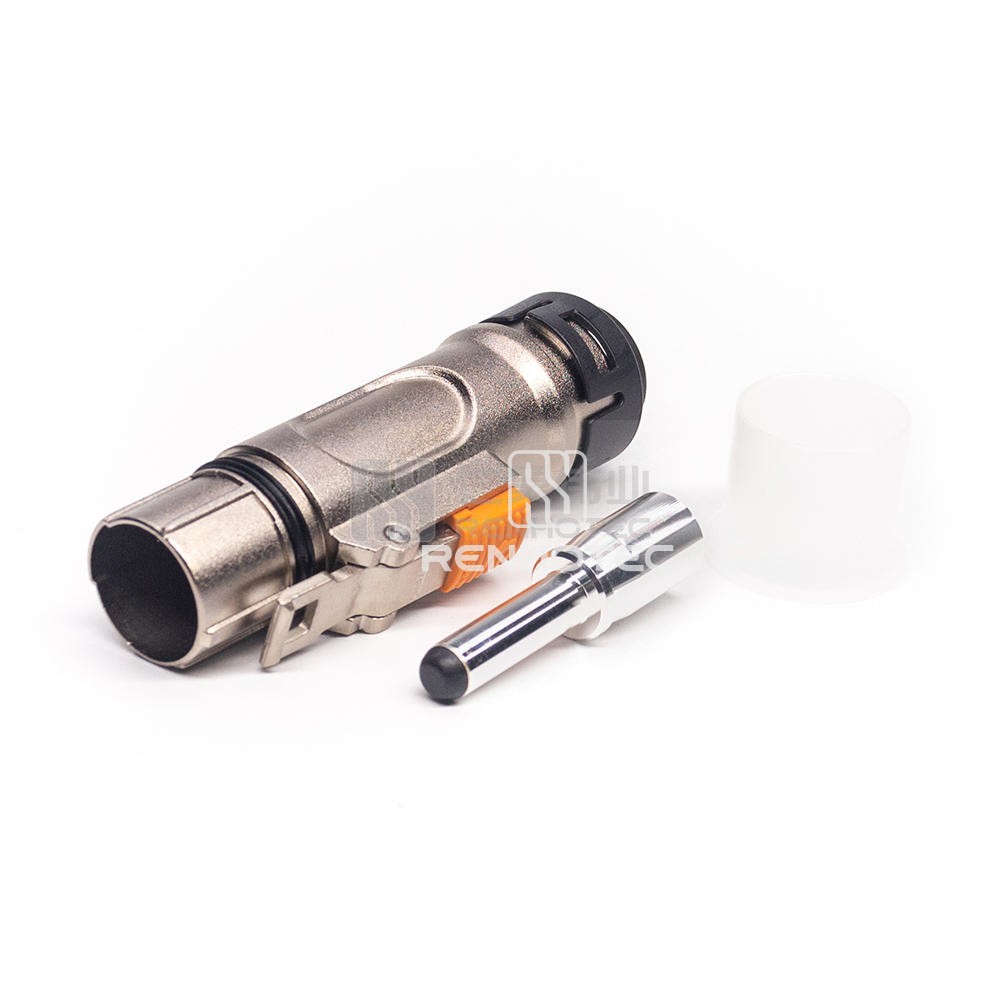

1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight product image

NI1-1-S080-1AYA-C09

1 POS High Voltage Interlock Connector Metal Plug 150A 35mm2 Shielded Cable A Key Straight

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions1
KeyA
OrientationStraight
Contact Size8mm
Mounting TypeCable Type
Contact TerminationCrimp
Wire Gauge or Range35mm²
ColorSilver
FeaturesIntegrated Internal HVIL
Materials
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Electrical
Rated Voltage800V
Rated Current150A
ShieldingShielded
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Product certification

Product excerpt

This high-quality metal plug connector is designed for high voltage applications with a current rating of 150A. Featuring shielded 35mm² cable connection and a specialized key straight design, this connector ensures secure and reliable power transmission in critical environments.
