3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight - NI1-1-S036-3AYN-C04
3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight - NI1-1-S036-3AYN-C04

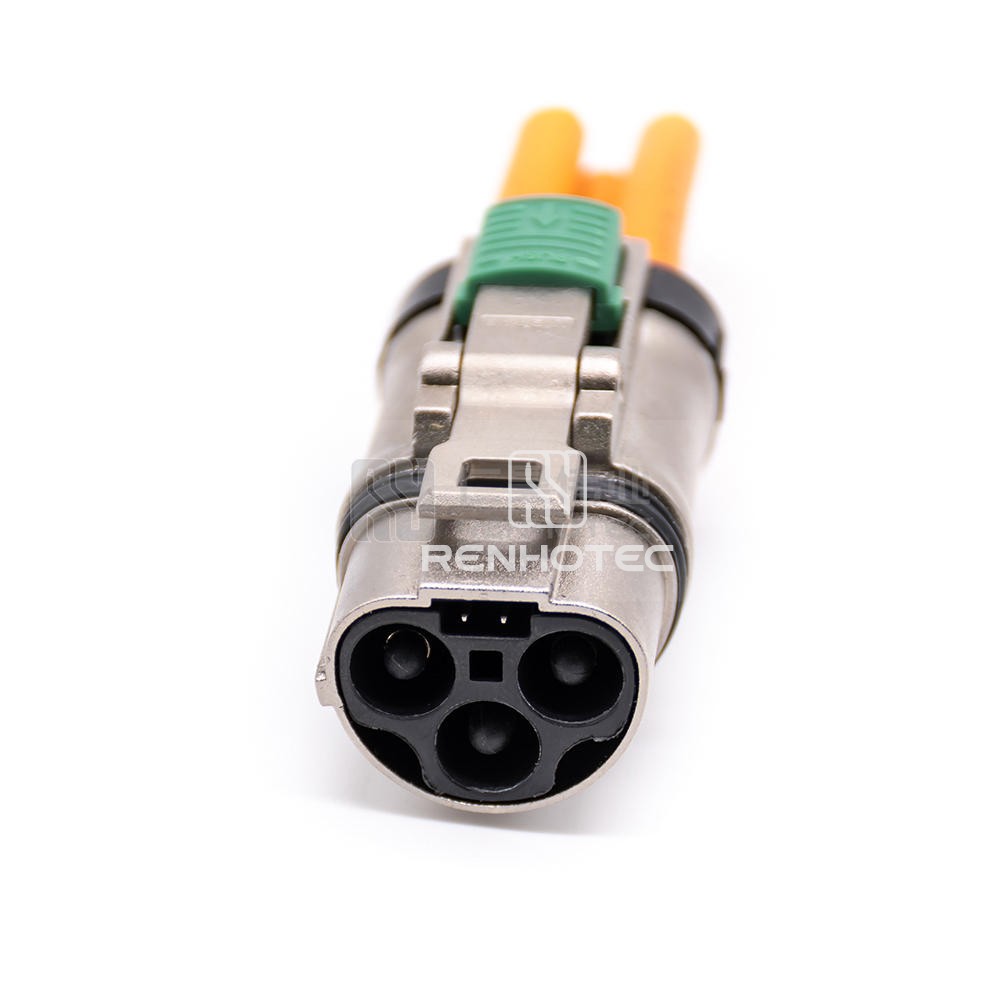

3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight product image

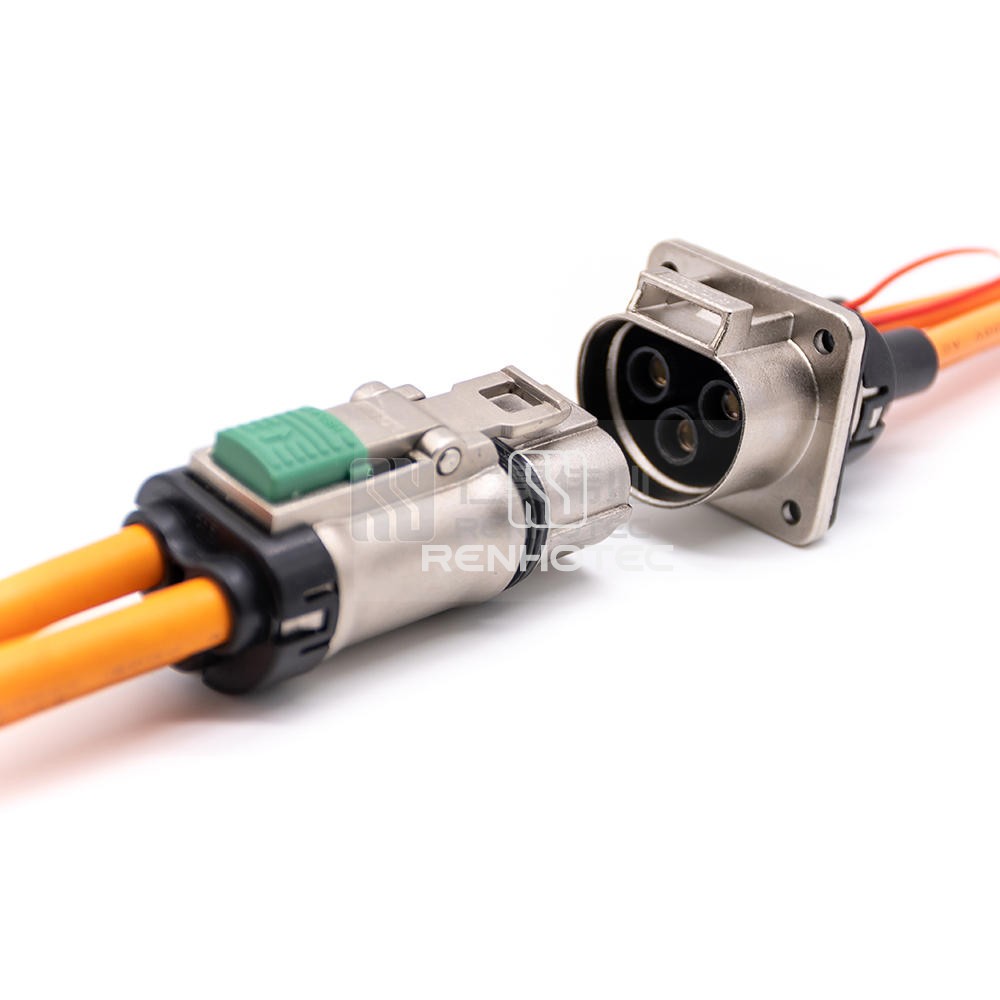

3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight product image

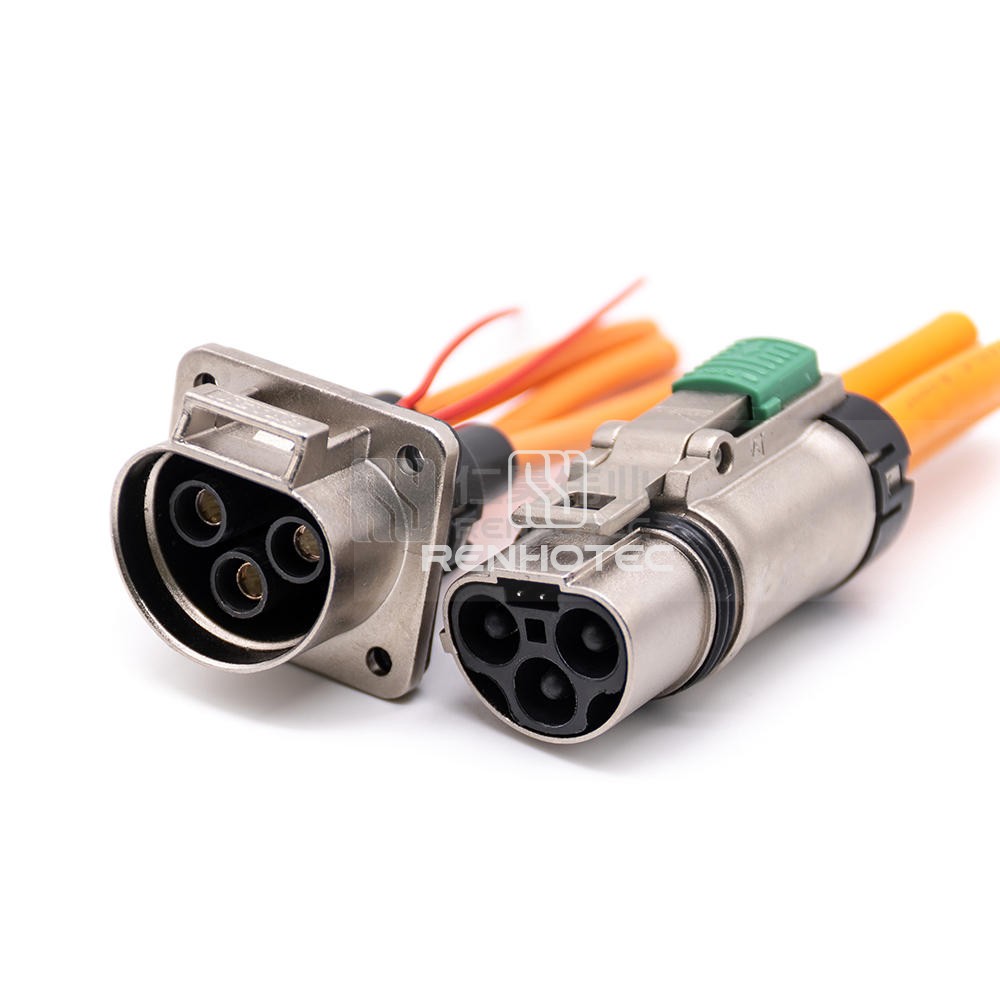

3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight product image

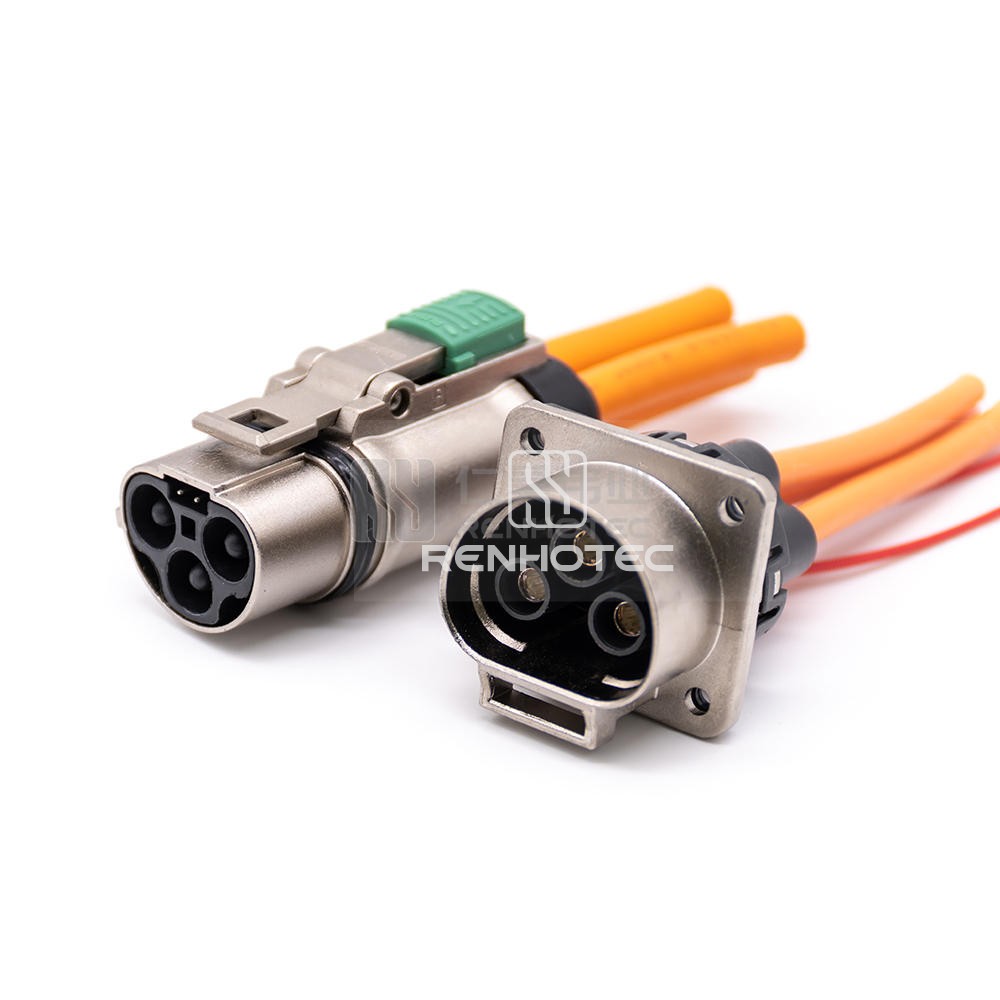

3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight product image

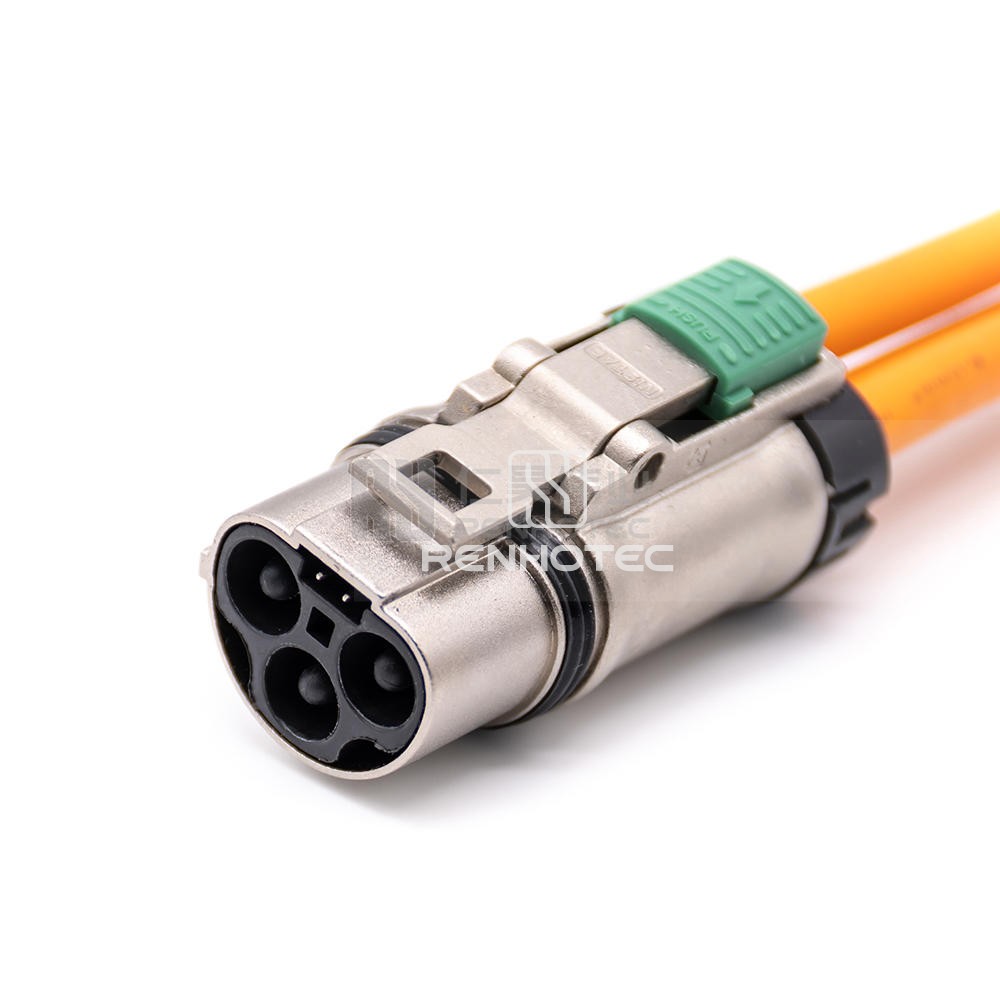

3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight product image

NI1-1-S036-3AYN-C04

3 POS High Power Electric vehicle Cable Plug 23A 4mm2 Shielded Cable A Key Straight

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions3
KeyA
OrientationStraight
Contact Size3.6mm
Mounting TypeCable Type
Contact TerminationCrimp
Wire Gauge or Range4mm²
ColorSilver
FeaturesIntegrated Internal HVIL
Materials
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Electrical
Rated Voltage800V
Rated Current23A
ShieldingShielded
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Product certification

Product excerpt

This 3 POS high-power electric vehicle cable plug features a 23A capacity, 4mm² shielded cable, and convenient A key straight design. Perfect for applications requiring reliable and efficient power transmission in electric vehicles.

Certification

Renhotec CE Certification Download

Catelog

RENHOTEC EV Product Catalog [EN] Download
RENHOTEC HVIL Connector Catalog [EN] Download
