Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Receptacle 200A M8 Busbar Lug A Key Box Mount




NI1-1-H080-1AYA-T08

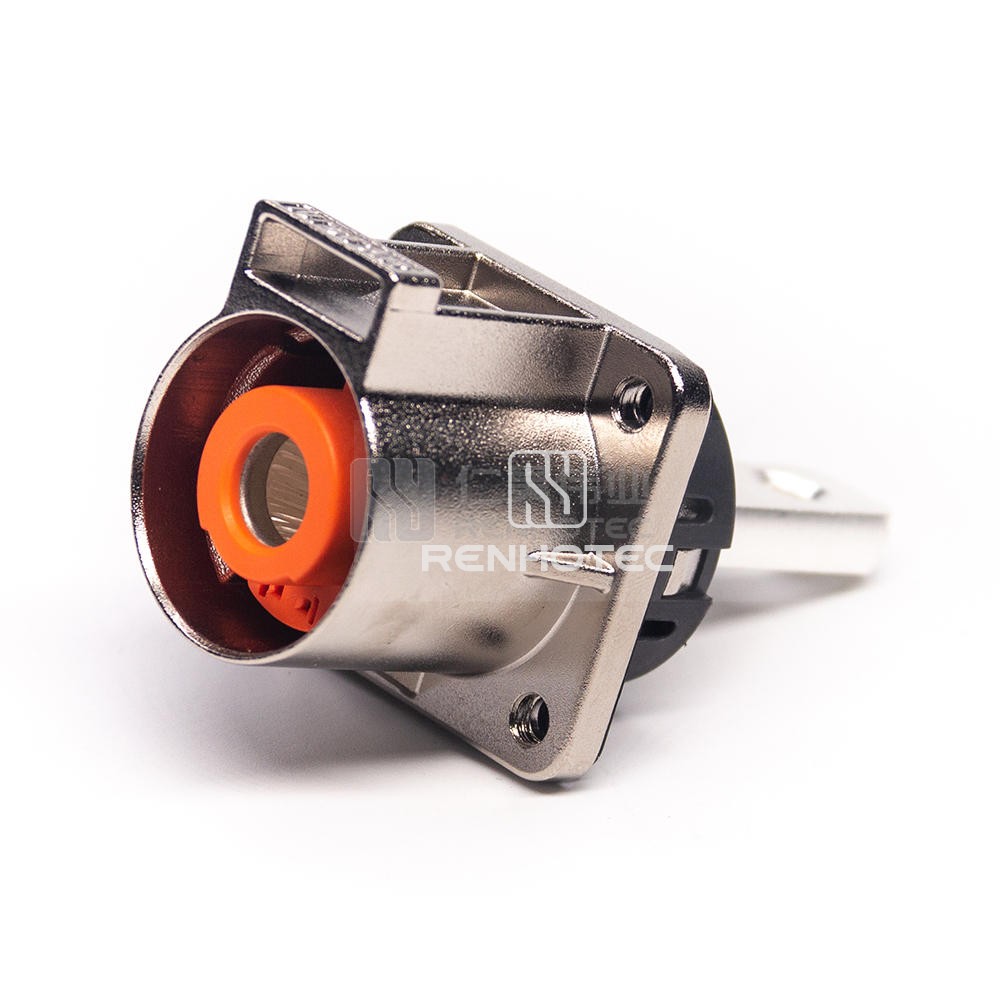

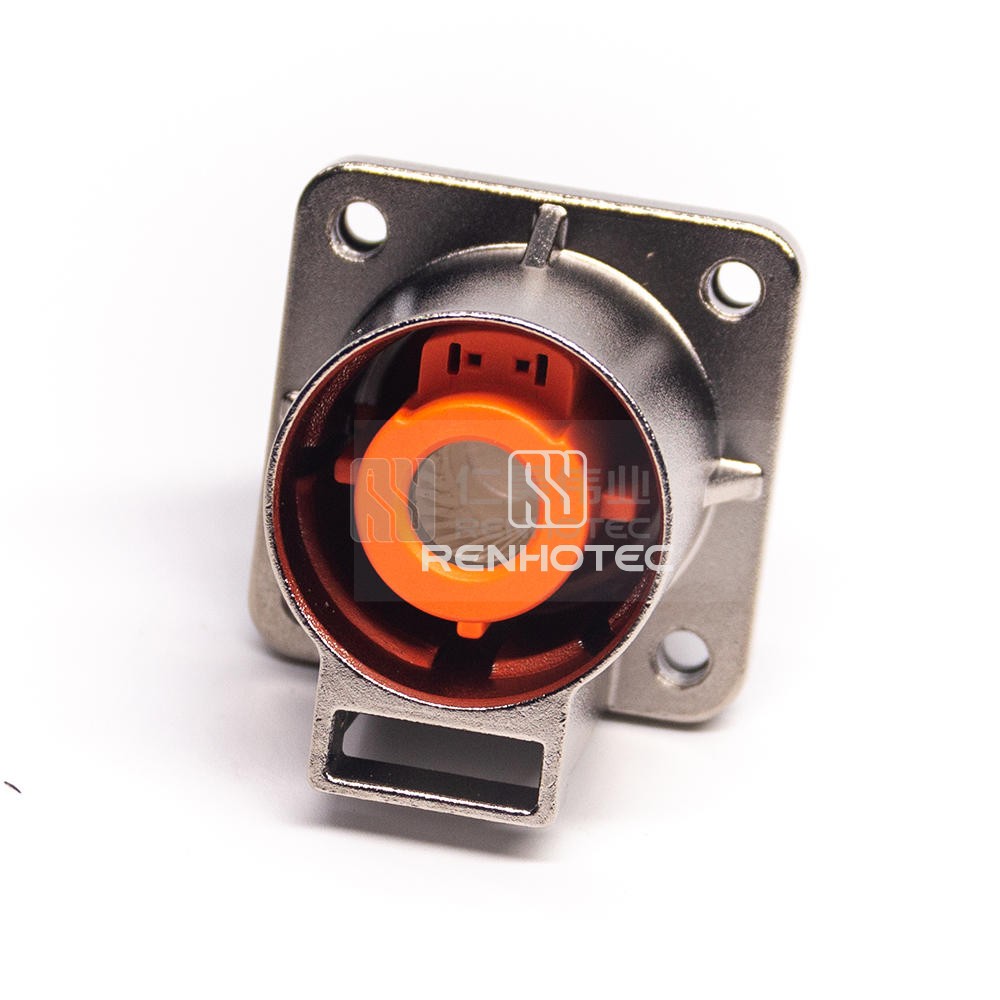

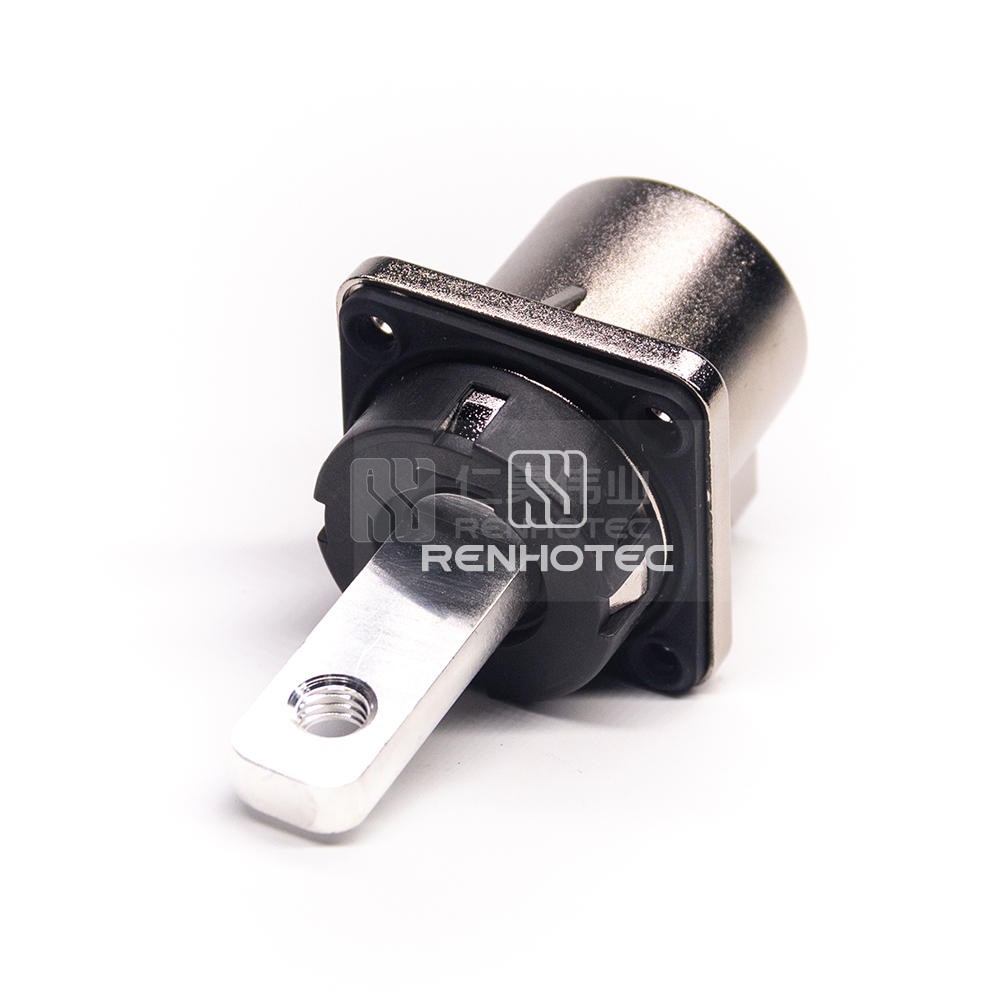

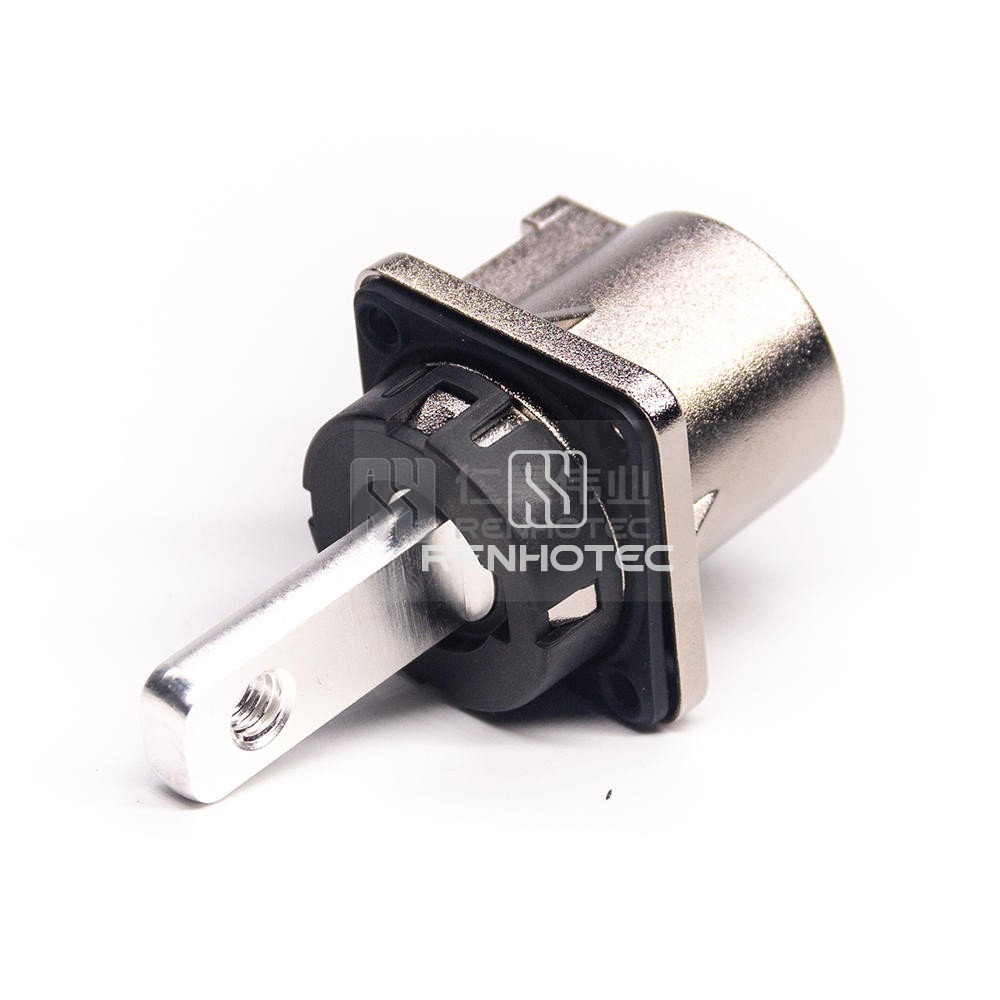

1 POS High Voltage Interlock Connector Metal Receptacle 200A M8 Busbar Lug A Key Box Mount
Complete the form below for a quick professional response. We guarantee to contact you within 24 hours.
- Technical data
- Overview
- Certification
- Download
| General | |
|---|---|
| Connector Type | Receptacle |
| Number of Positions | 1 |
| Key | A |
| Orientation | Straight |
| Contact Size | 8mm |
| Mounting Type | Panel Mount |
| Mounting Feature | Four Flange |
| Contact Termination | Busbar |
| Color | Silver |
| Features | Integrated Internal HVIL |
| Materials | |
|---|---|
| Shell Material | Zinc Alloy |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Electrical | |
|---|---|
| Rated Voltage | 800V |
| Rated Current | 200A |
| Shielding | Shielded |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
Product certification
Product excerpt
Securely connect high voltage equipment with this 1 POS Interlock Connector. Featuring a durable metal receptacle, 200A capacity, M8 Busbar Lug, and a Key Box Mount for easy installation. Ideal for applications requiring a reliable and high-performance connector solution.
