MCIO Cable Guide: x4, x8, Breakouts and U.2 Connections

One x8 port, two destinations. Will a breakout work?

Only if the host provides the required links. A passive MCIO breakout can route an x8 port to two x4 destinations, but it cannot configure the host or act as a PCIe switch. The port’s lane allocation and the receiving devices determine whether that connection will work.

Start with the motherboard or controller model and the receiving device: a backplane, another board, or a U.2 SSD. Record the port labels printed on both boards. That short description is more useful than ordering by a photograph or by “MCIO PCIe cable” alone.

The server and storage cable selection guide compares MCIO with the other families. For an MCIO route, work from the host’s electrical arrangement to the cable ends and the space available inside the chassis.

What is MCIO?

MCIO stands for Mini Cool Edge IO. It is a compact interconnect family used for connections inside servers and related equipment. MCIO connectors appear in board-to-board cable routes, storage backplane connections and other high-speed signal paths. A typical assembly combines the connector at each end with the conductors, shielding, termination and retention features needed for its intended channel.

Molex’s Mini Cool Edge family uses a 0.60 mm pitch and includes several circuit counts. Amphenol’s Mini Cool Edge IO family includes SFF-TA-1016 implementations. These describe connector families; the selected cable assembly still needs its own wiring and performance specification.

Read the connector, port label and drawing together

Connector size narrows the choices, but it does not complete identification. A latch, pull tab or familiar cable jacket can help you recognize the family. The connector drawing establishes the mating geometry and contact arrangement. The equipment manual establishes what the port is wired to do.

For a replacement, photograph both ends before removing the existing cable, including its label and the board labels beside the receptacles. If the replacement must exit in a different direction, include a view of the surrounding chassis. A close-up of an isolated plug cannot show the clearance around a fan wall, cover or neighboring port.

For a pinout, use the connector drawing with its stated viewing direction and the selected cable’s end-to-end wiring drawing. The host and destination assignments determine which lanes, reference-clock and sideband connections are required. MCIO is a signal interconnect, not a graphics-card power connector.

MCIO x4 and x8: lane width is only one part of the specification

For the PCIe arrangements discussed here, x4 and x8 describe four-lane and eight-lane connections. They are not PCIe generation numbers. A wider connection can carry more aggregate traffic at the same generation when the complete system uses that width, but an x8 cable cannot create additional lanes in the host or endpoint.

MCIO configurations include 38-contact x4 and 74-contact x8 connections. Amphenol’s connector selector lists those arrangements with sideband signals, and also lists alternative lane uses for the same contact counts. Treat pin count as an identification detail, not a universal pinout or protocol guarantee.

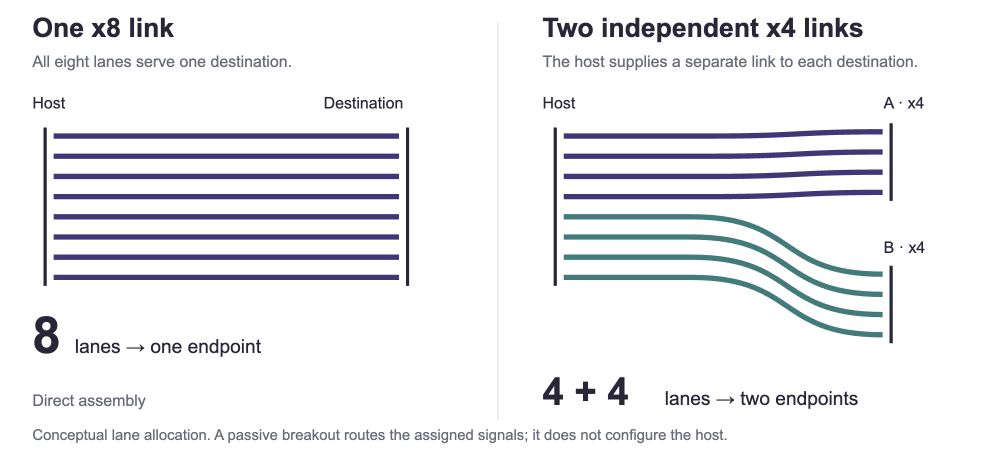

Why an x8 connector may serve more than one device

The host determines how its lanes are organized. Eight lanes may be used as one link, or allocated as separate links where the platform supports that arrangement. A passive breakout routes the assigned signals to separate connectors. It does not act as a PCIe switch or configure the host.

This is why an x8-to-two-x4 cable can be the correct physical shape yet still fail to expose two devices. Before changing the cable, check the exact port’s supported mode. Bifurcation support can depend on the board, processor, occupied slots and firmware configuration. ASUS’s bifurcation compatibility tables show how lane allocation varies by platform. Use the documentation for your own board and port.

Generation is a separate selection field. Amphenol notes that its Gen 5 and Gen 6 designs can retain the interface dimensions while changing internal design. Specify the required generation and assembly qualification; an x4/x8 label is not a speed rating.

Direct, breakout or drive cable?

Direct MCIO connections

A direct assembly has one MCIO connector at each end. It suits a route where both boards expose the required MCIO interfaces. The two ends can have different mechanical orientations while retaining the specified connection arrangement.

For an x8 route, Renhotec lists straight-to-right-angle, right-exit-to-left-exit and straight-to-straight configurations. For x4, the range includes a straight-to-right-angle option and an MCIO-to-MCIO assembly. Choose the ends against the installed receptacles and nearby structure, rather than assuming that the visually shortest route is the easiest to assemble or service.

MCIO x8 to two x4 branches

RHT-726-0003 presents one MCIO x8 end and two MCIO x4 ends. It is a candidate when the system requires that physical arrangement. The connection drawing must identify which lanes and supporting signals go to each branch.

Record the destination of each branch by its port label. A cable that reaches both receptacles can still be assembled incorrectly if the two branches are exchanged in a design that assigns them different roles. Branch labels are useful during assembly, replacement and fault isolation.

If two independent PCIe endpoints are connected directly, check how the host supplies the two links. If the destination is a backplane, first identify whether that backplane routes lanes directly or contains active devices. Drive count alone does not describe the upstream connection requirements.

MCIO x8 to two SlimSAS 4i branches

RHT-726-0004 changes the branch connectors to two SlimSAS SFF-8654 4i ends. It combines a breakout arrangement with different connector families. Both decisions matter: the host must provide the intended signals, and each SlimSAS destination must be wired for those signals.

Server manuals can be more useful than generic cable listings at this stage. The ASUS RS700-E11-RS12U manual maps named motherboard ports to named MCIO backplane ports. Follow that level of specificity when documenting your own route. For an OEM replacement, compare the original cable specification as well as the route.

Connecting an MCIO port to a U.2 SSD

For a direct U.2 drive connection, separate the data path from the power path. The motherboard or controller supplies the intended PCIe connection through the MCIO end. The drive-side SFF-8639 connector mates with the SSD. An assembly with a separate power lead also needs the correct connection to the system’s power supply.

RHT-726-0006 is listed as MCIO x4 to U.2 SFF-8639 with a 15-pin power connector. Specify the drive model and power requirements alongside the signal interface. A SATA-shaped power connection does not turn the drive’s data interface into SATA.

123

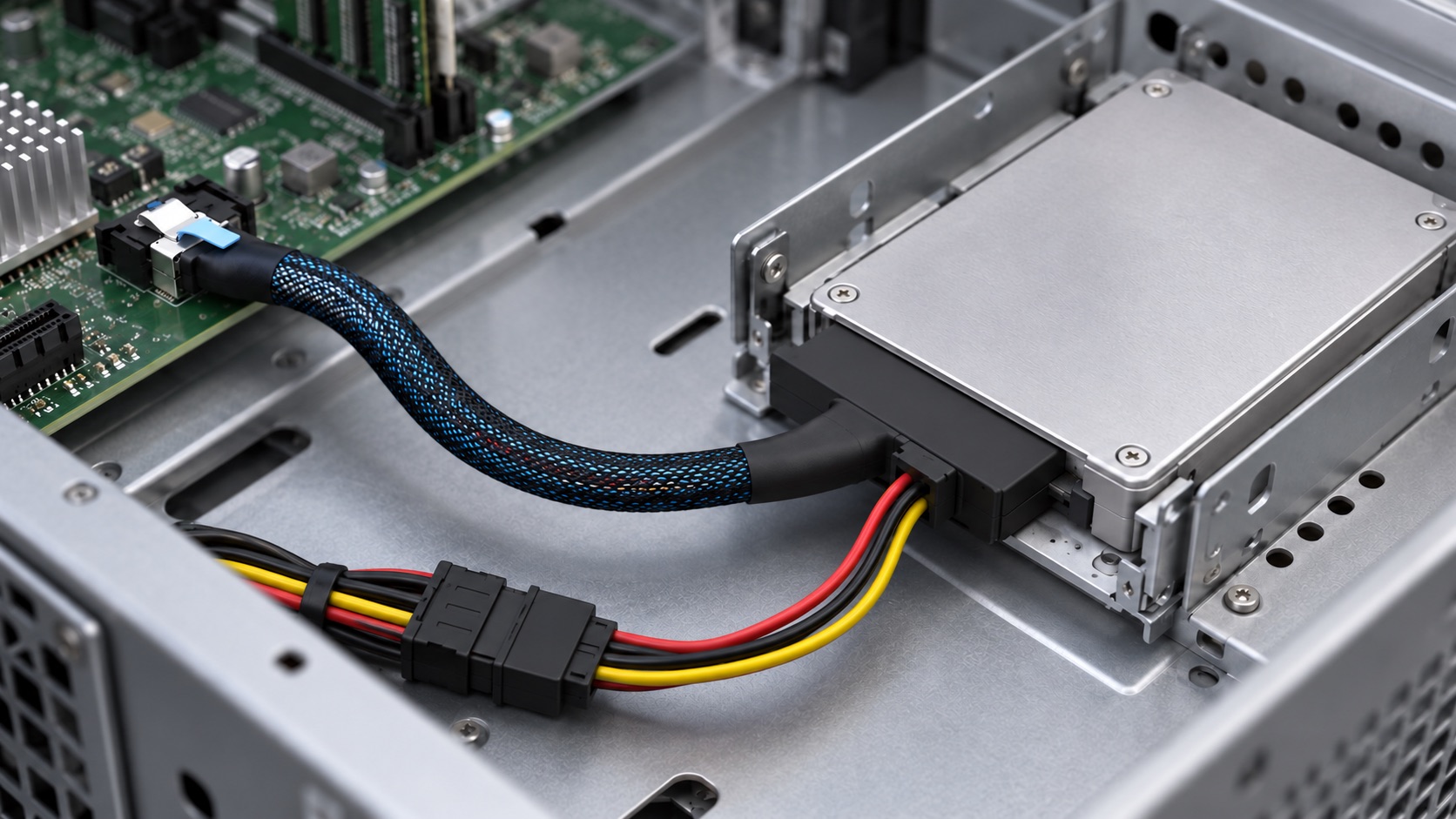

Three ends, two different jobs

1 MCIO x4 signal end

Connects to the host’s specified PCIe port.

2 U.2 SFF-8639 drive end

The assembly brings the signal path and power to the drive-side connector.

3 Separate 15-pin power end

Connects to the appropriate system power connection. It does not carry the drive’s PCIe data.

RHT-726-0006 · View MCIO range

Intel’s U.2 installation instructions show the cable attachment and separate SATA power connection for the Intel configuration described there. Trace both paths in your system, using the selected drive and board documentation.

RHT-726-0006’s U.2 listing does not imply U.3 system compatibility.

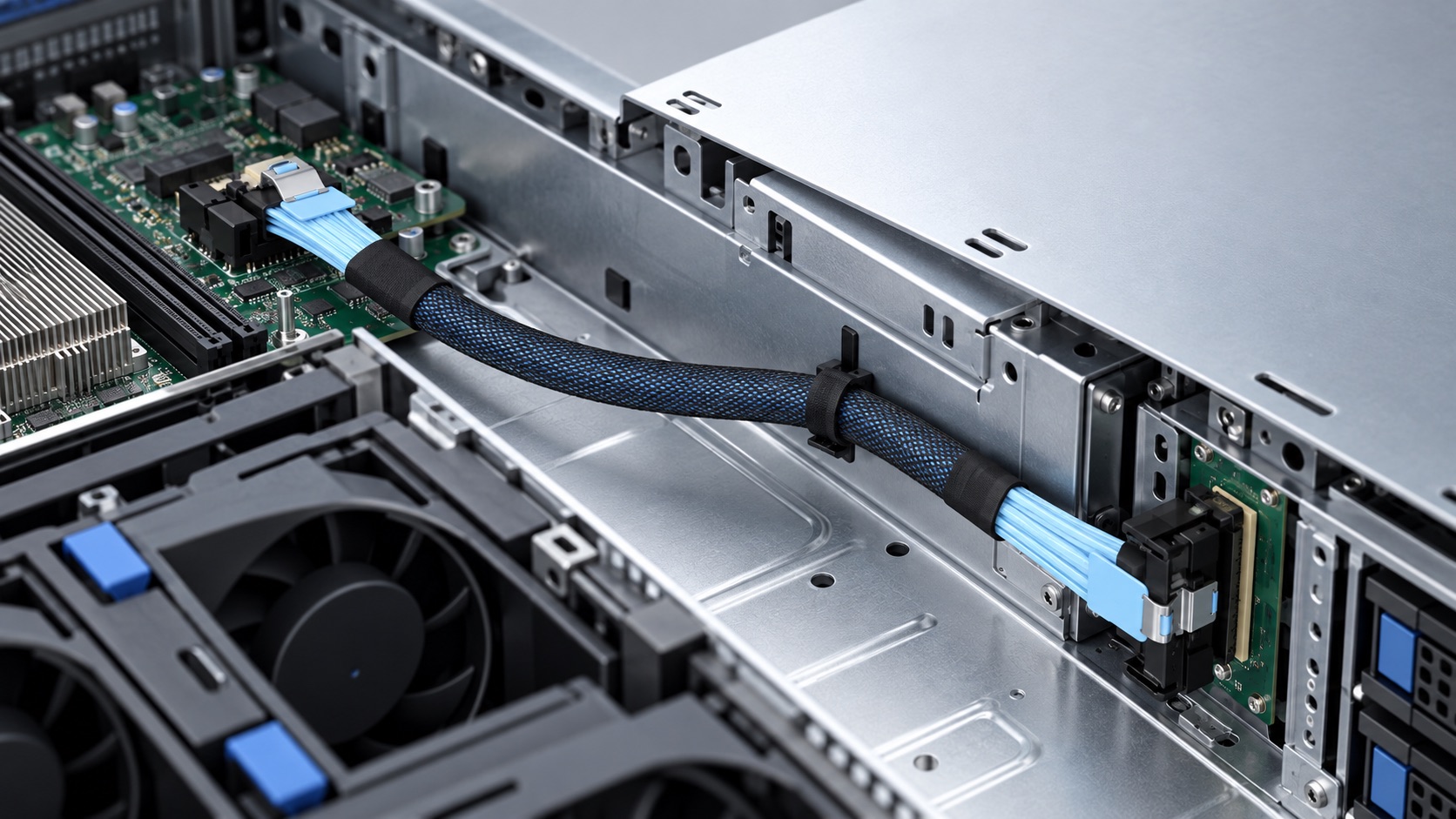

Choose the exit direction with the chassis open

Mechanical selection begins at the receptacle. Note its orientation on the board, the space above it and the direction the cable must travel. A right-angle plug can help a cable leave beneath a nearby cover, but its housing may conflict with a neighboring component. A straight plug may offer a cleaner route where space is available above the port.

Product photographs shown independently; not a dimensional comparison.

Length includes the route, not just the distance between ports

Measure along the intended cable path, including changes of direction and the access needed to operate the latch. For a breakout, record the main run, split location and each branch separately. Two assemblies with the same overall length may put the split in different places.

Keep the route clear of fan blades, sharp edges and moving service parts. Use the cable assembly’s specified bend and retention requirements instead of a generic minimum radius. Avoid pulling the cable taut between boards or creating a tight bend immediately behind the termination. A little unplanned slack can be as awkward as a short cable if it sits across an airflow opening.

Also record what must be removed to service the cable. Can the latch be reached after the fan wall, cover and neighboring cables are installed? Can a drive carrier be withdrawn without catching a branch? A fit check should include the assembled chassis and the normal service sequence.

MCIO to SlimSAS, Mini-SAS HD or OCuLink

Choose the far-end connector from the receiving port, then establish the signal path. A change of connector family is a mechanical routing choice within an appropriately designed system. A passive cable does not translate PCIe into SAS or SATA.

MCIO or SlimSAS for this route?

For installed equipment, match the connector at each end. Two MCIO ports call for the appropriate MCIO-to-MCIO arrangement; an MCIO host and SlimSAS destination require a matching mixed-end assembly, such as the x4-to-4i or x8-to-8i configurations above. The two connector families do not mate directly, and choosing one over the other does not upgrade a port’s supported speed.

For a new board, compare the actual receptacle and plug drawings, channel qualification at the required length, exit clearance and sourcing requirements. Neither family name establishes a universal performance winner. The six-family comparison expands the choice to other interfaces.

SlimSAS 4i

SFF-8654

RHT-726-0007 · MCIO range

Match the assigned protocol and lane mapping.

Mini-SAS HD

SFF-8643

RHT-726-0008 · MCIO range

Identify the port’s electrical role from the board documentation.

OCuLink

SFF-8611

RHT-726-0009 · MCIO range

Match lane and supporting-signal requirements.

SlimSAS 8i

SFF-8654

RHT-726-0011 · MCIO range

Specify the x8 route and its destination.

When comparing quotes, use the same connector arrangement, protocol, lane mapping, length and qualification conditions. Two products described as “MCIO to SlimSAS” may address different routes. An apparently lower price is not a meaningful comparison until those fields agree.

The twelve Renhotec MCIO configurations, grouped by task

The range covers direct links, breakout assemblies, cross-interface routes and a powered U.2 connection. Use the SKU to identify the arrangement when requesting the drawing and confirming the application.

The listed 30 AWG value applies to RHT-726-0001, RHT-726-0002 and RHT-726-0012. For the other configurations, request the specified wire gauge with the assembly drawing. Wire gauge alone is also insufficient to choose a maximum length or promise a PCIe generation. Those requirements belong in the assembly specification and validation conditions.

If a device is missing, check the route before replacing parts

A missing device does not isolate the fault to the cable. Work from the system configuration through the physical connection, changing one variable at a time. Follow the equipment’s power-down and service instructions before touching internal connectors; hot-plug behavior is a system feature, not a benefit implied by the MCIO name.

If the equipment maker provides an approved cable arrangement, establish a baseline with that configuration. A substitution test is useful only when the relevant wiring, endpoints and operating conditions are understood. Do not reconnect a superficially similar assembly to a different protocol port just to see whether it works.

Check more than drive detection

Detection confirms that a device has been enumerated in that configuration. It does not establish sustained throughput, stability under load, serviceability or support for every populated bay. Record the negotiated link width and generation, then use the platform’s recommended diagnostics and a representative workload.

For a new assembly, keep the agreed acceptance conditions with the sample record: host and endpoint models, firmware, cable length, lane layout and the test performed. This makes a later cable revision or supplier comparison traceable. If the system changes, identify which of those conditions needs to be checked again.

Prepare an MCIO cable specification that can be quoted

A useful request connects a physical arrangement to a defined system. Supply the port and equipment details early, especially when the far end uses another connector family. If a field is undecided, state the intended requirement rather than choosing a value from a similar-looking product.

The same structure works for a replacement: include the original part number and drawing, explain what is changing, and show the required route. If only the exit direction changes, call that out explicitly so the electrical requirements remain clear.

Send an MCIO specification
