Products > HVIL Series Connector > 1 POS High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Right Angle

ST522000-A-25

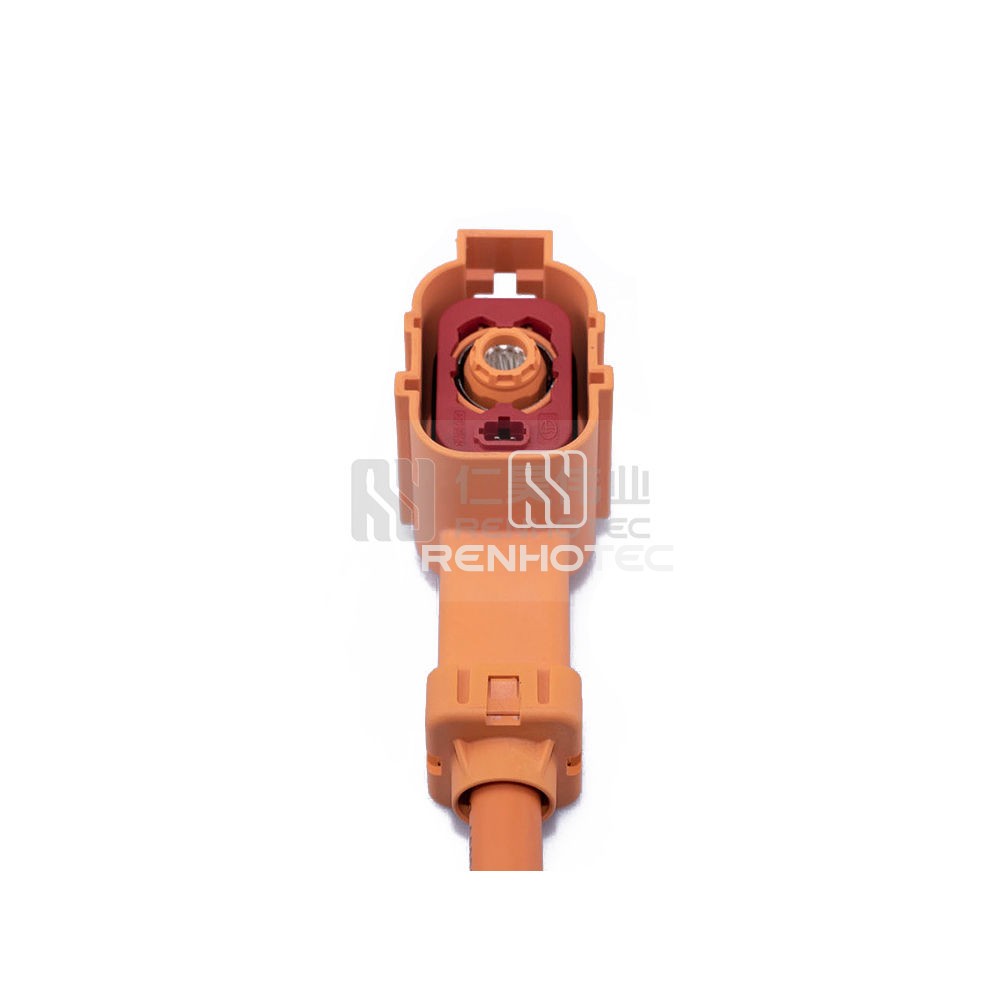

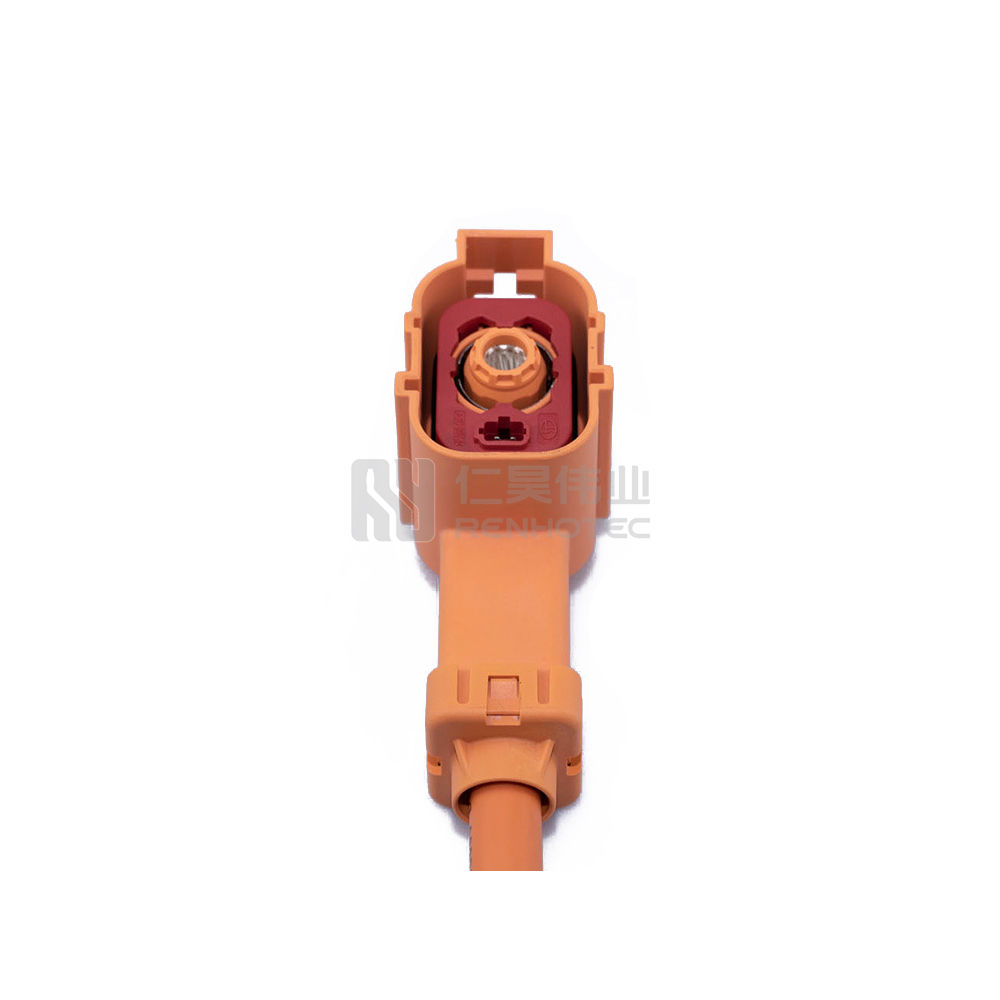

1 POS High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Right Angle

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high power electric vehicle cable plug is designed for 150A current with a 25mm² shielded cable. Featuring a key right angle design, it ensures secure and efficient power transfer for electric vehicles. Perfect for connecting power sources to electric vehicles with ease.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size8mm
    Contact TerminationCrimp
    KeyA
    ColorOrange
    FeaturesWaterproof

    Electrical

    Rated Voltage1500V
    Rated Current150A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialPA66+GF
    Contact MaterialCopper Alloy
    Contact FinishSilver

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
