Products > HVIL Series Connector > 1 POS High Power Electric Vehicle Cable Plug 200A 25mm² Shielded Cable W Straight

FPT62021601SW-35S

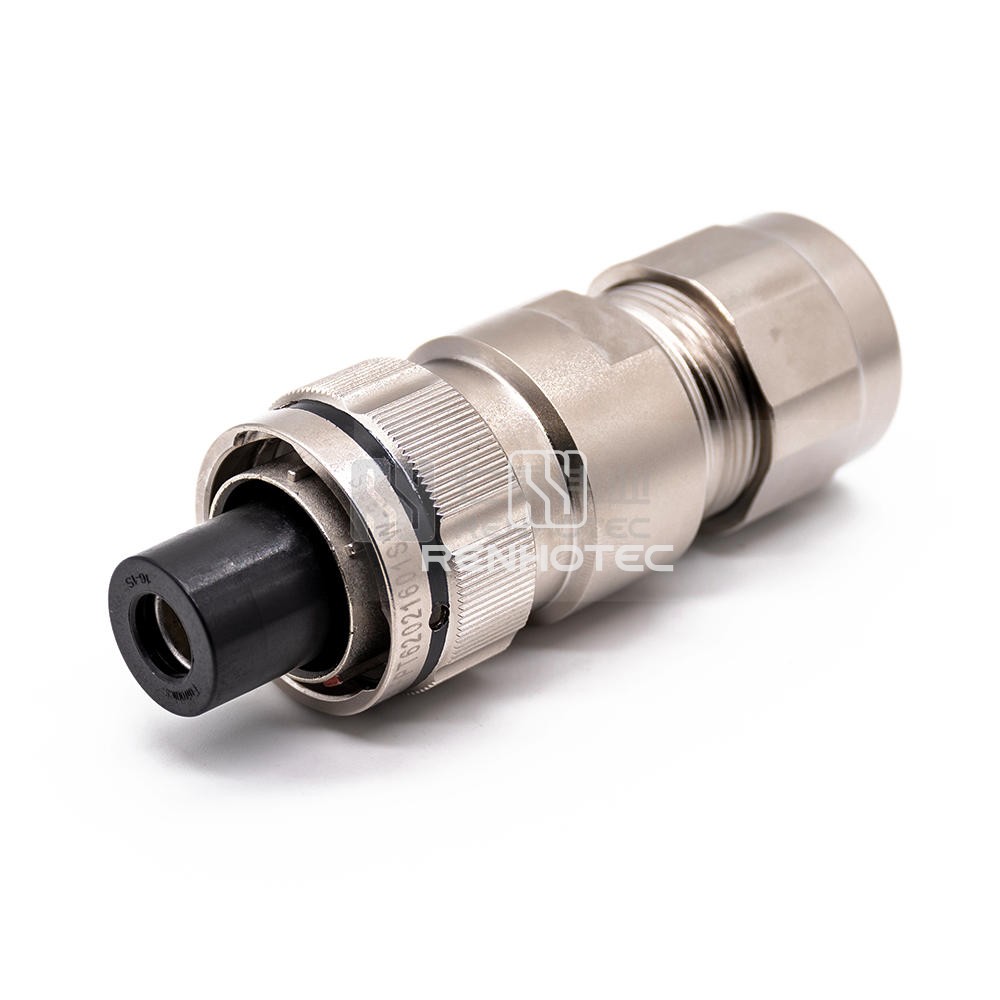

1 POS High Power Electric Vehicle Cable Plug 200A 25mm² Shielded Cable W Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Get the 1 POS High Power Electric Vehicle Cable Plug with a 200A capacity and 25mm² shielded cable for superior performance. This product is designed for high power electric vehicles, ensuring reliable connections and efficient energy transfer.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions1
    Contact TerminationCrimp
    KeyW
    ColorSilver

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
