Products > HVIL Series Connector > 1 POS High Power Electric Vehicle Cable Plug 350A 25mm² Shielded Cable Straight

FPT62022201SN-50S

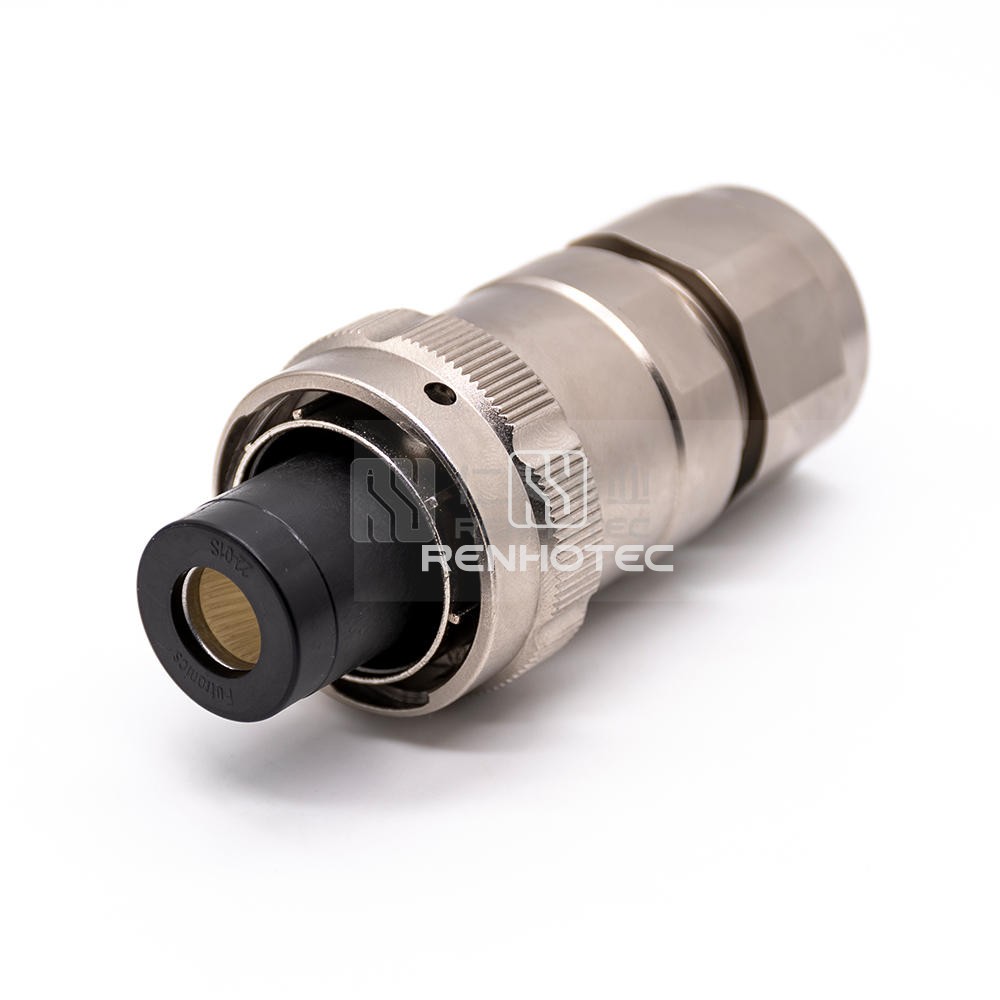

1 POS High Power Electric Vehicle Cable Plug 350A 25mm² Shielded Cable Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high-quality 1 POS electric vehicle cable plug features a 350A capacity, 25mm² shielded cable, and a straight design, perfect for efficient and reliable power transfer.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions1
    Contact TerminationCrimp
    KeyN
    ColorSilver

    Electrical

    Rated Voltage1000V
    Rated Current350A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range50mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
