Products > HVIL Series Connector > 1 POS High Power Electric Vehicle connector Socket 200A Busbar Lug W Key Box Mount

FPT20021601PW

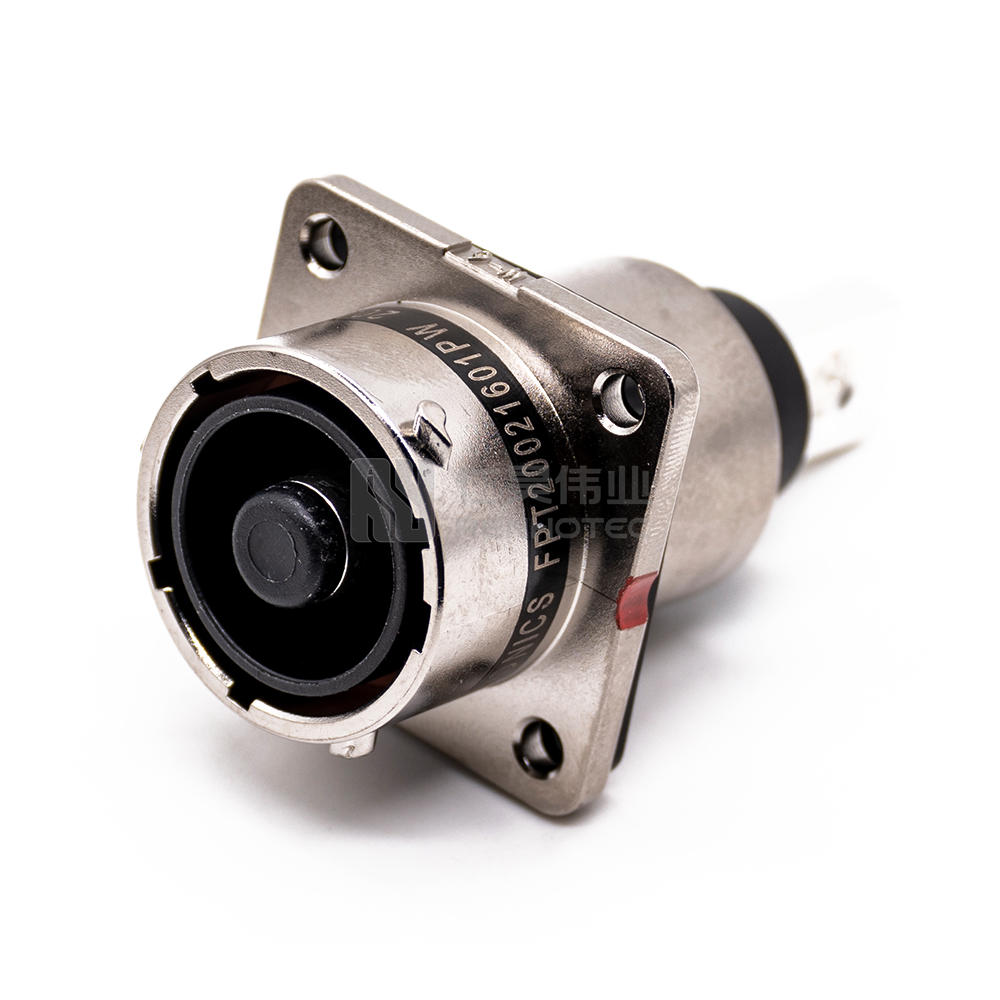

1 POS High Power Electric Vehicle connector Socket 200A Busbar Lug W Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    Upgrade your electric vehicle charging system with this high-quality 1 position connector socket featuring a 200A capacity. Comes with a busbar lug, key box mount for secure installation.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact TerminationCrimp
    KeyW
    ColorSilver

    Electrical

    Rated Voltage1000V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
    RENHOTEC EV Product Catalog [EN] Download
    RENHOTEC HVIL Connector Catalog [EN] Download
    High Voltage Interlock Connectors CE Download
