Products > HVIL Series Connector > 1 POS High Voltage Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight

NI1-1-S060-1AYA-C08

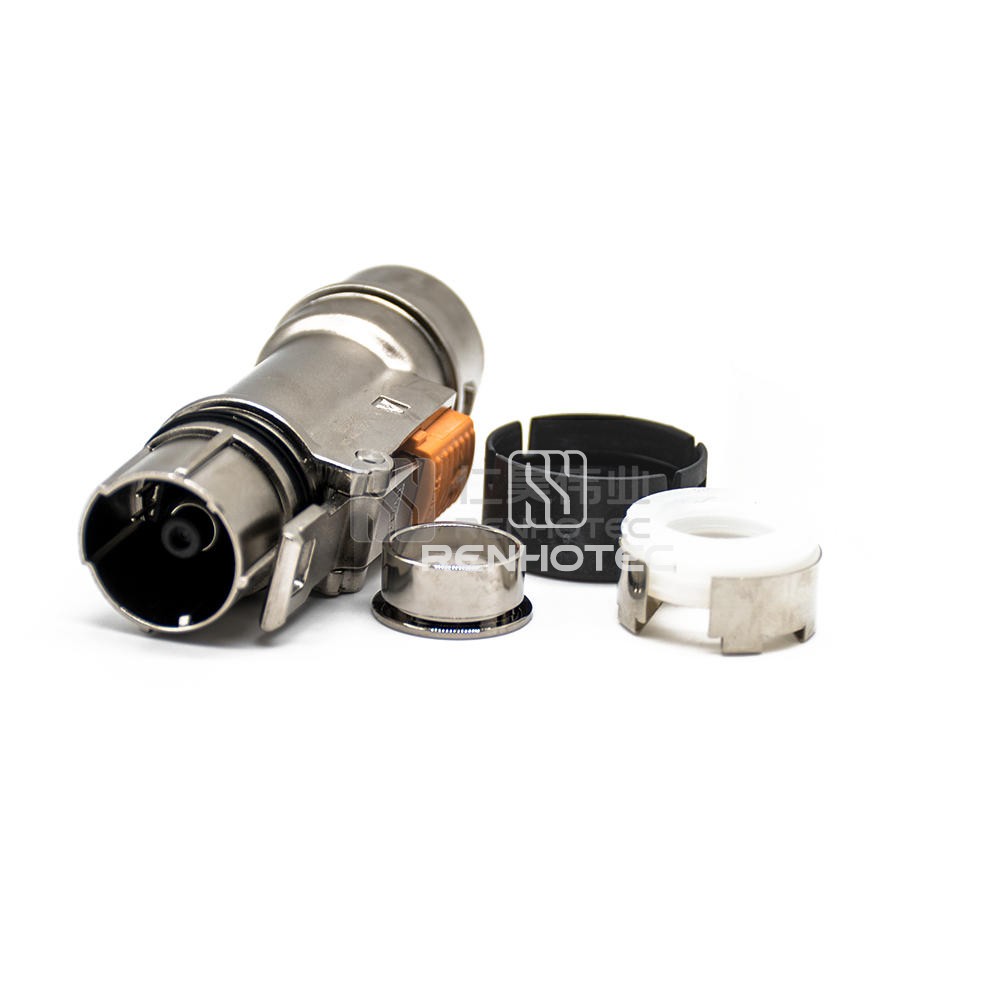

1 POS High Voltage Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight

This high voltage interlock connector features a robust metal plug design suitable for 125A capacity and 25mm² shielded cable connections. The straight A key configuration ensures secure and reliable connectivity for various applications.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current125A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range25mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
