Products > HVIL Series Connector > 1 POS High Voltage Connector Metal Plug 80A 16mm² Shielded Cable A Key Straight

NI1-1-S060-1AYA-C07

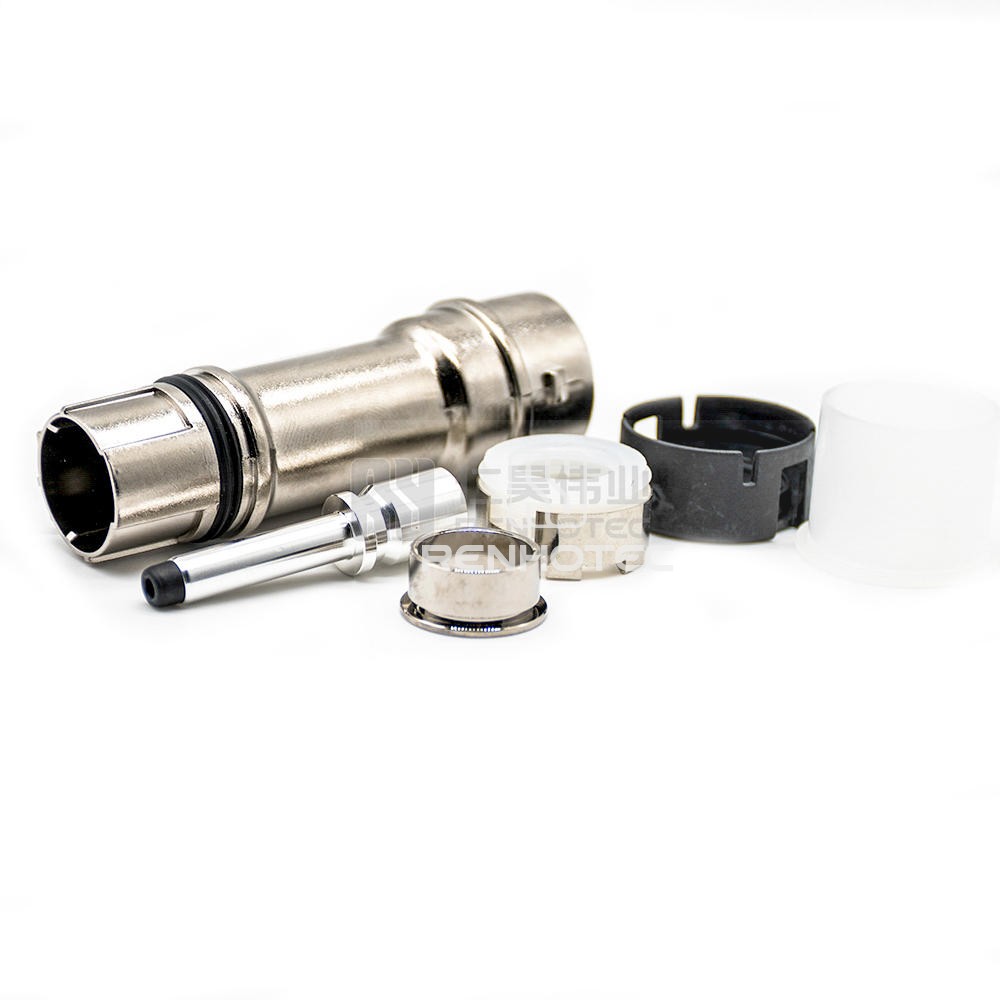

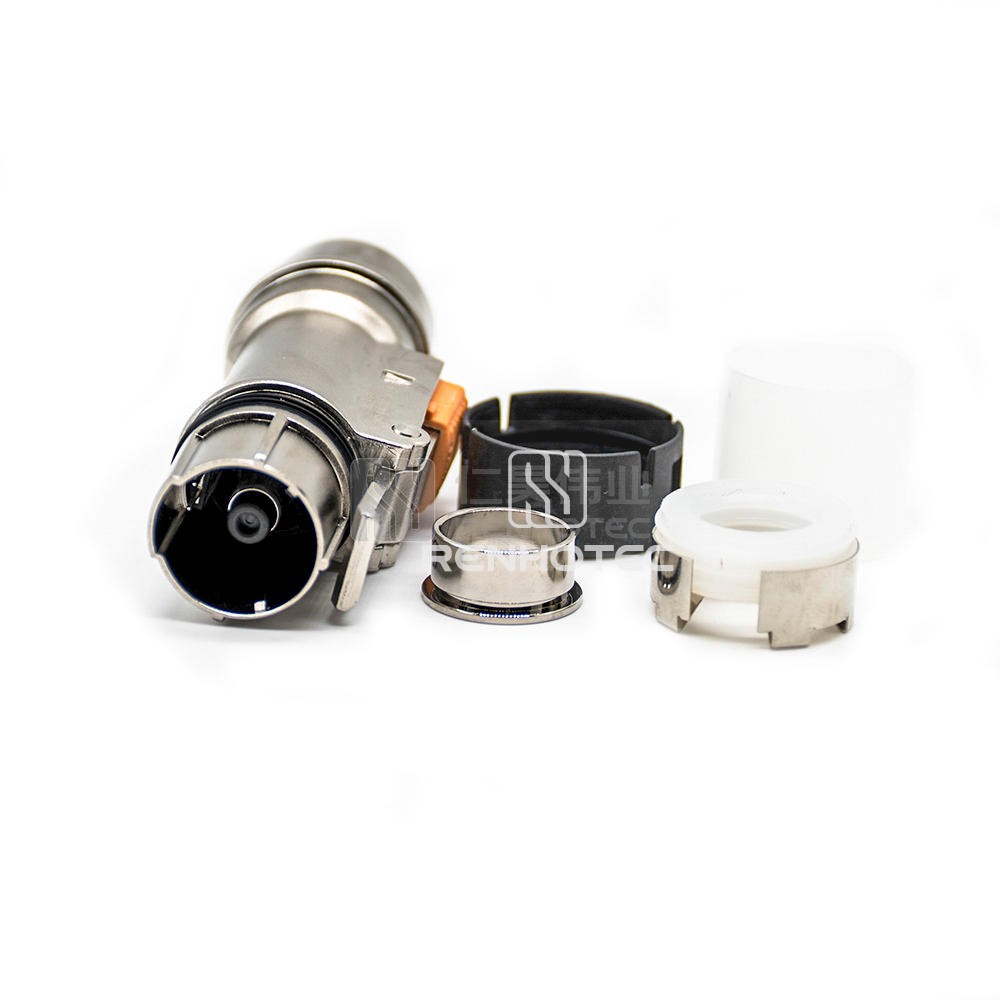

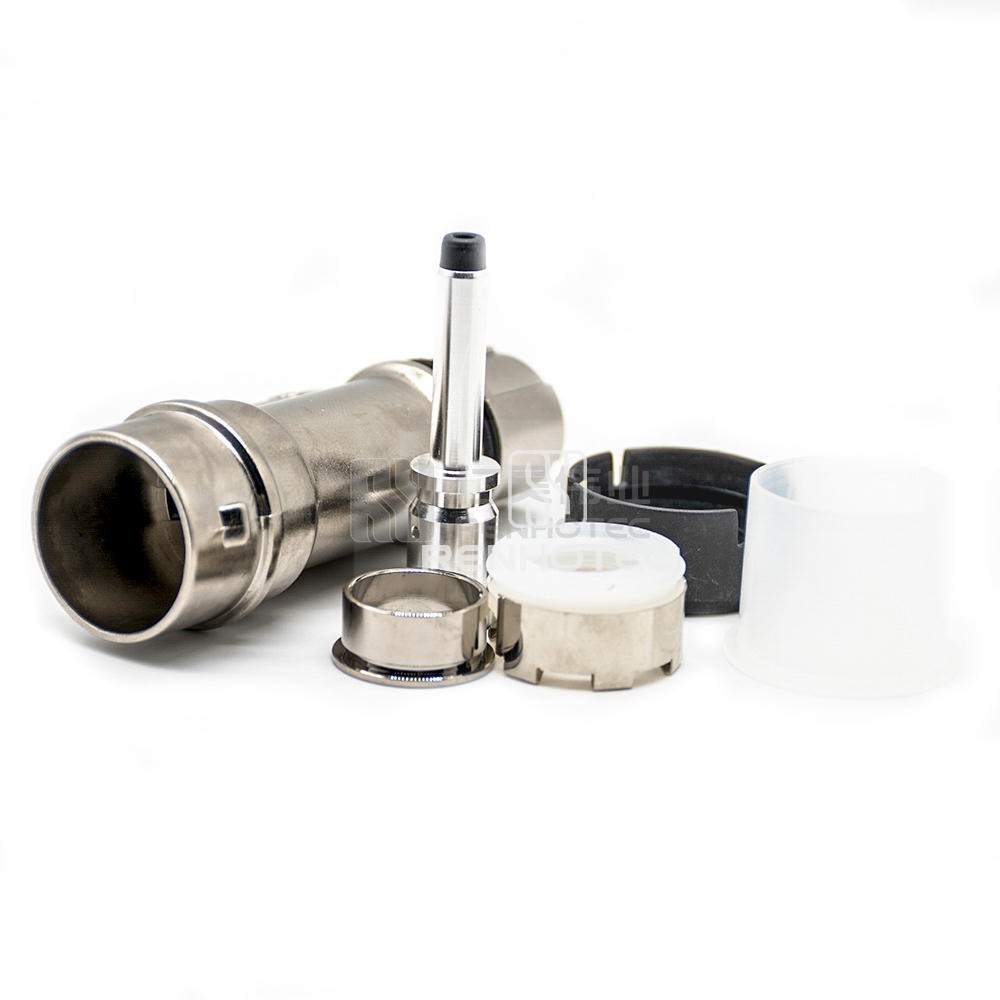

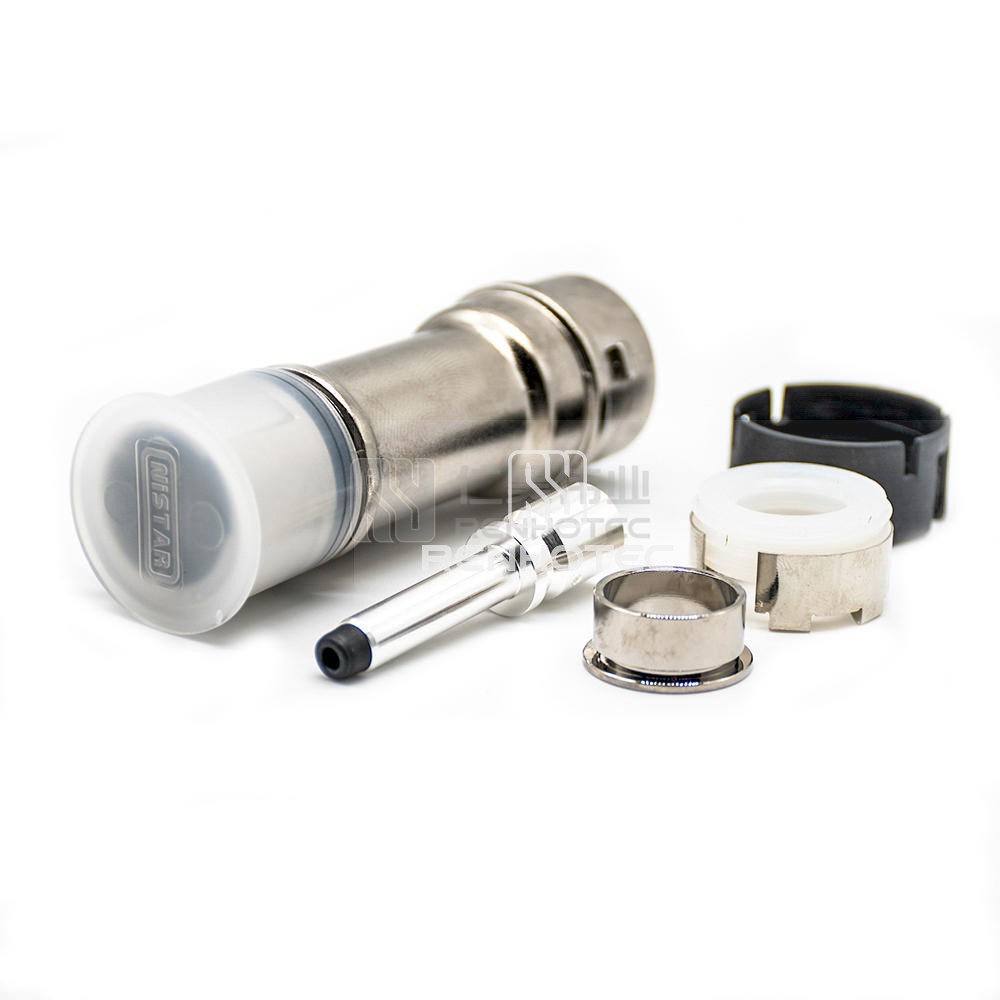

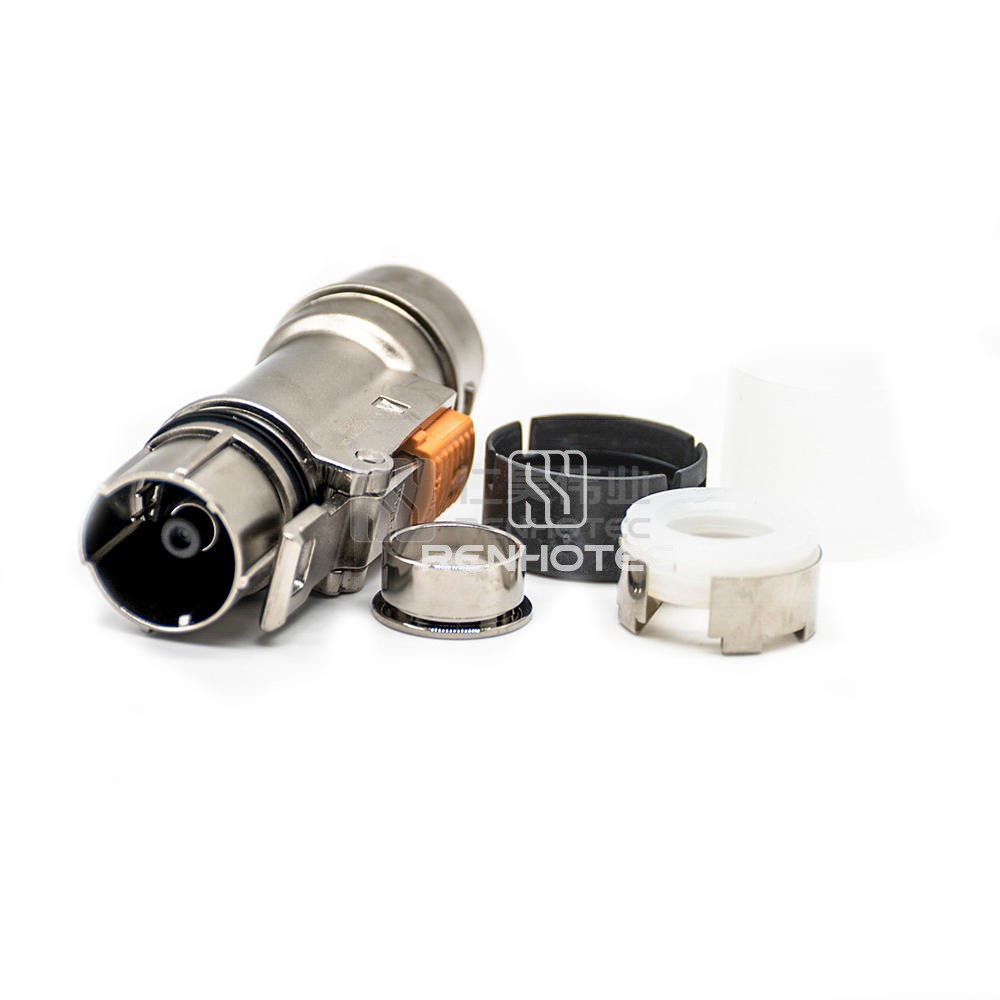

1 POS High Voltage Connector Metal Plug 80A 16mm² Shielded Cable A Key Straight

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    High-quality 1 POS High Voltage Connector Metal Plug designed for 80A with 16mm² Shielded Cable. Features a secure A Key Straight mechanism. Ideal for various high voltage applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current80A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range16mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
