Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Right Angle

NI1-1-B060-1AYA-C08

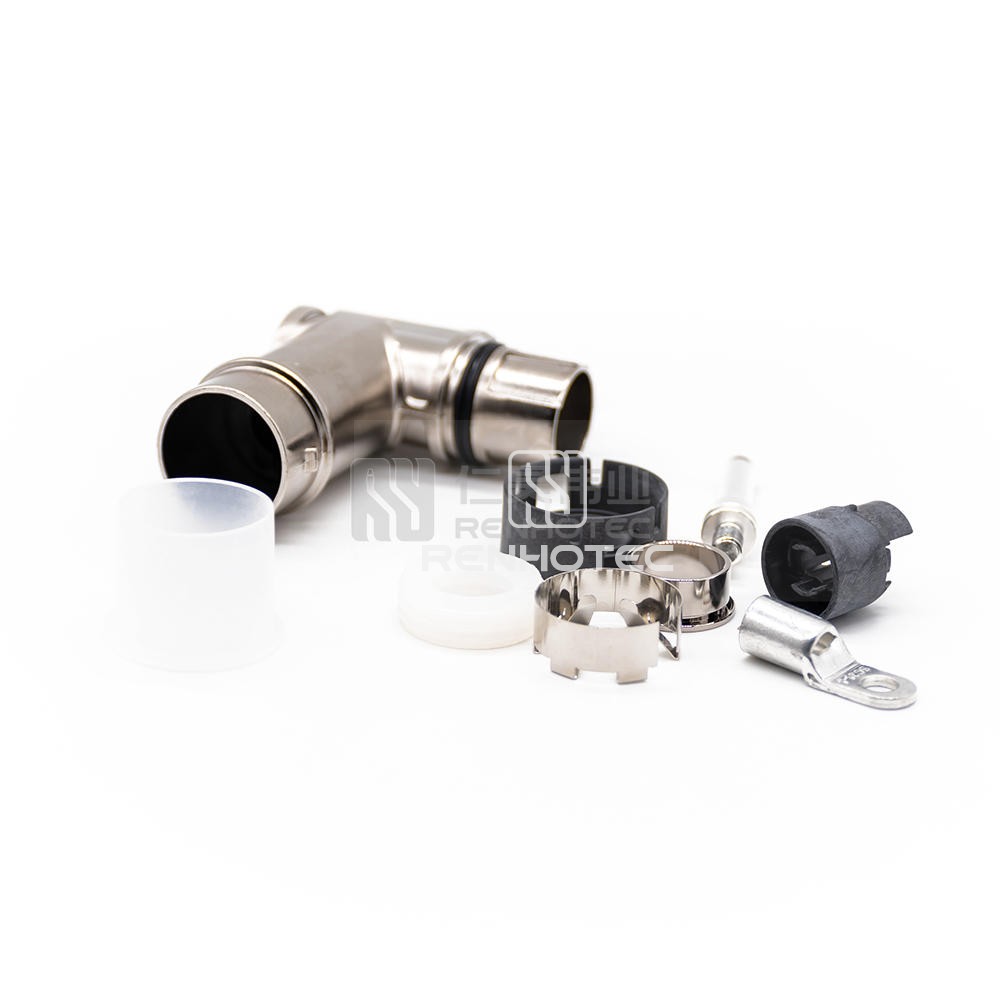

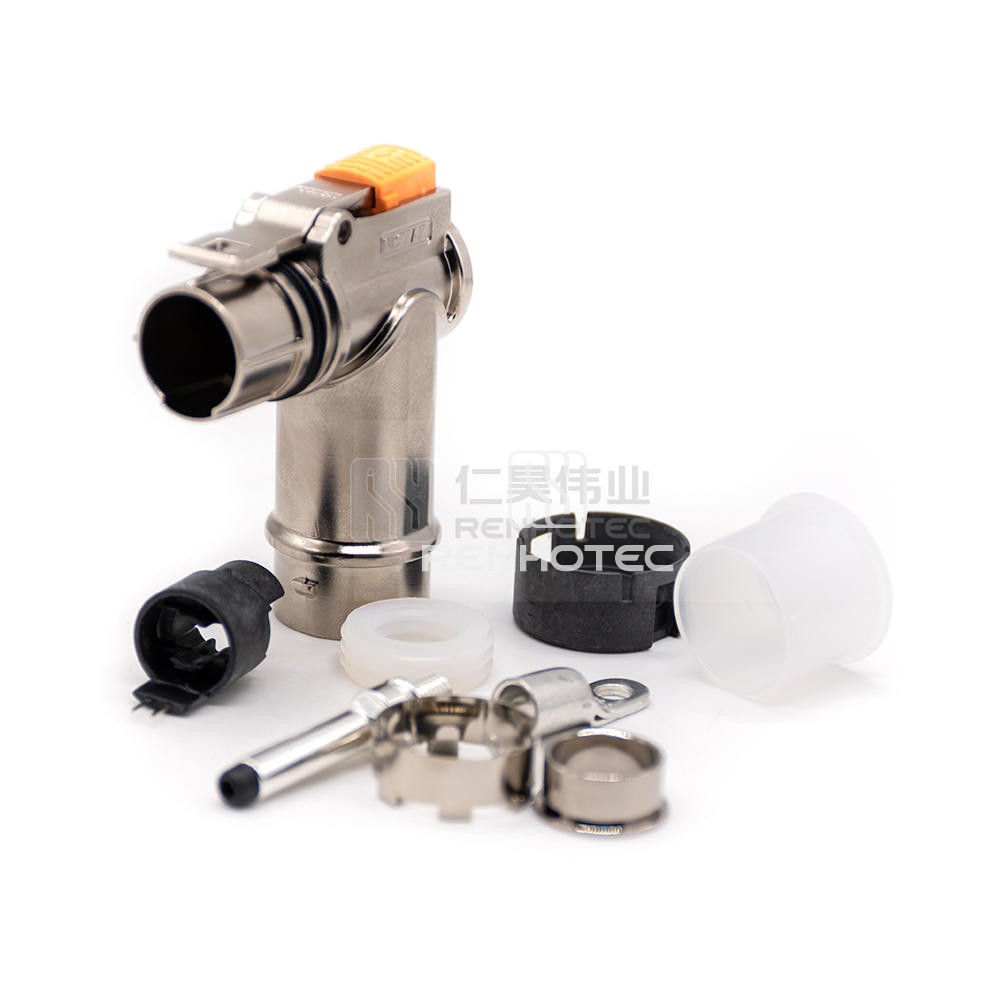

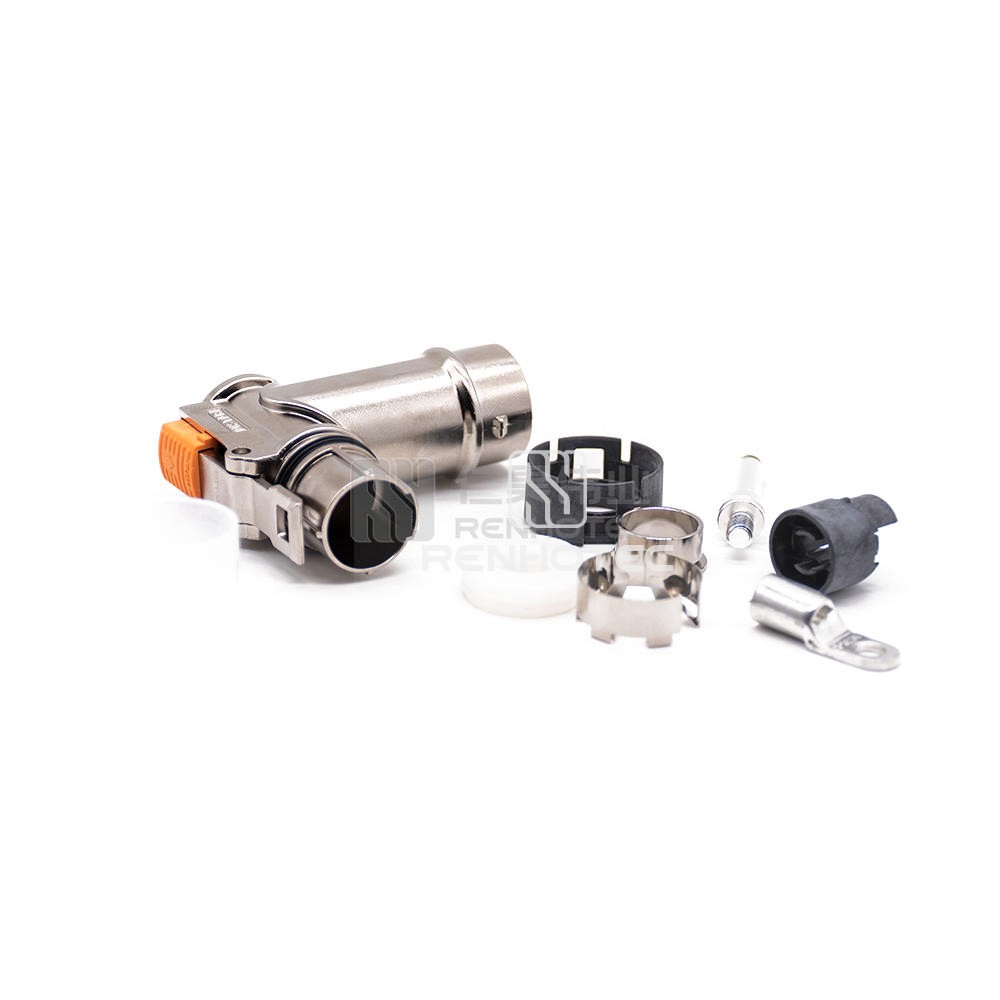

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Right Angle

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This 1 POS High Voltage Interlock Connector Metal Plug is designed for 125A, 25mm² shielded cable applications, featuring a convenient right angle A key design. Ensure safety and secure connections with this high-quality connector.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size6mm
    Contact TerminationCrimp
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current125A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range25mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
