1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight - NI1-1-S080-1AYA-C08
1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight - NI1-1-S080-1AYA-C08

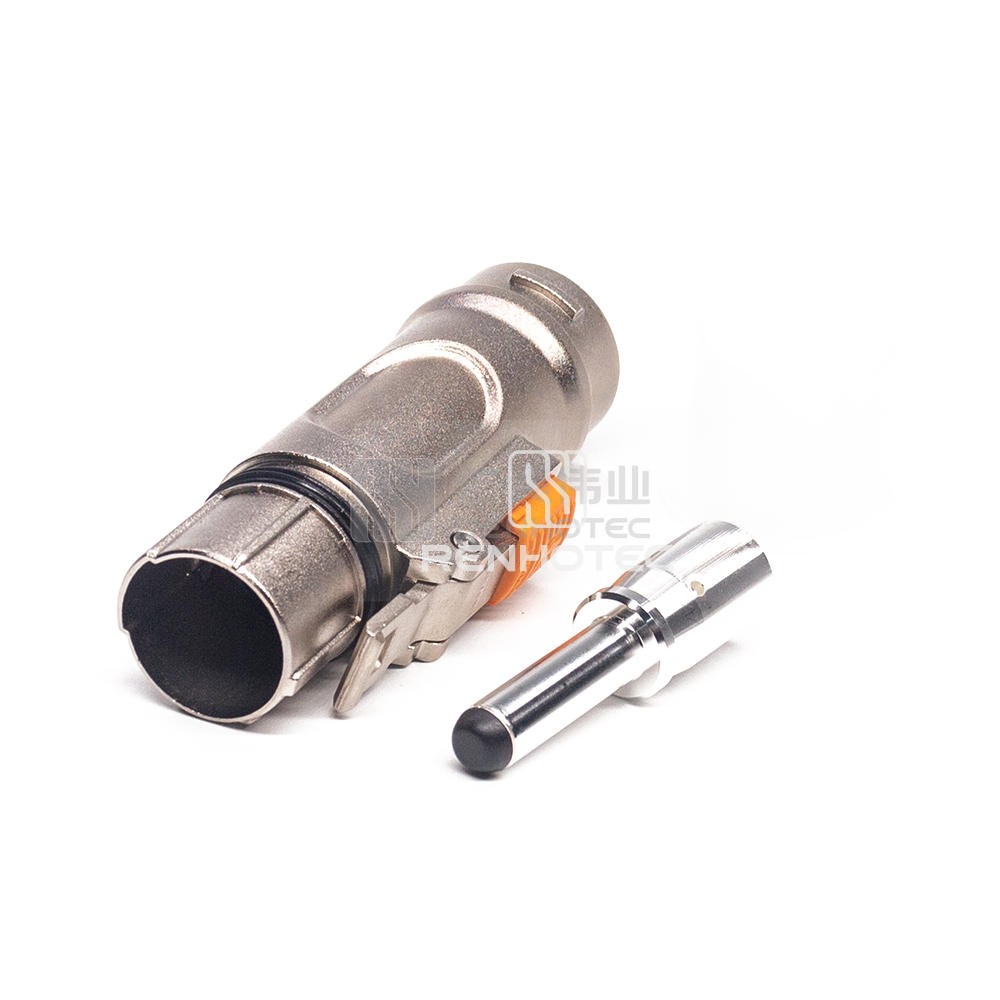

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight product image

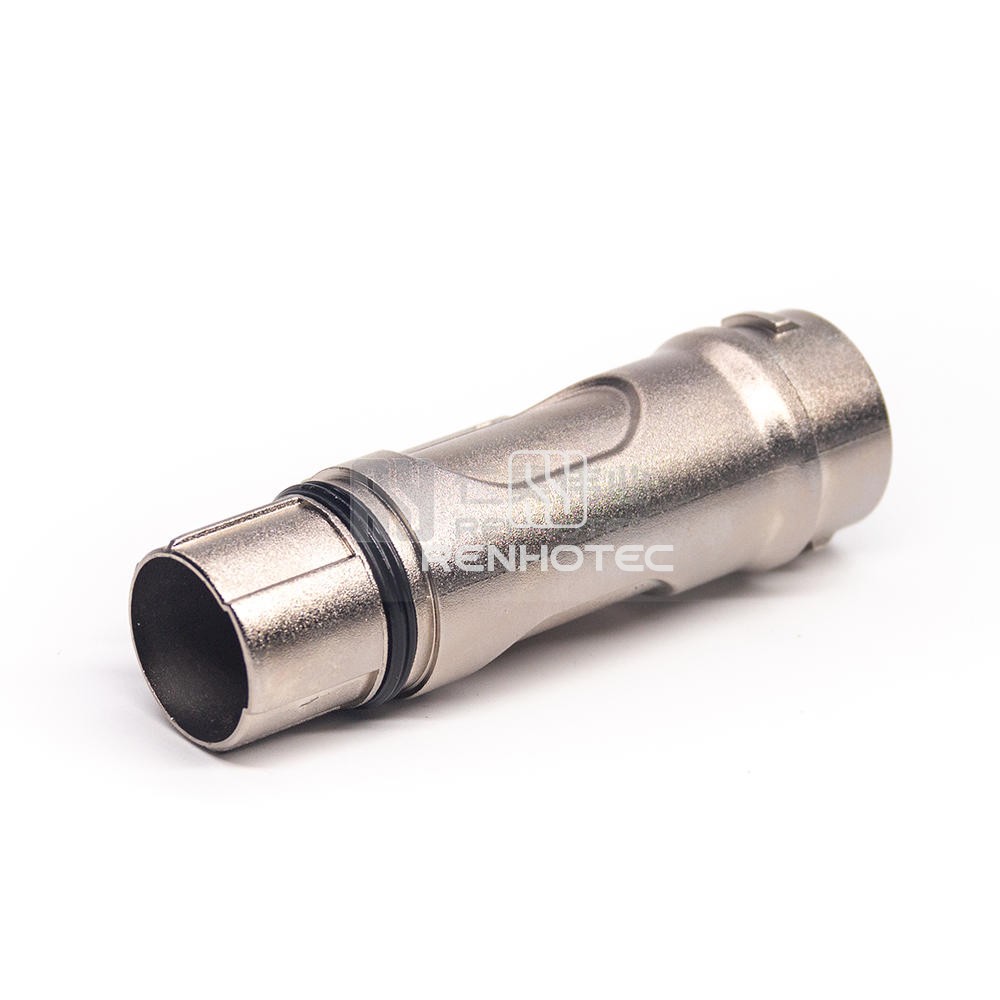

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight product image

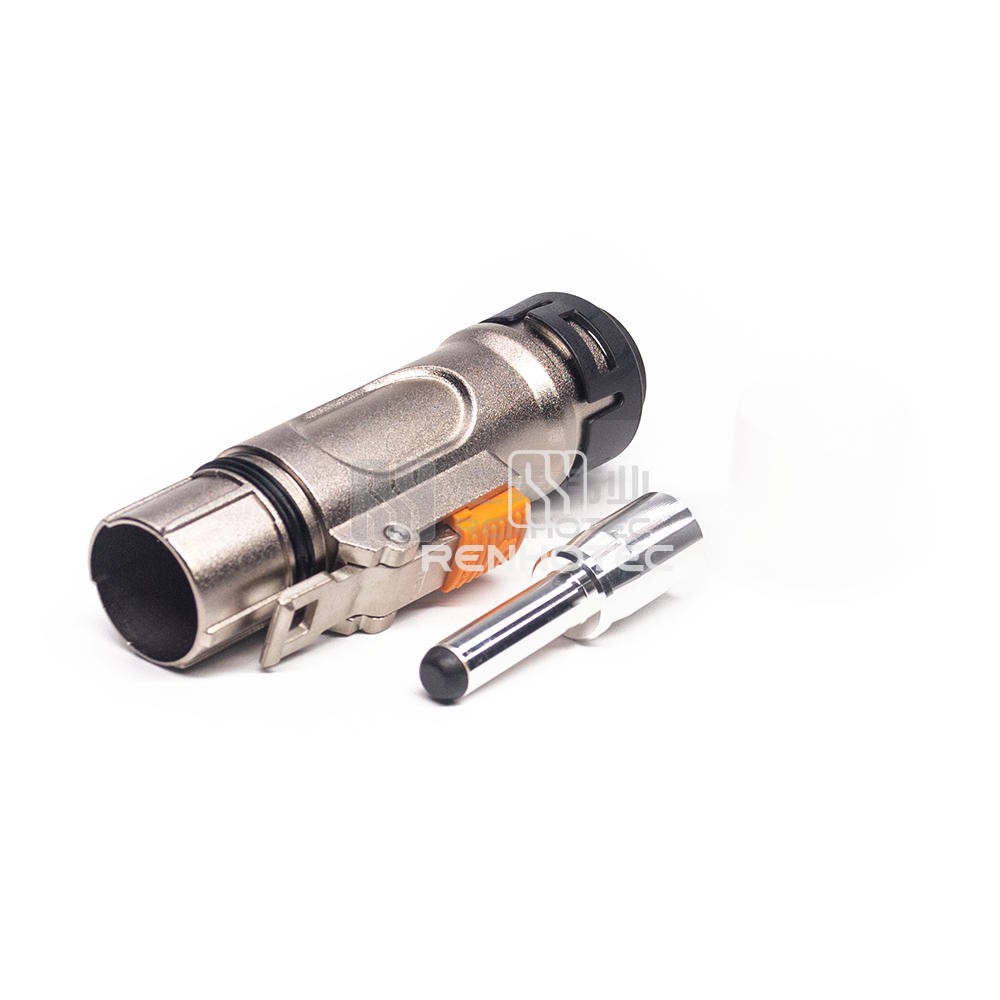

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight product image

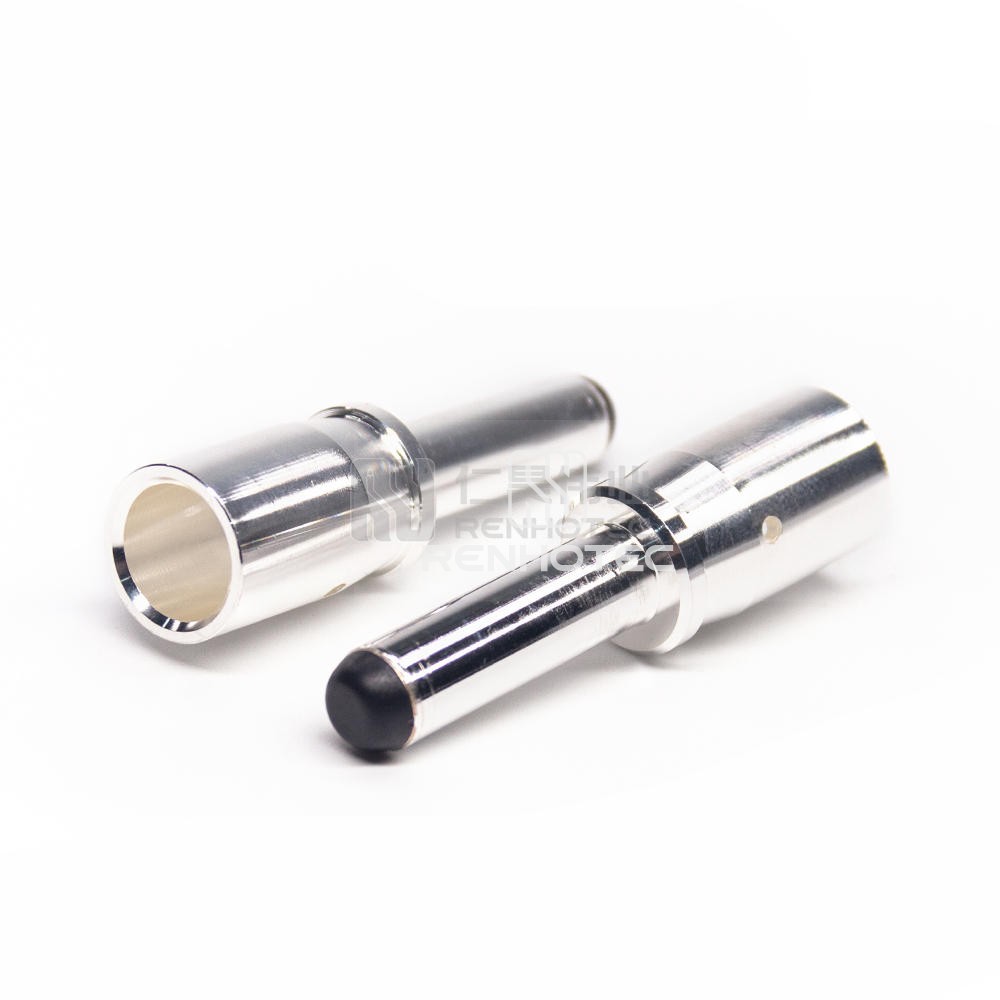

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight product image

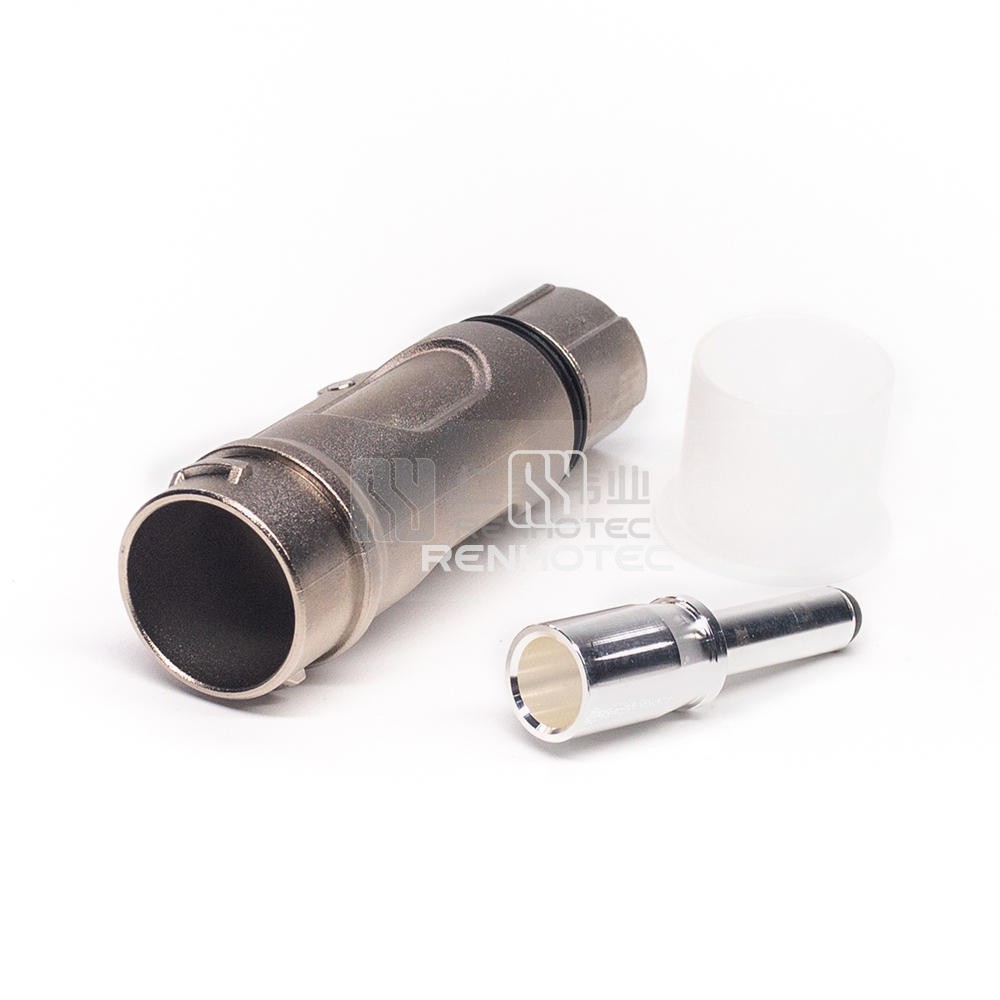

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight product image

NI1-1-S080-1AYA-C08

1 POS High Voltage Interlock Connector Metal Plug 125A 25mm2 Shielded Cable A Key Straight

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions1
KeyA
OrientationStraight
Contact Size8mm
Mounting TypeCable Type
Contact TerminationCrimp
Wire Gauge or Range25mm²
ColorSilver
FeaturesIntegrated Internal HVIL
Materials
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Electrical
Rated Voltage800V
Rated Current125A
ShieldingShielded
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Product certification

Product excerpt

This high voltage interlock connector features a metal plug suitable for 125A with 25mm² shielded cable and a straight A key design. Ideal for secure and efficient power connections in various industrial applications.

Certification

Renhotec CE Certification Download

Catelog

RENHOTEC EV Product Catalog [EN] Download
RENHOTEC HVIL Connector Catalog [EN] Download
