Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Plug 125A M8 Busbar Lug A Key Box Mount

NI1-1-H060-1AYA-T08

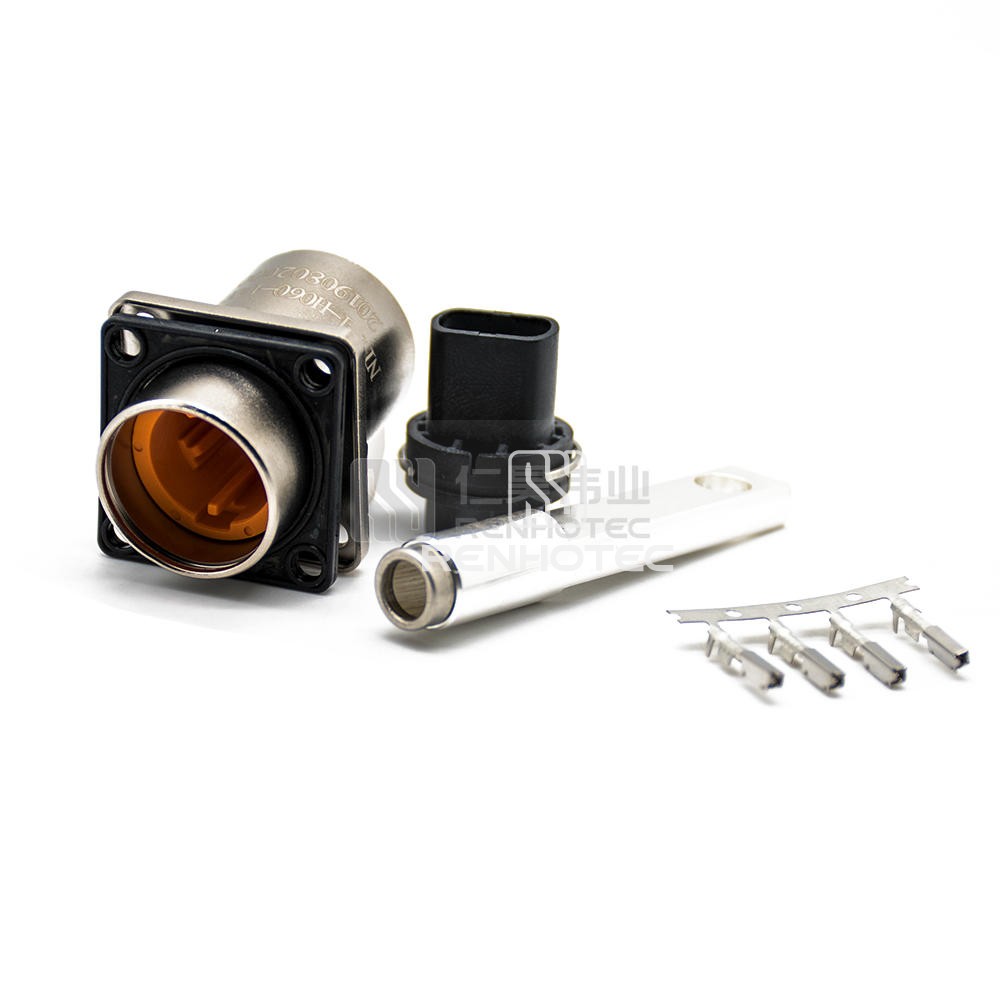

1 POS High Voltage Interlock Connector Metal Plug 125A M8 Busbar Lug A Key Box Mount

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high voltage interlock connector features a durable metal plug suitable for 125A M8 busbar lug connections, with a key box mount for secure locking mechanisms. Ideal for applications requiring reliable high-power connections.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypeReceptacle
    OrientationStraight
    Number of Positions1
    Contact Size6mm
    Contact TerminationBusbar
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current125A
    ShieldingShielded

    Mechanical

    Mounting TypePanel Mount
    Mounting FeatureFour Flange

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
