Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Plug 200A 50mm2 Shielded Cable A Key Right Angle

NI1-1-B120-1AYA-C10

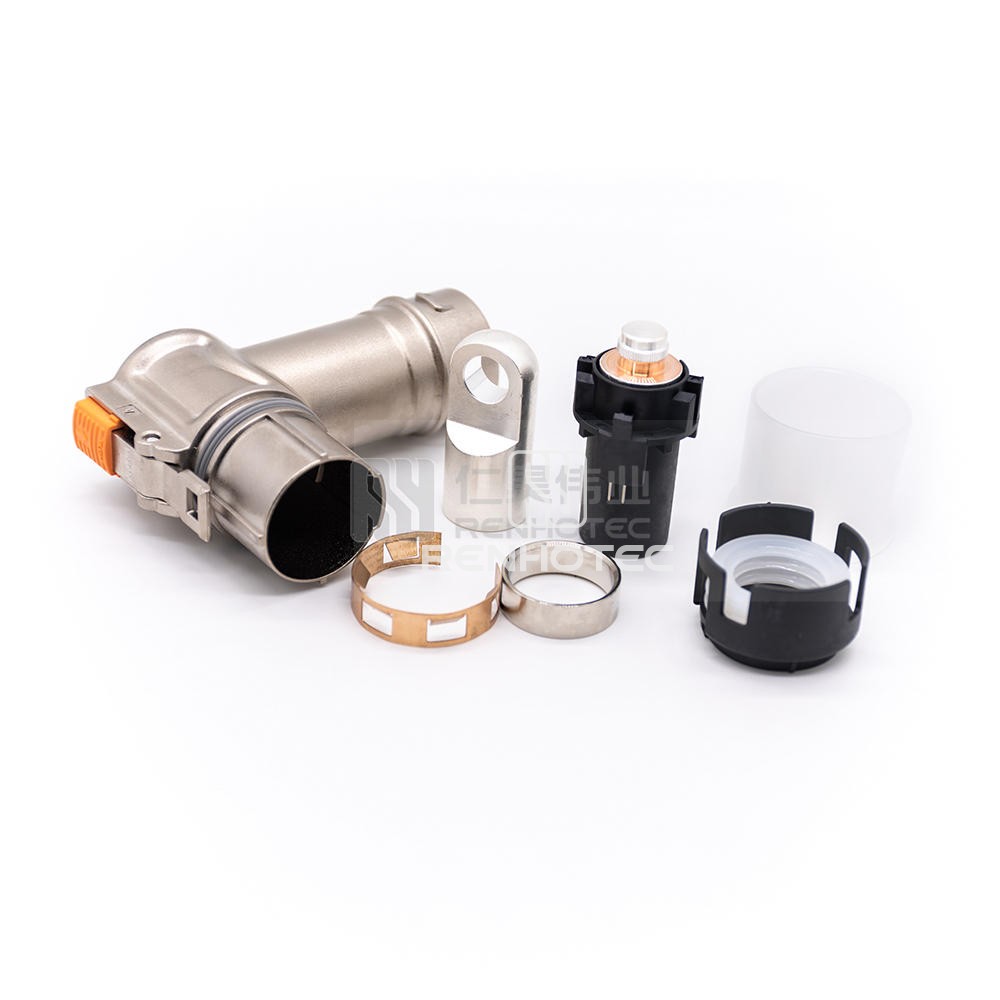

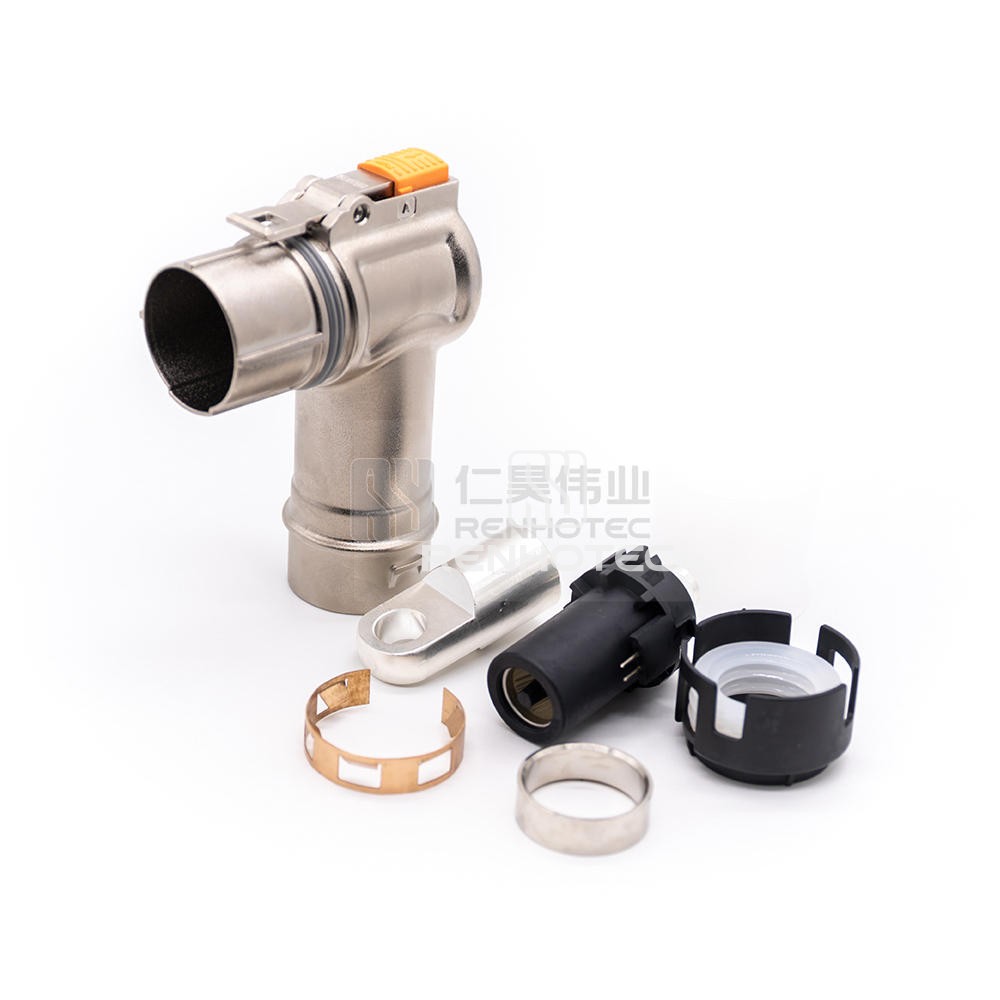

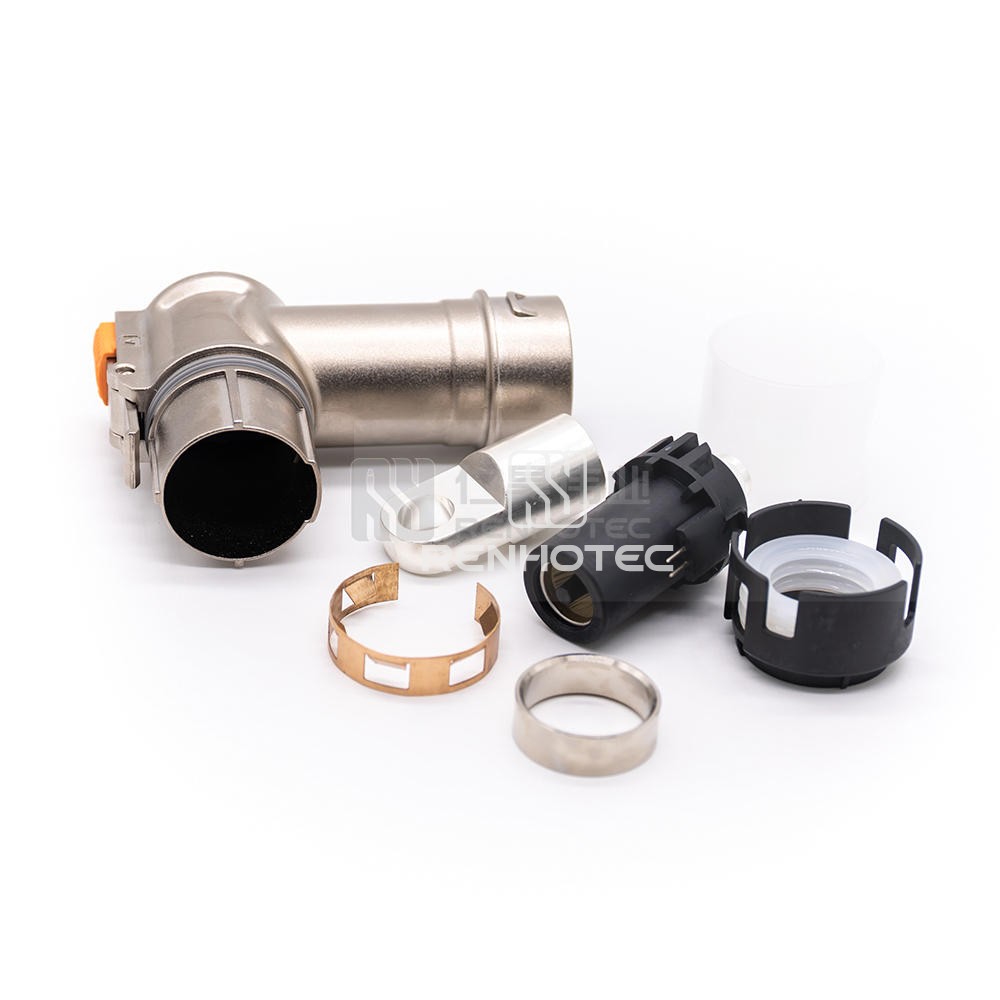

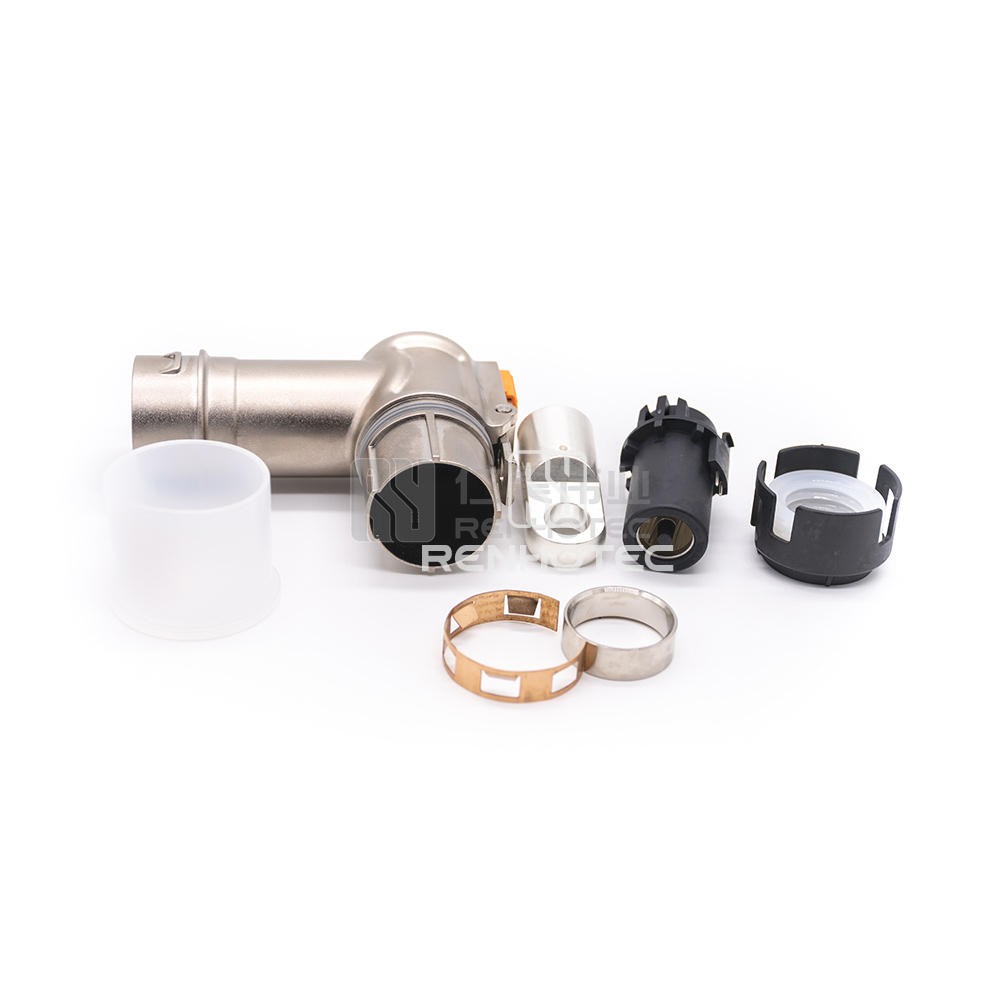

1 POS High Voltage Interlock Connector Metal Plug 200A 50mm2 Shielded Cable A Key Right Angle

This high voltage interlock connector features a 200A capacity and durable metal plug suitable for 50mm² shielded cables. Designed with a key for easy locking, it offers a secure connection in a right angle configuration. Ideal for applications requiring reliable high-power interconnect solutions.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size12mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyA
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current200A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range50mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
