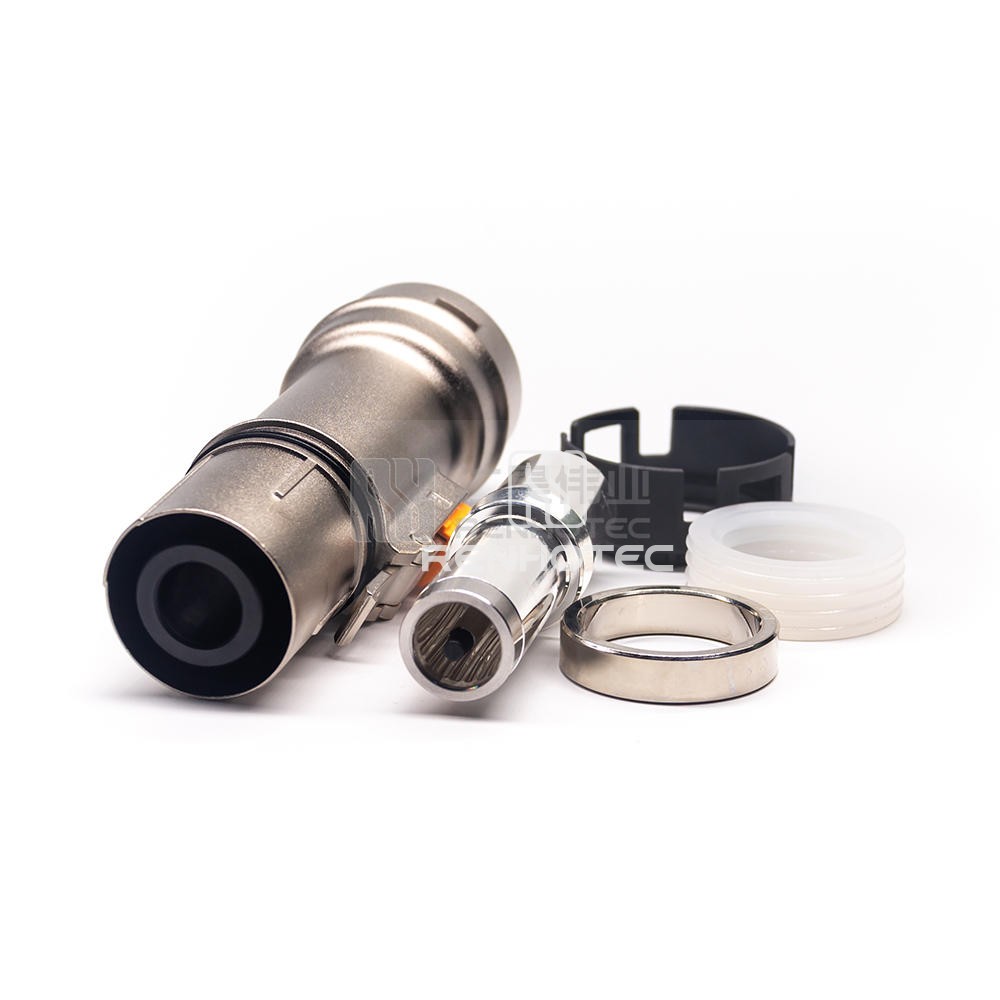

1 POS High Voltage Interlock Connector Metal Plug 250A 70mm2 Shielded Cable A Key Straight product image

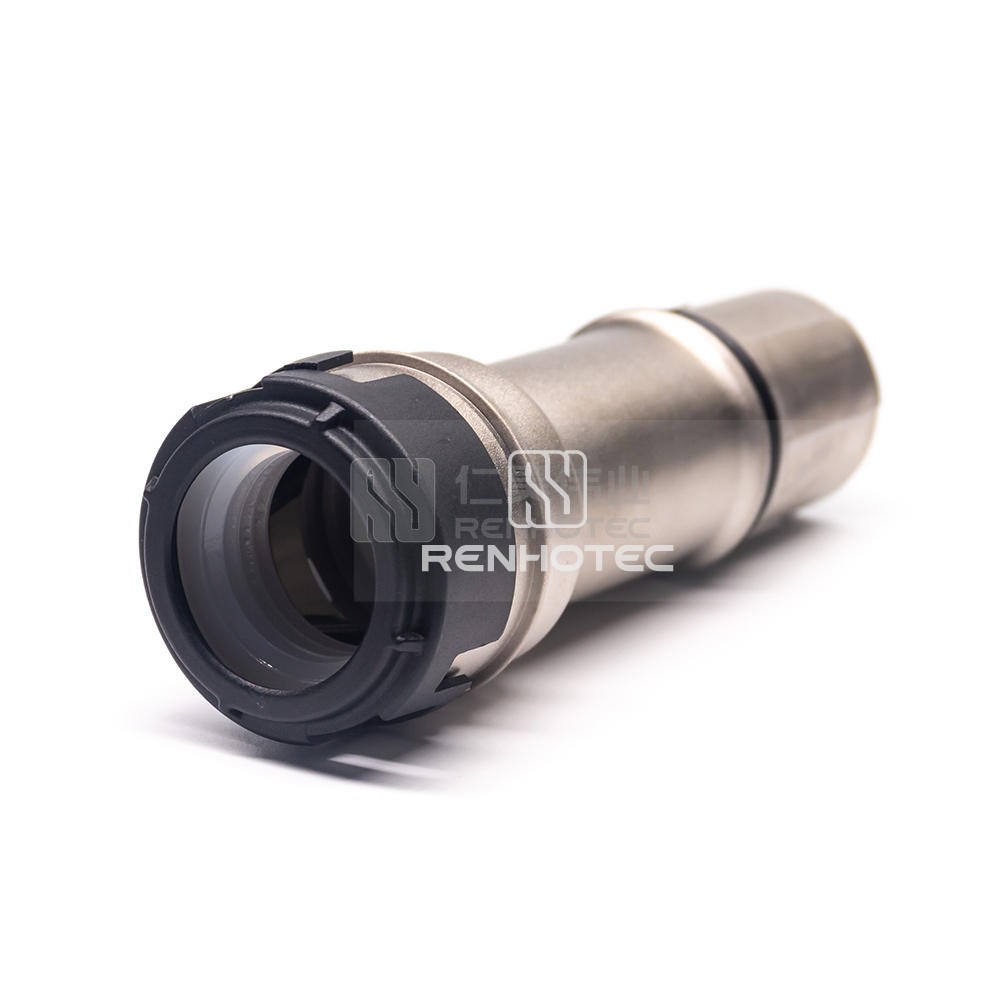

1 POS High Voltage Interlock Connector Metal Plug 250A 70mm2 Shielded Cable A Key Straight product image

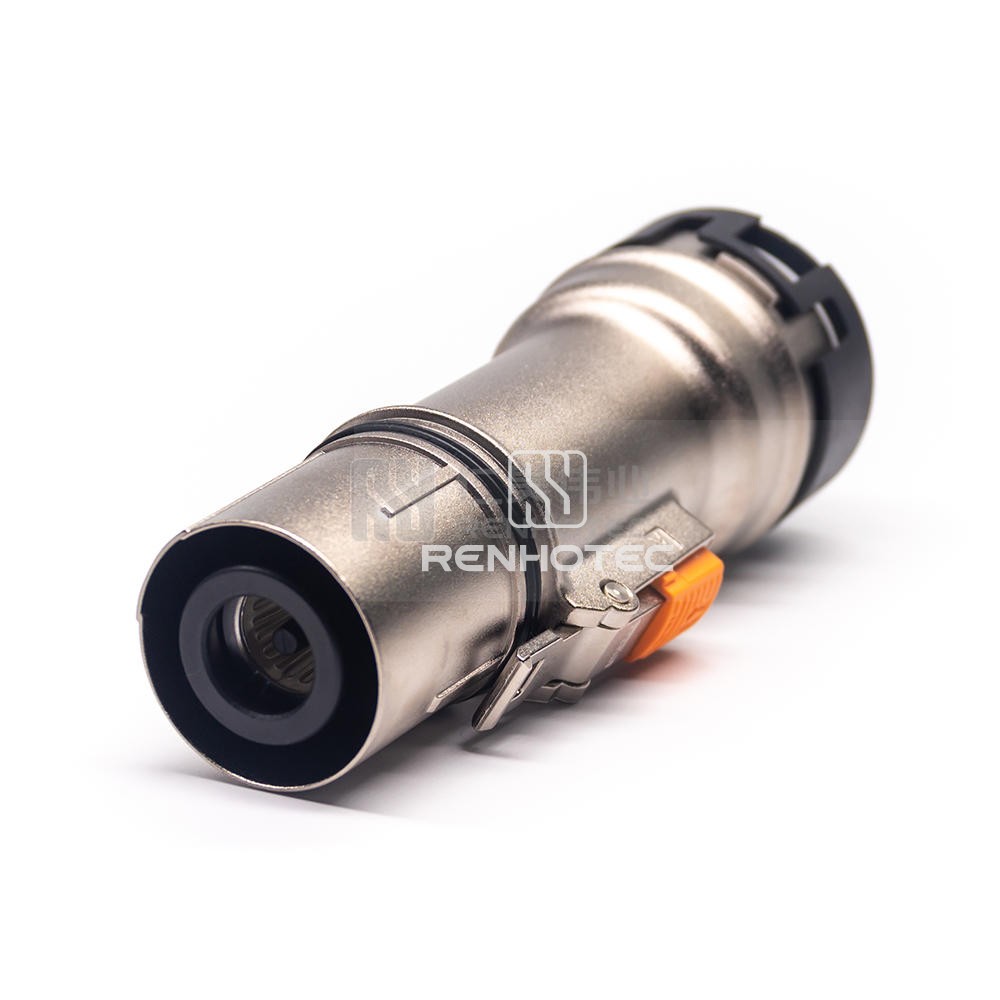

1 POS High Voltage Interlock Connector Metal Plug 250A 70mm2 Shielded Cable A Key Straight product image
1 POS High Voltage Interlock Connector Metal Plug 250A 70mm2 Shielded Cable A Key Straight product image

NI1-1-S120-1AYA-C11

1 POS High Voltage Interlock Connector Metal Plug 250A 70mm2 Shielded Cable A Key Straight

  • Technical data
  • Overview
  • Certification
  • Download
General
Connector TypePlug
Number of Positions1
KeyA
OrientationStraight
Contact Size12mm
Mounting TypeCable Type
Contact TerminationCrimp
Wire Gauge or Range70mm²
ColorSilver
FeaturesIntegrated Internal HVIL
Materials
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Electrical
Rated Voltage800V
Rated Current250A
ShieldingShielded
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0

Product certification

Product excerpt

High-quality 1 POS High Voltage Interlock Connector Metal Plug with 250A capacity and Shielded Cable for secure connections. Features a Straight A Key design for easy integration. Ideal for high voltage applications.
