Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Plug 350A 90mm² Shielded Cable Y Key Right Angle

NI1-1-B120-1YYB-C12

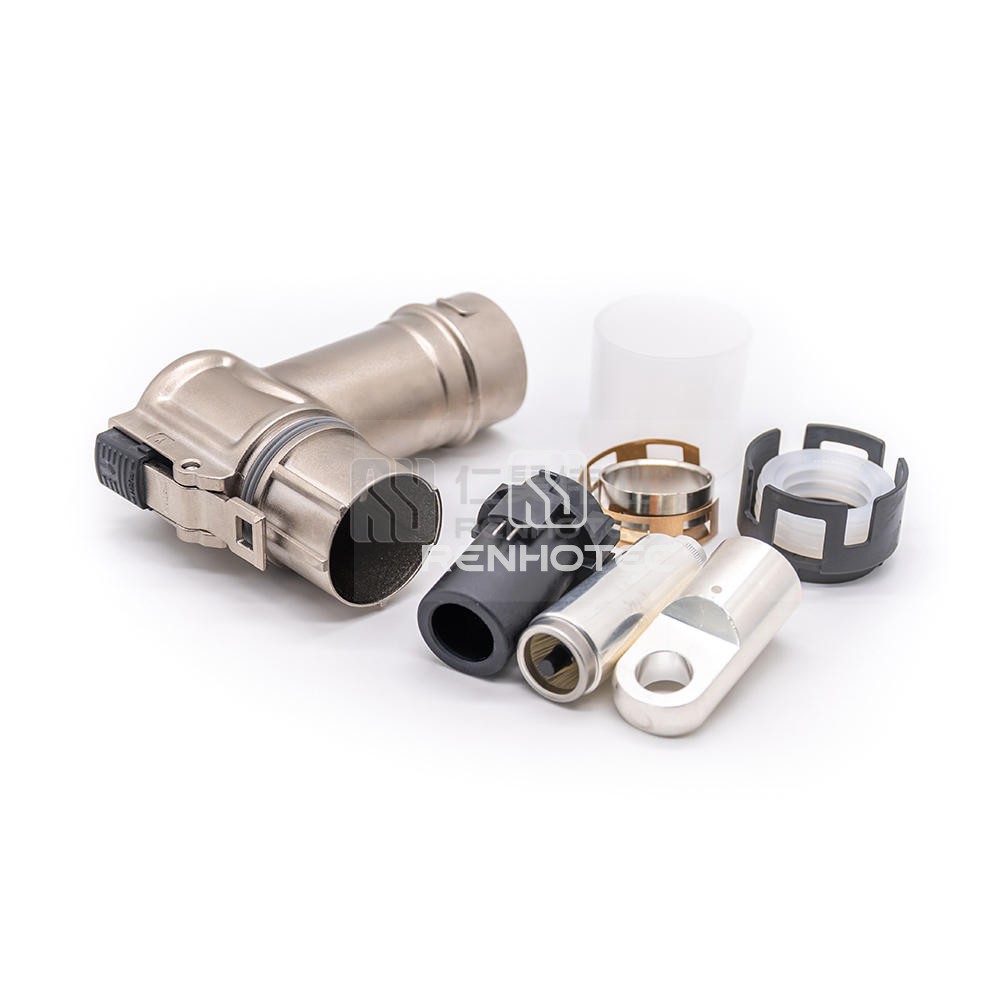

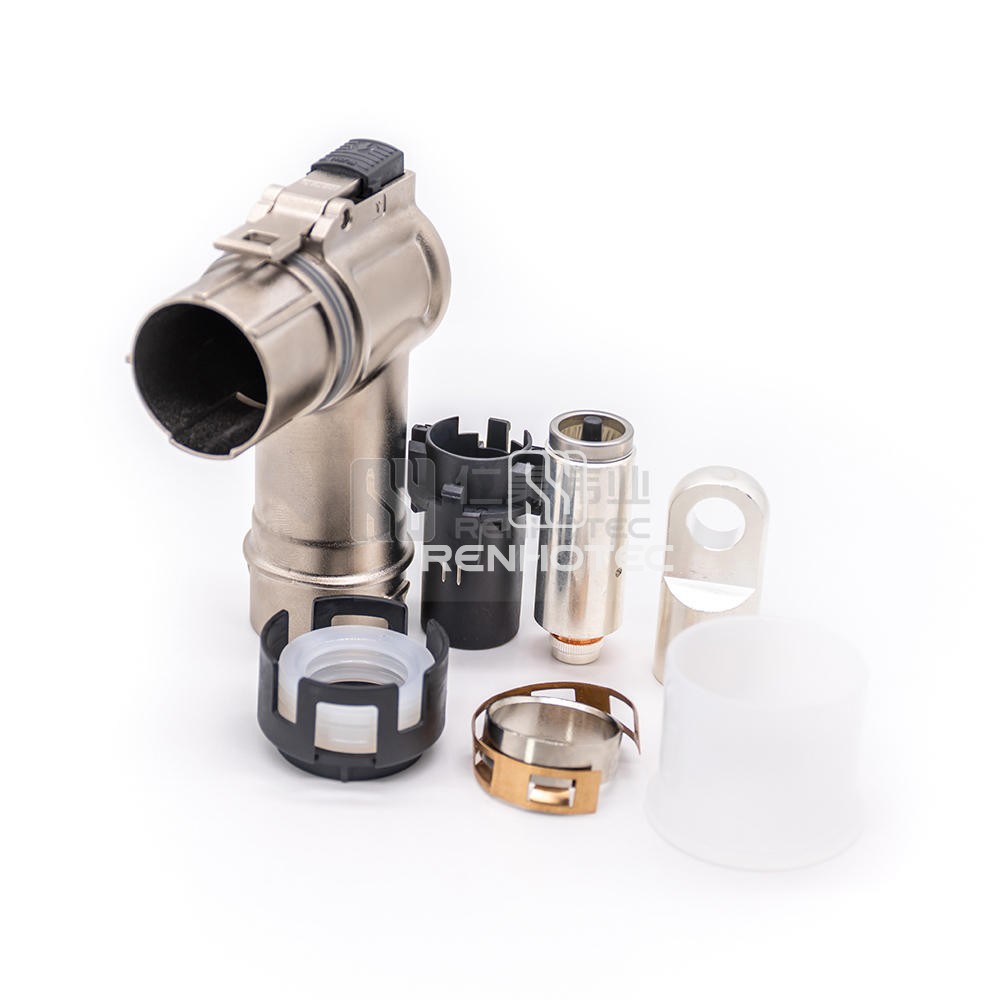

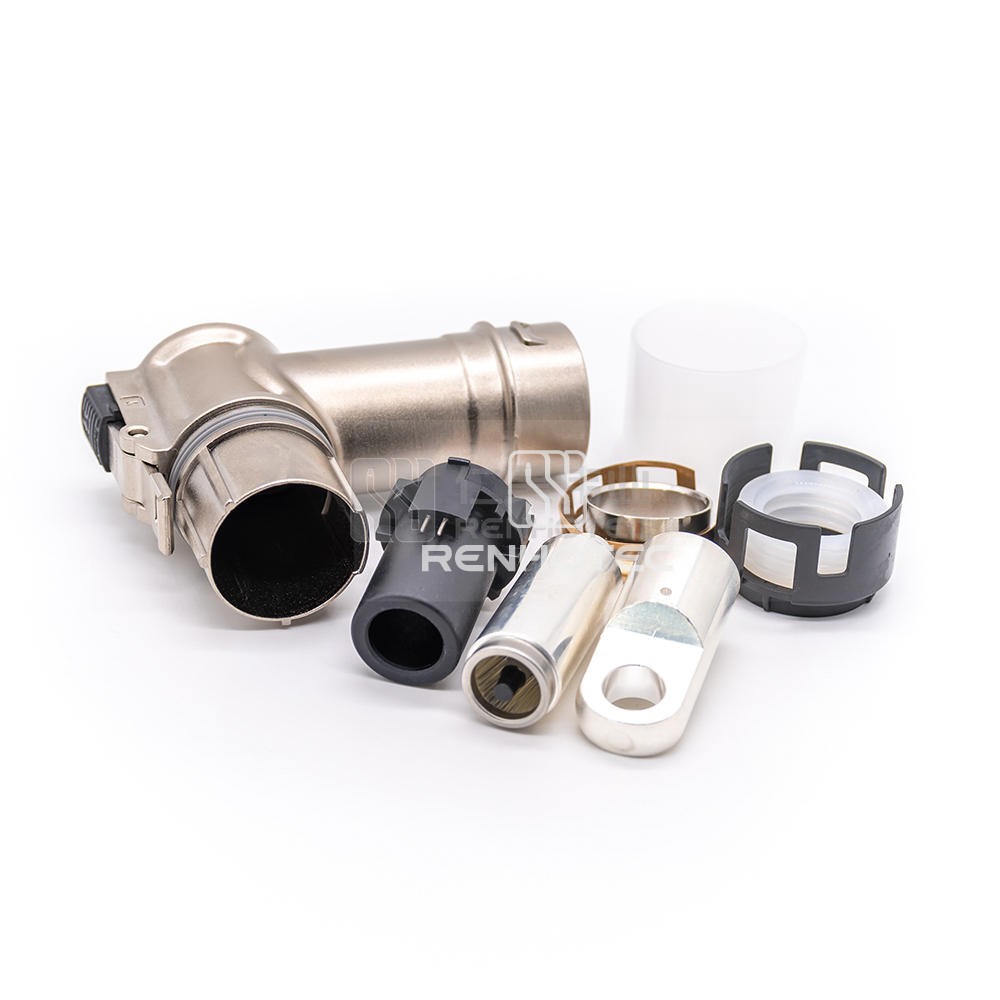

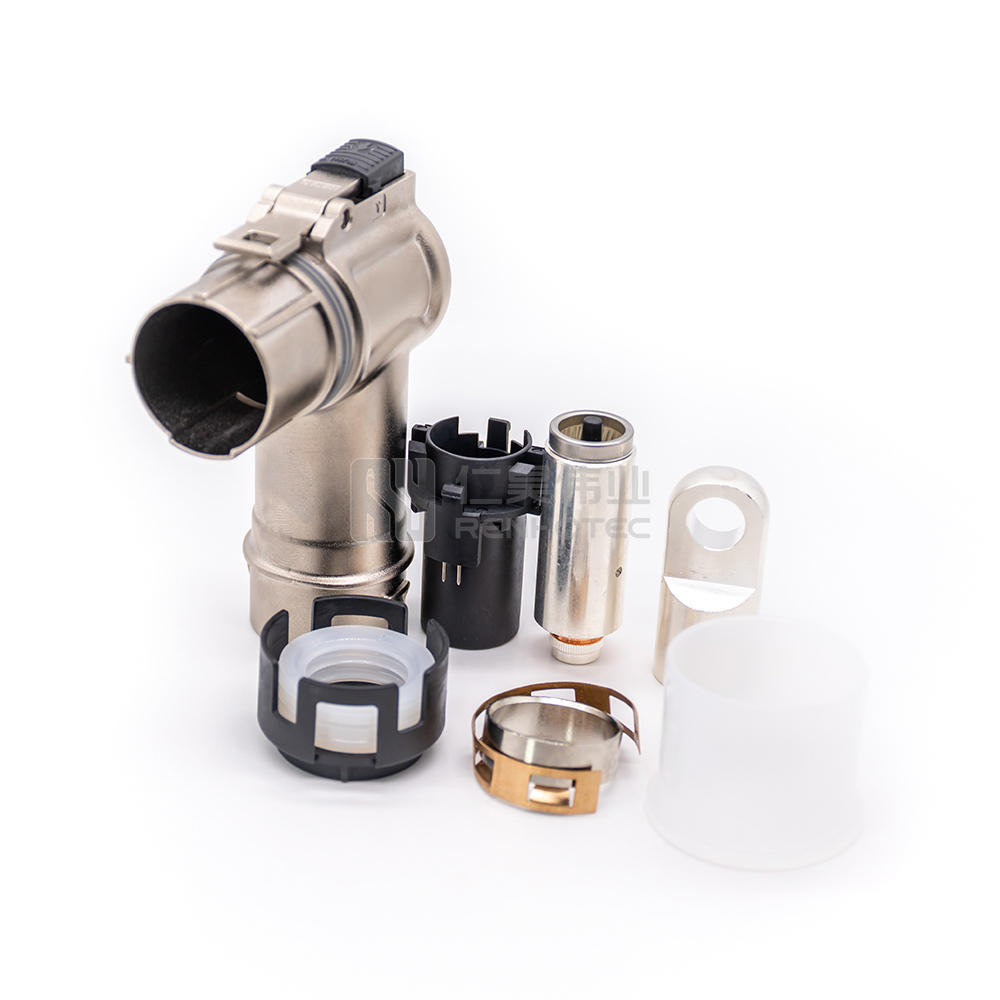

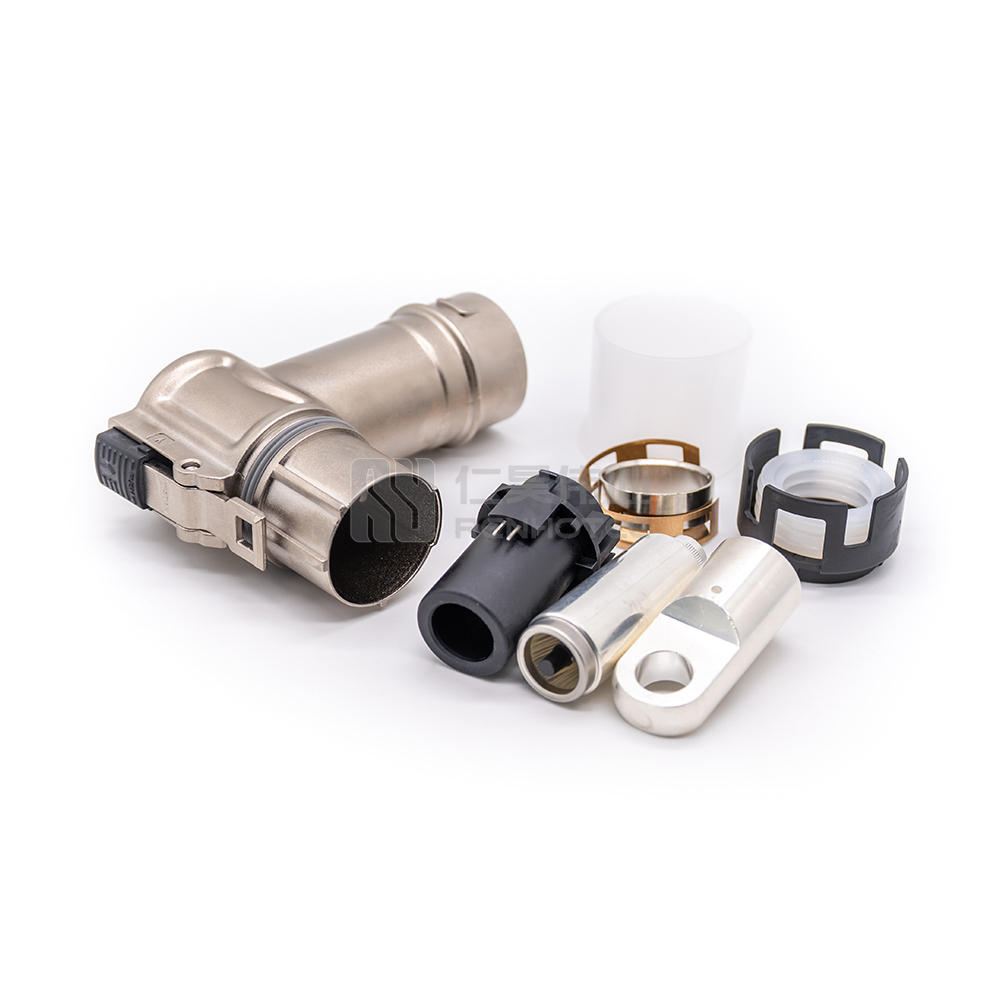

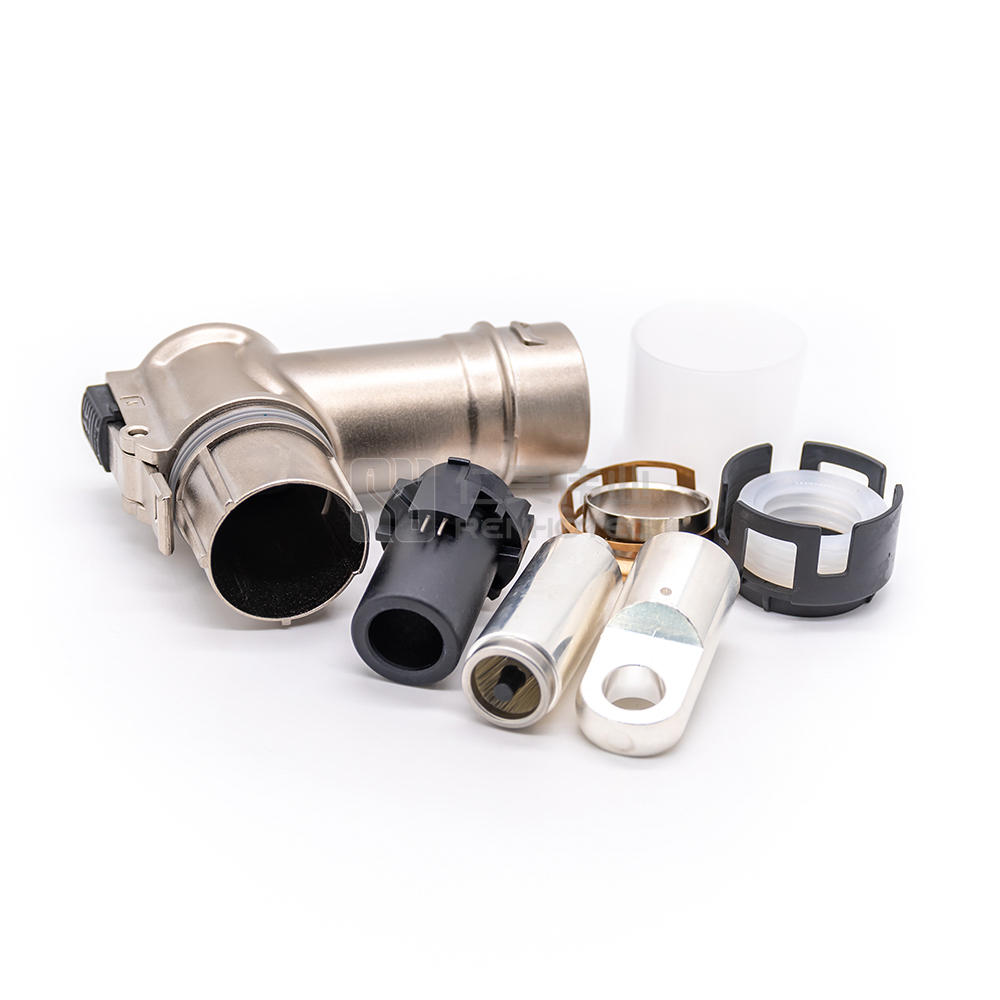

1 POS High Voltage Interlock Connector Metal Plug 350A 90mm² Shielded Cable Y Key Right Angle

Get reliable and secure high voltage connections with this 1 POS Metal Plug interlock connector. Featuring a 350A capacity, 90mm² shielded cable, and a convenient Y Key Right Angle design, this connector is ideal for high voltage applications requiring efficient power transmission while ensuring safety and reliability.

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size12mm
    Contact TerminationCrimp
    Mounting TypeCable Type
    KeyY
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current350A
    ShieldingShielded

    Mechanical

    Wire Gauge or Range95mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
