Products > HVIL Series Connector > 1 POS High Voltage Interlock Connector Metal Plug 400A 120mm2 Shielded Cable Y Key Right Angle

NI1-1-B140-1YYB-C13-1

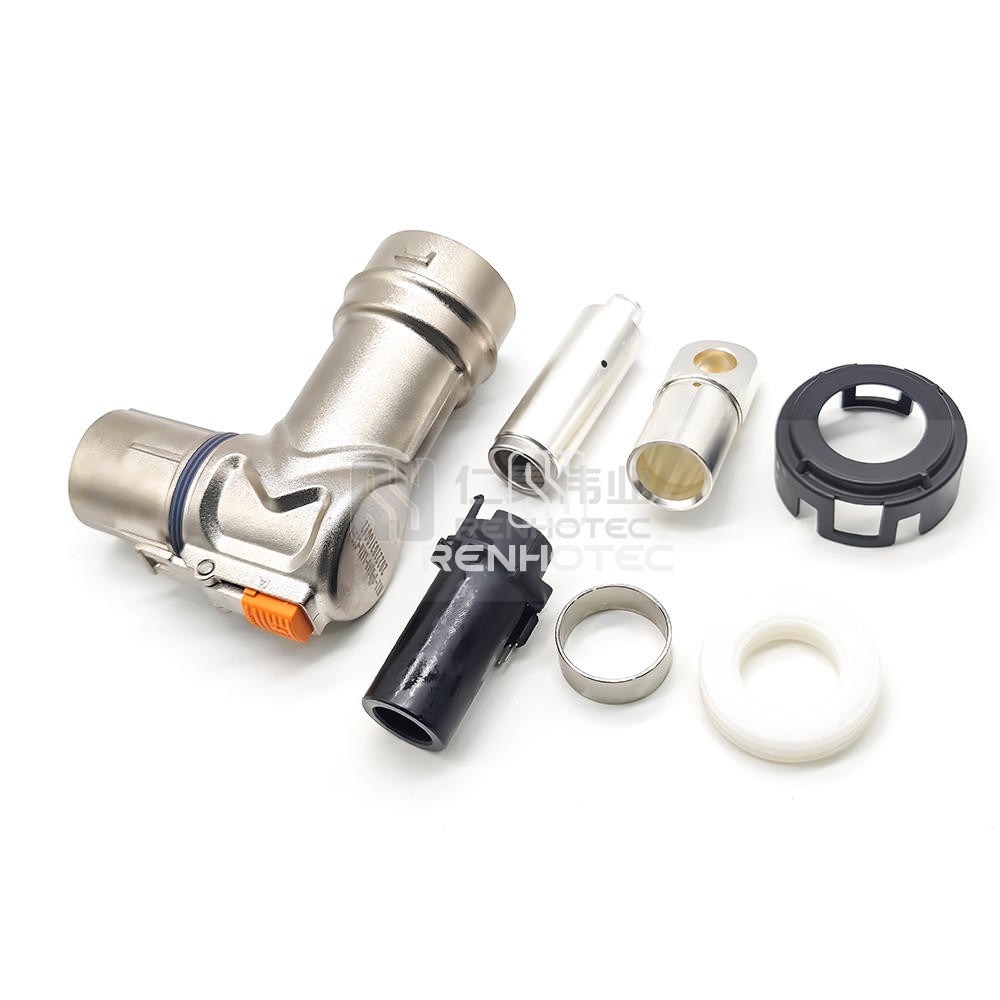

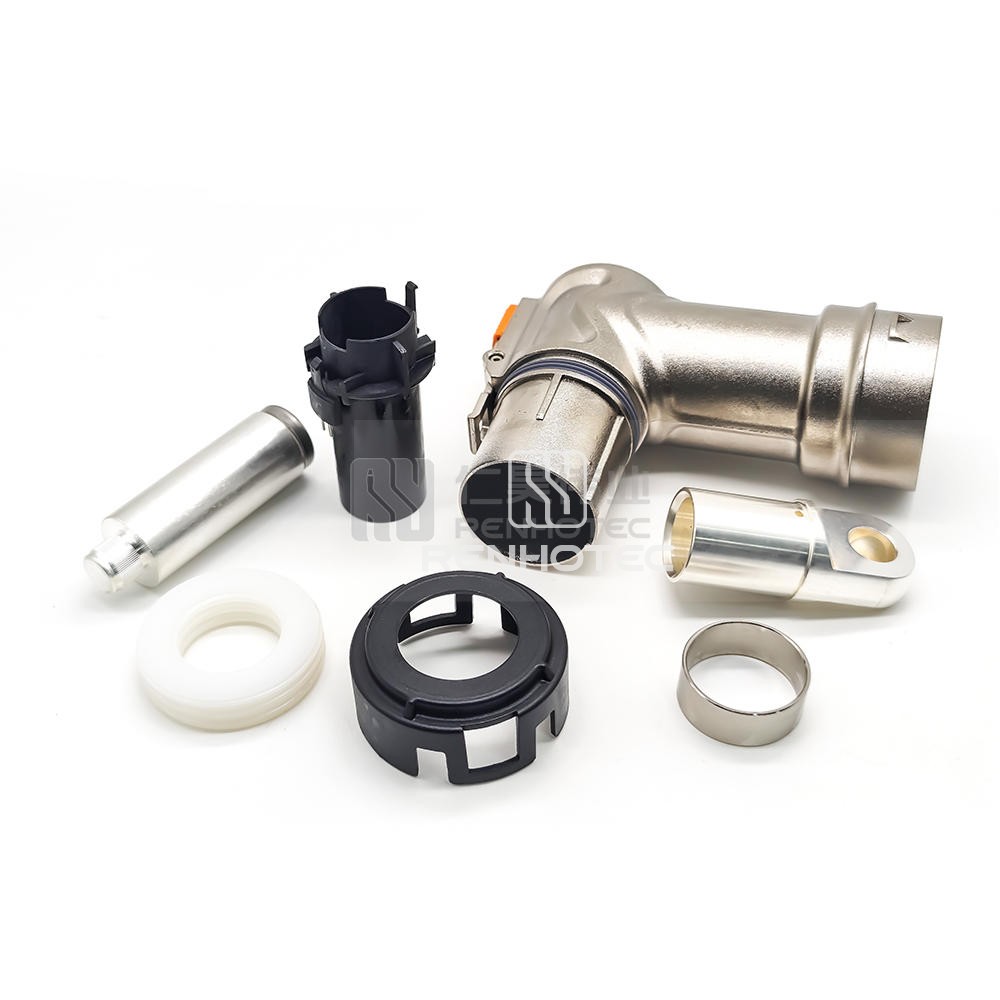

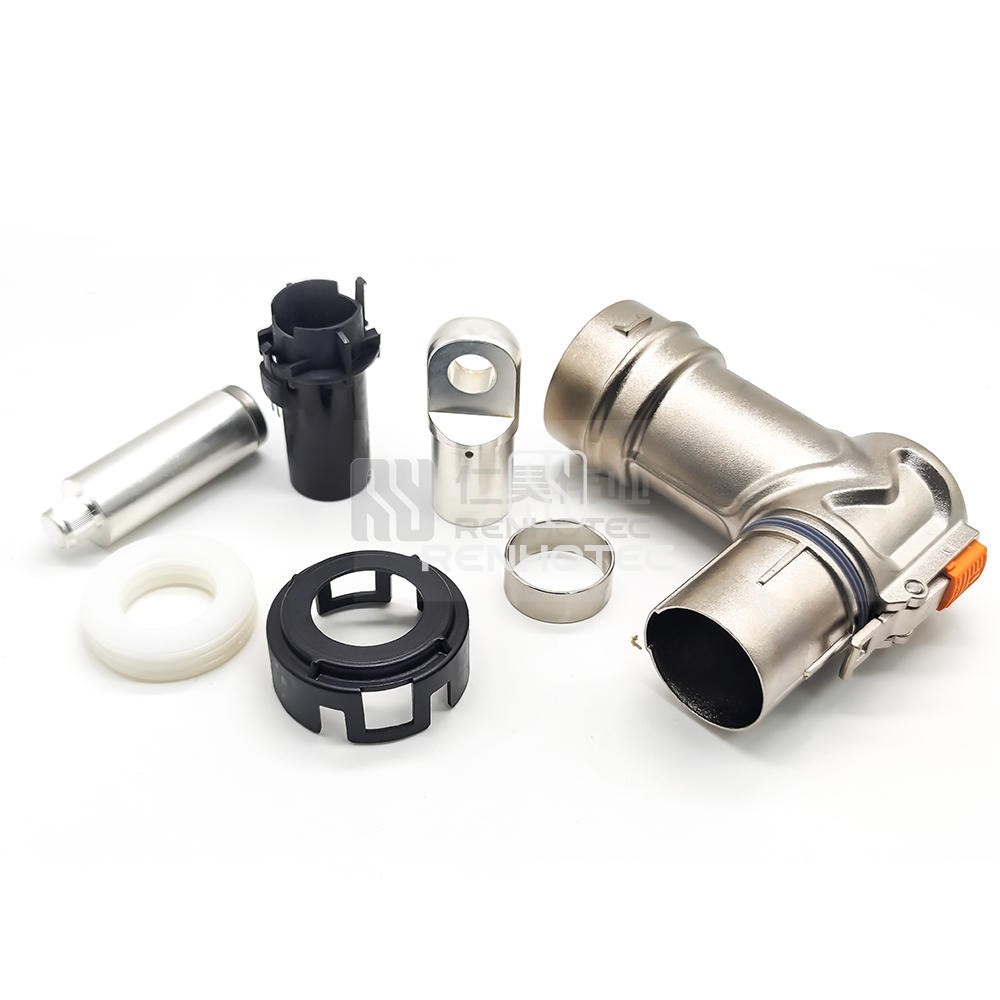

1 POS High Voltage Interlock Connector Metal Plug 400A 120mm2 Shielded Cable Y Key Right Angle

Compare

Product Type

Only 4 products can be compared at a time. Please select the product you want to replace.

    • Overview
    • Technical data
    • Catalog
    • Certificate

    Product certification

    ×

    This high voltage interlock connector features a metal plug suitable for 400A, 120mm² shielded cable with a Y key right angle design. Ideal for secure and efficient electrical connections in various applications.

    1. General
    2. Electrical
    3. Mechanical
    4. Material
    5. Environmental

    General

    Connector TypePlug
    OrientationRight Angle
    Number of Positions1
    Contact Size14mm
    Contact TerminationCrimp
    KeyY
    ColorSilver
    FeaturesIntegrated Internal HVIL

    Electrical

    Rated Voltage800V
    Rated Current400A
    ShieldingShielded

    Mechanical

    Mounting TypeCable Type
    Wire Gauge or Range120mm²

    Material

    Shell MaterialZinc Alloy
    Contact MaterialCopper Alloy
    Contact FinishNickel

    Environmental

    Ingress ProtectionIP67
    Operating Temperature-40°C ~ + 125°C
    FlammabilityUL94 V-0
